Definition of Servo Motor
What is a Servo Motor? A servo motor is a specialized electric motor that precisely controls angular or linear position, velocity, and acceleration. It operates within a closed-loop system. It uses feedback (typically from an encoder or resolver) to adjust and maintain the motor's output according to a specific command or target.
Servo motors are widely used in applications requiring accurate movement and positioning, such as robotics, CNC machines, and industrial automation systems, where high efficiency, rapid response, and precise control are essential.

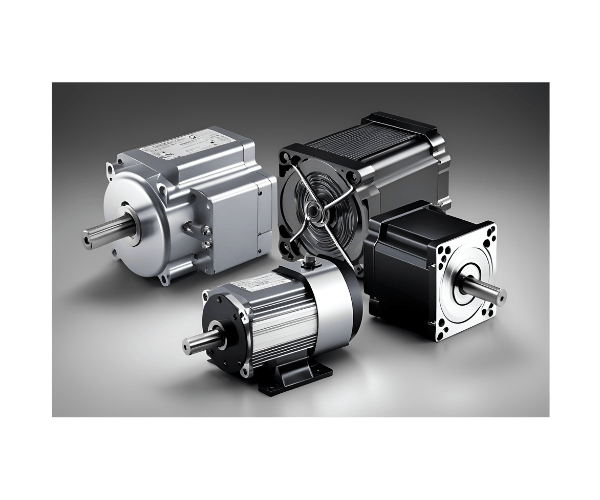

Types of Servo Motors
The primary differences among AC, DC, and brushless servo motors lie in their construction, control methods, and applications:
AC Servo Motors:
Operation: Use alternating current (AC) for operation.
Pros: High torque, efficient for continuous operation, durable, and suitable for high-speed applications.
Applications: Often used in industrial automation, CNC machines, and robotics where stability and endurance are required.
DC Servo Motors:
Operation: Powered by direct current (DC) and often feature brushes and a commutator for operation.
Pros: Simpler control, easy to start, and quick response time for small-scale and low-speed applications.
Cons: Prone to wear and maintenance issues due to brushes and commutator.
Applications: Common in small robotics, hobby projects, and devices requiring less demanding performance.
Brushless Servo Motors:
Operation: Similar to DC motors but use electronic commutation instead of brushes, making them more efficient and durable.
Pros: High efficiency, minimal maintenance, longer lifespan, and suitable for high-precision, high-speed, and high-torque applications.
Applications: Used in advanced robotics, aerospace, medical devices, and applications where high performance and longevity are essential.
Summary: AC servo motors are suited for high-power industrial applications, DC servo motors for simpler and low-power uses, and brushless motors offer a high-performance, low-maintenance option for precision and durability.
How Servo Motors Work
How does a servo motor work? A servo motor system includes several key components that work together to achieve precise control. Here’s an overview of the main parts:
Motor:
The core component that generates rotational or linear movement. Depending on the type (AC, DC, or brushless), the motor provides the necessary torque and speed for the application.
Controller:
The "brain" of the servo system, the controller sends signals to the motor to reach a specific position, speed, or torque. It interprets user inputs and commands, providing control signals to the driver or amplifier.
Driver or Amplifier:
This component regulates the power sent to the motor based on the controller's signals, ensuring that the motor responds accurately to changes in commands.
Feedback Mechanism (Sensor):
The feedback mechanism is crucial in maintaining accurate control in servo systems. It measures the motor’s current position, speed, or torque and sends this data back to the controller. Common feedback devices include:
Encoders: Measure the position and sometimes speed, offering high accuracy.
Resolvers: Durable, analog devices that track position and speed, often used in harsh environments.
Potentiometers: Provide basic position feedback for simpler, low-precision applications.
Communication Interface:
Enables the servo system to connect with other control devices, such as PLCs or computers, allowing integration within larger automation systems.
Applications
Servo motors are used in a wide range of applications where precise control of position, speed, and torque is essential. Here are some key areas:
Industrial Automation and Robotics:
Servo motors control robotic arms, assembly lines, and automated machinery. They provide precise positioning and movement, essential for tasks like welding, painting, packaging, and material handling.
CNC Machinery:
In CNC (Computer Numerical Control) machines, servo motors control the movement of cutting tools and workpieces, allowing for high accuracy in machining, milling, drilling, and cutting processes.
Aerospace and Defense:
Servo motors are used in flight control systems, missile guidance, and satellite positioning. Their accuracy and reliability are critical in applications where precision and safety are paramount.
Medical Equipment:
Medical devices such as MRI machines, surgical robots, and patient support systems use servo motors to achieve controlled, smooth, and precise movements.
Automobile Manufacturing and E-Vehicles:
Servo motors drive automated assembly lines in car manufacturing and are used in electric vehicle steering systems and other components, where precision and efficiency are crucial.
Consumer Electronics:
Servo motors power components like camera lenses (for focus control), DVD players, and other devices that require accurate movement in compact spaces.
Printing and Packaging:
In printing machines and packaging systems, servo motors help in synchronizing rollers, aligning materials, and controlling conveyor belts, ensuring speed and accuracy.
Renewable Energy Systems:
Servo motors are used in solar panel tracking systems, adjusting the panels’ angles to follow the sun and maximize energy capture.
Advantages and Limitations
Advantages of Servo Motors:
High Precision and Accuracy
Servo motors provide precise control of position, speed, and torque, making them ideal for applications requiring accurate movement.
Fast Response Time
They react quickly to control signals, allowing for rapid adjustments, essential in applications like robotics and CNC machines.
Efficiency
Servo motors are energy-efficient, as they only draw power when actively moving or adjusting, which reduces energy consumption and costs.
High Torque at Low Speeds
Servo motors can produce high torque even at low speeds, making them suitable for tasks that require powerful but controlled movement.
Closed-Loop Control
With built-in feedback mechanisms, servo motors continuously monitor and correct their output, ensuring consistent and stable performance.
Limitations of Servo Motors:
Cost
Servo motors are generally more expensive than standard motors due to their complex components and feedback systems.
Complexity in Setup
Setting up and tuning a servo motor system requires specialized knowledge and equipment, particularly in configuring the feedback system.
Potential for Instability
Incorrect tuning of servo parameters (like PID settings) can cause oscillations or instability, impacting performance.
Limited to Low to Medium Power Applications
While effective for precise control, servo motors may not be the best choice for very high-power applications where simpler motors might suffice.
Maintenance Requirements
Certain types, especially brushed servo motors, may require regular maintenance due to wear and tear on components like brushes.
Control Techniques
PWM (Pulse Width Modulation) Control:
In PWM control, a pulse signal modulates the amount of power sent to the motor. By varying the pulse width, the controller can regulate the speed and position of the servo motor. PWM is widely used due to its simplicity and efficiency, particularly in applications where smooth speed and positional control are required.
PID (Proportional-Integral-Derivative) Control:
PID control is a closed-loop feedback system that adjusts the motor's output to match the desired position or speed. The PID controller calculates an error value (the difference between the target and actual position) and applies corrective actions. By adjusting proportional, integral, and derivative gains, PID provides high accuracy and stability, making it ideal for applications requiring precision.
FOC (Field Oriented Control):
Also known as vector control, FOC is an advanced technique used mainly in AC and brushless DC servo motors. It controls the motor’s magnetic field orientation to optimize torque production, achieving smoother, more efficient operation, even at high speeds. FOC is commonly used in applications needing high-performance and energy-efficient operation.
Position Control:
In position control, the motor moves to a specific position as directed by a control signal. Feedback mechanisms (such as encoders) continuously monitor the position, and adjustments are made to minimize error. This technique is essential in robotics and CNC machines, where exact positioning is critical.
Torque Control:
Torque control regulates the output torque by adjusting the current supplied to the motor. It is commonly used in applications like robotic arms and electric vehicles, where maintaining consistent force or load is crucial.
Velocity Control:
Velocity control maintains a specific speed by adjusting the motor’s input power. Feedback is continuously monitored to ensure the motor runs at the target speed, useful in conveyor belts, fans, and other applications requiring steady motion.
Conclusion
In conclusion, servo motors are essential components in modern automation and control systems, offering unmatched precision, speed, and reliability. Their closed-loop feedback capabilities make them ideal for applications where accuracy is crucial, such as robotics, CNC machinery, medical devices, and aerospace. Although servo motors can be more costly and complex than other motor types, their advantages—like high torque at low speeds, energy efficiency, and quick response time—often outweigh these limitations in high-performance applications.
As technology advances, servo motors are likely to become even more efficient and versatile, further solidifying their role in industries focused on precision and automation. Overall, servo motors play a vital role in driving innovation and productivity across a diverse range of fields.
