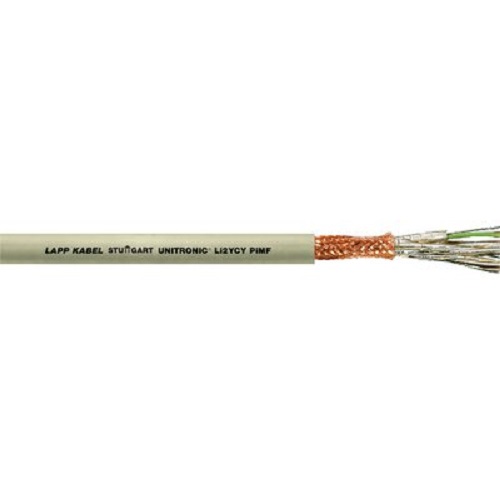

LAPP Kabel UNITRONIC® Li2YCY (TP) Part No. 0034061164

LAPP Kabel UNITRONIC® Li2YCY (TP) Part No. 0034061164

Conductor material: high-purity oxygen-free copper
Conductor structure: 7 bare copper wires, cross-sectional area 0.5 mm²
Number of conductor pairs: 3 pairs
Insulation material: Polyethylene (PE)
Core identification: in accordance with DIN 47100 standard
Twisted pair structure: each pair of core wires is twisted
Rated voltage: 660V AC
Temperature range: -40° to +80°
Cable outer diameter: 10.2mm
Bending radius: static: 10×outer diameter, dynamic: 20×outer diameter
Characteristic impedance: about 85 ohms (>1MHz)
Test voltage: core/core: 2000V; Core/shield: 1000V
Certification standards: CE, UKCA, EAC
Warranty: 90-day
MOQ: 10

Description

Product Description: UNITRONIC® Li2YCY PiMF is a low-frequency, low-capacitance shielded PVC data cable with PE core pairs in accordance with DIN 47100, each pair of cores has a metal foil shield, suitable for RS422/RS485 interface wiring

Applicable scenarios:

- Data system and control wiring: Especially suitable for data system and control wiring in large industrial facilities.

- High electrical interference environment: Suitable for occasions with high requirements for near-end crosstalk attenuation and high electrical interference in the circuit.

- Measurement value transmission and serial 2-wire interface: Suitable for measurement value transmission and serial 2-wire interface.

- Multifunctional electronic equipment: Can be widely used in computer system electronic equipment, electronic control equipment, office equipment, weighing instruments, etc.

- Installation environment: Suitable for limited flexible use and fixed installation in dry or humid indoor environments.
