Inovance EA38H8-B23M16-TH5N3R1 Motor Encoder, Incremental Rotary Encoder Wholesaler China

Outer diameter Ø38, hollow shaft Ø8 gauge
The encoder can be configured and data monitored.
Output mode: Modbus-RTU
Bidirectional asynchronous serial communication specifications, single-turn resolution 11 bits (expandable to 16 bits), multi-turn resolution 10 bits (expandable to 16 bits) Warranty: 1-year
MOQ: 1

Outer diameter (mm): 38

Resolution (CPR): 2048

Output signal type: incremental signal, supports differential output (compatible with RS422)

Operating voltage range (V): 5±0.5

Interface type: plug interface

Number of channels: 3 channels (A, B, Z)

Operating temperature range (℃): -20 to 85

Protection level: IP54

Cable length (m): 3

Signal mode: differential signal output, strong anti-interference ability

Reverse rotation identification function: supports reverse rotation encoding

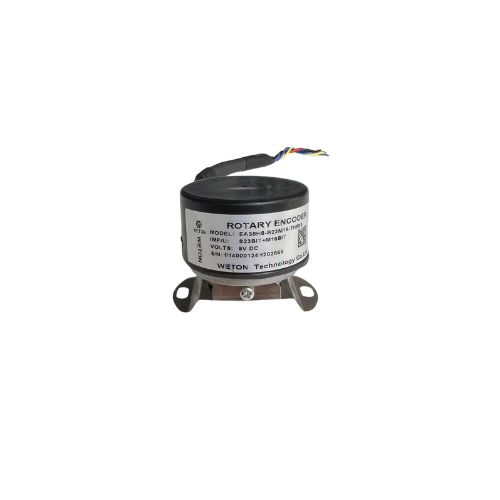

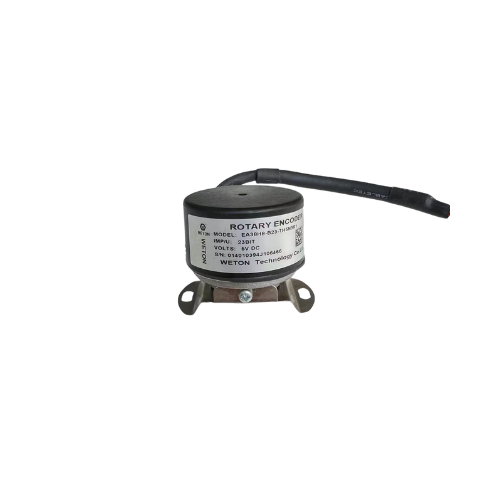

Inovance servo motor encoder EA38H8-B23M16-TH5N3R1
