Type: Servo feedback encoder
Interface: HIPERFACE®
Number of sine/cosine periods per revolution: 16
Absolute number of measurable revolutions: 4096
Maximum number of steps per revolution: 512 (via RS 485)
Total number of steps: 2,097,152
Measuring step: 20″ (sine/cosine signals subdivided into 12 bits)
Integral nonlinearity: ±288″ (error limit for estimating sine/cosine signals)
Supply voltage: 7 – 12 V
Operating temperature range: -20°C to +115°C
Protection class: IP40
Insulation resistance: ≥ 10 MΩ (at 500 V DC)
Vibration immunity: 100 m/s² (10 Hz to 2,000 Hz, in accordance with EN 60068-2-6)
Shock immunity: 1,000 m/s² (6 ms, in accordance with EN 60068-2-27 standard)
Electromagnetic compatibility: in accordance with EN 61000-6-2 and EN 61000-6-3 standards
Weight: approx. 0.1 kg
MOQ: 1

Description

Application scenarios:

- Industrial automation: used to precisely control the movement of robotic arms, CNC machine tools, and other equipment.

- Robotics: provide precise position feedback for robot joints to ensure the accuracy of movement.

- Packaging machinery: monitor and control the position and speed during the packaging process to improve production efficiency.

- Printing machinery: ensure precise alignment and speed control during the printing process.

- Textile machinery: control the movement of textile equipment to ensure product quality and production efficiency.

Product Description:

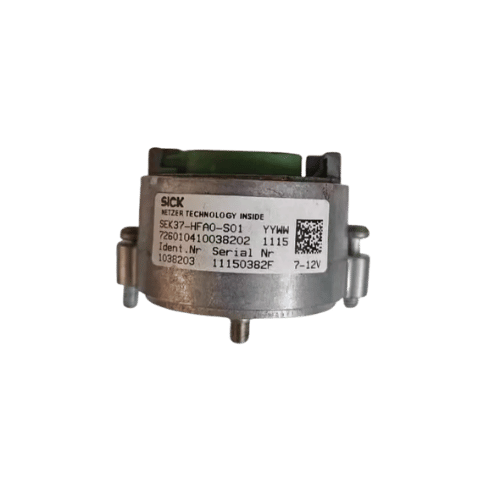

The SEK37-HFA0-S01 is a servo feedback encoder with a HIPERFACE® interface that provides 16 sine/cosine cycles and 4,096 measurable absolute revolutions for high-precision position and velocity feedback. Its compact design with an outer diameter of 38 mm makes it suitable for space-constrained applications.
