Inovance PLC Module H3U-3232MT, New Original Programmable Logic Controller Wholesaler China

Model: H3U-3232MT
Working voltage: 380(V)
Output frequency: 67(kHz)
Axis capacity: maximum 16 axes (CANlink or CANOpen axes) + 5 pulse axes + 4 GL10-4PM expansions (or 4 GL10-2PH)
Communication interface: Ethernet, CAN, RS485 (1 channel), RS422 (1 channel), USB
CAN communication: supports CANLink, CANOpen axis control instructions
Program capacity: 64K
Data capacity: 48K
Power-off storage capacity: 40K
Basic instruction speed: logic instruction 100ns, floating point operation: 4us
High-speed input: 200K (8 channels)
High-speed output: 200 (5 channels), supports S-type acceleration and deceleration (MR does not support high-speed output)
System time: supported
Interpolation: two-axis arc, two-axis straight line
Electronic cam: no longer pushed (H3U cam is no longer maintained, use H5U to realize cam function)
Terminal mode: screw terminal, removable
Local module expansion: supports local expansion IO maximum points: 512 points
Warranty: 1-year
MOQ: 1

Description

l H3U series PLC is the third generation of high-performance small PLC developed by Inovance Technology. It adopts MCU+FPGA architecture and has a high-speed input frequency of up to 8*200kHz;

l Supports more and faster high-speed pulse output ports, with high-speed output frequency up to 5*200kHz, supports S-curve acceleration and deceleration, and supports multiple positioning methods, such as interrupt positioning, multi-speed positioning, etc.

l In addition, the motion control model supports 3*500kHz high-speed differential output, supporting two-axis linear interpolation, two-axis arc interpolation, three-axis linear interpolation, helical interpolation, etc. The main module product comes with Ethernet communication to achieve seamless integration of automation and informatization.

l Comes with CAN communication, supports CANlink, and CANopen bus, and can be easily networked through graphical configuration configuration

l Supports USB communication for quick debugging

l This product uses the advanced programming environment AutoShop, which supports ladder diagrams, instruction lists, step ladder diagrams (SFC), and other programming languages. The user program supports up to 64k

l Supports up to 40k words of power-down storage components, data and user programs are stored in Flash, no battery maintenance required; provides richer debugging methods such as online modification and oscilloscope functions

l This product is suitable for the automation equipment industry, mainly used in production line automation, woodworking machinery, glass machinery, handling, loading and unloading, electronic non-standard, etc.

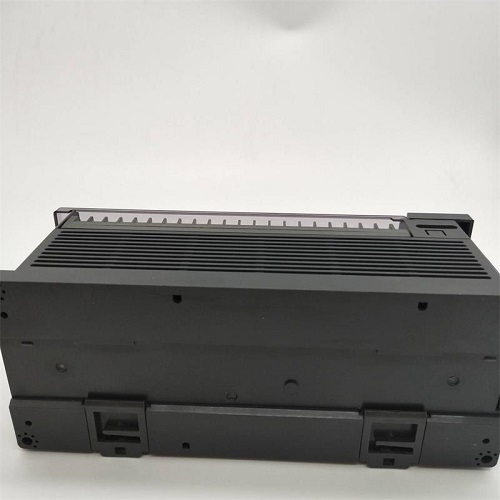

Inovance PLC module H3U-3232MT
