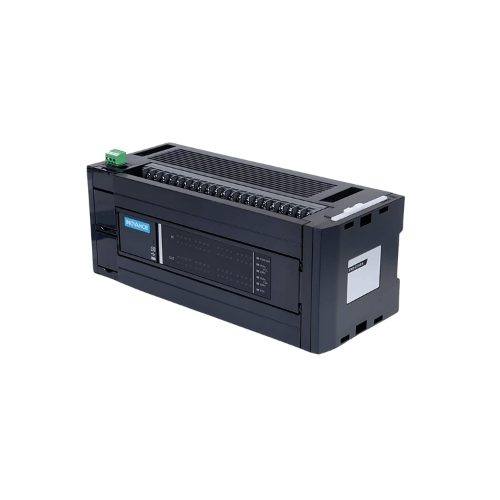

Inovance PLC Module H3U-3624MR, New Original Programmable Logic Controller Wholesaler China

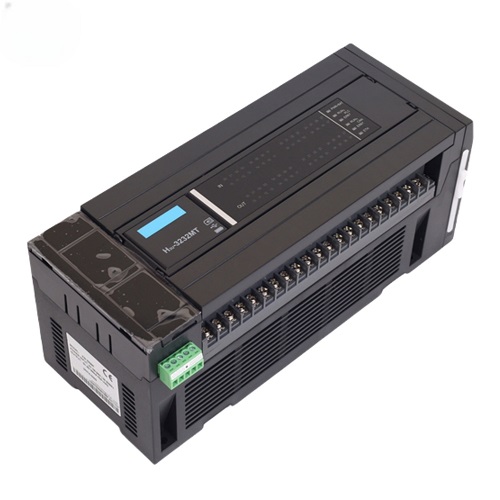

Model: H3U-3232MT
Working voltage: AC220(V)
Output frequency: 200(kHz)
Input points: 36 points (relay input)
Output points: 24 points (relay output)
Communication interface: Ethernet, CAN, RS485 (1 channel), RS422 (1 channel), USB
CAN communication: support CANLink, CANOpen axis control instructions
Program capacity: 32K
Data capacity: 20K
Power-off storage capacity: 10K
Basic instruction speed: logical instruction 150ns
High-speed input: 200K
High-speed output: 200 (5 channels)
System time: support
Interpolation: two-axis arc, two-axis straight line
Electronic cam: no longer pushed (H3U cam is no longer maintained, use H5U to realize cam function)
Terminal mode: screw terminal, detachable
Local module expansion: support local expansion IO maximum points: 512 points
Warranty: 1-year
MOQ: 1

Description

H3U series PLC is the third generation of high-performance small PLC developed by Inovance Technology. It adopts MCU+FPGA architecture and has a high-speed input frequency of up to 8*200kHz;

Supports more and faster high-speed pulse output ports, with high-speed output frequency up to 5*200kHz, supports S-curve acceleration and deceleration, and supports multiple positioning methods, such as interrupt positioning, multi-speed positioning, etc.

In addition, the motion control model supports 3*500kHz high-speed differential output, two-axis linear interpolation, two-axis arc interpolation, three-axis linear interpolation, helical interpolation, etc. The main module product comes with Ethernet communication to achieve seamless integration of automation and informatization.

Comes with CAN communication, supports CANlink, and CANopen bus, and can be easily networked through graphical configuration configuration

Supports USB communication for quick debugging

This product uses the advanced programming environment AutoShop, which supports ladder diagrams, instruction lists, step ladder diagrams (SFC), and other programming languages. The user program supports up to 64k

Supports up to 40k words of power-down storage components, data and user programs are stored in Flash, no battery maintenance required; provides richer debugging methods such as online modification and oscilloscope functions

This product is suitable for the automation equipment industry, mainly used in production line automation, woodworking machinery, glass machinery, handling, loading and unloading, electronic non-standard, etc.
