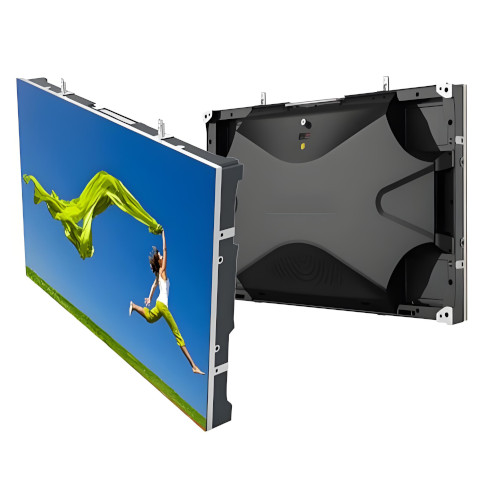

Utile Series LED Display Screen in renting style

Utile Series LED Display Screen in renting style

Ultra-thin & ultra-light

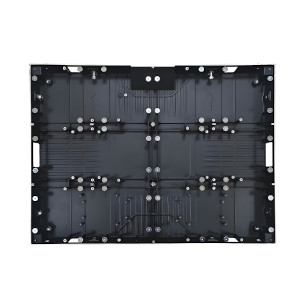

Cast-aluminum structure，high precision with seamless splicing
Standard cabinet: 500mm*500mm, convenient for area computation
Highly effective & quick for transportation and screen assembling
SMD black light，big view angle，high-contrast（5000:1），soft image
Special buckles structural connection between the cabinets，don’t need other tools
Cabinets are in common use for standard modules，shorten production cycle

Product Basic Technical Parameters
Product type:  YW-R3   YW-R4 YW-R5A  YW-R5B YW-R6A YW-R6B
Pixel pitch（mm): 3.9 4.8 5.2 5.68 6.25 6.94
Brightness( cd/m2 ):1200 1300 1200 1200 1100 800
LED  type :SMD2121 SMD3528（black light） SMD3528（black light） SMD3528（black light） SMD3528（black light） SMD3528（black light）
Contrast  ratio: 5000:1
Color temperature: 6500K
Pixel composition: 1R1G1B
View angle: 120:100
Main technical Parameter
Cabinet Resolution: 128×128 104×104 96×96 88×88 80×80 72×72
Refresh rate: ≥1000Hz ≥1000Hz ≥1000Hz ≥1000Hz ≥1000Hz ≥1000Hz
Power（MAX/AVG）/cabinet: 165W/55W 195W /65W 180W/60W 180W/60W 165W/55W 150W/50W
Module size(mm): 250×250 500×250
Cabinet size(mm): 500×500
Weight(Kg): 8.5
Area( m2 ): 0.25
Aspect Ratio: 1:1
Gray grade: 14bit
Protection grade: IP30
Working temperature and humidity: 0℃~+45℃/10~90%RH
Storing temperature and humidity: -40℃~+60℃/10~90%RH
Installation: Hanging installation/Ground installation
Brightness control: Manual/Automatic
Video frame rate: 50/60Hz
Input voltage: 100~240VAC
Input power frequency: 47~63Hz
LED wavelength: R:620~630nm G:520~535nm B:465~475nm
Input signal: S-VIDEO,CVBS,YPbPr,RGB,VGA,DVI,HDMI,HDSDI & DisplayPort,etc
Communication connection: CAT5 Cable )( L≤140m )； multi-mode fiber  ( L≤500m )； single mode fiber: ( L≤20km )
Mean free error time: ≥5000hours
Service life: ≥100,000hours
Malfunction dot rate: ＜0.1‰
Statement：Parameter is only for reference，We reserve the right to change specifications，if there is a change，without prior notice.
