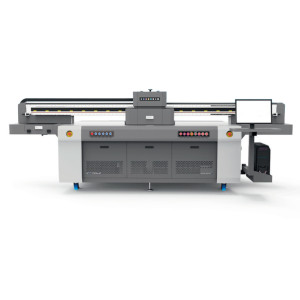

AMO UV Flatbed Inkjet Printer AM2513UVB4K24i with 4 pieces Konica KM1024i Printheads

AMO UV Flatbed Inkjet Printer AM2513UVB4K24i with 4 pieces Konica KM1024i Printheads

1. Equipped with 4 pcs  Konica KM1024i
2. Equipped with a silent linear guide rail and slider, and a high-precision motor
3. Automatic high-precision height measuring device. Equipped with an anti-collision device for the printhead in 2 sides;
4. One-button automatic positioning function equipped for easier print to  board of larger size,  more convenient and easy to operate by one person;
5. High power electrostatic eliminator, effectively eliminate static electricity on the printing materials, eliminate static electricity caused by flying ink, or un-clearance in printing.
6. Printhead automatic flash spraying function, in standby state, the nozzles of printhead will spray every 2 hours automatically , to avoid the nozzles drying;
7. Secondary cartridge constant temperature heating function, white ink inner circulation function, prevent white ink precipitation, improve ink fluency, reduce the posibility of clogging;
8. A manual mechanical valve switch prevents ink from refluxing when the device is turned off, thereby saving more ink;
9.3-4.5Kw high power strong turbine suction fan, equipped with silencer,offer strong sucking power and lisent environment

Machine parameters
Maximum Print Width: 250 cm* 130 cm
Print Height: 150mm to 300mm Customizable
Print Head: 4 pieces  Konica KM1024i Printheads
Printing speed:   12-45m²/h
Material: It can print almost any flatbed materials ,three-dimensional,concave and convex soft and hard materials. For example:
acrylic board, metal plate, glass ,wood plate ,ceramic floorcardboard, plastic leather, textile cloth ,etc
wallpaper ,PC/PE/PVC
Power: AC220/110±10.50HZ~60HZ,4500W/6000W
Machine Size / Packing Size: L4100mm*W2060mm*H1400mmL / 4360mm*W2120mm*H1610mm
Net/ Gross Weight 1550kg/1670kg
