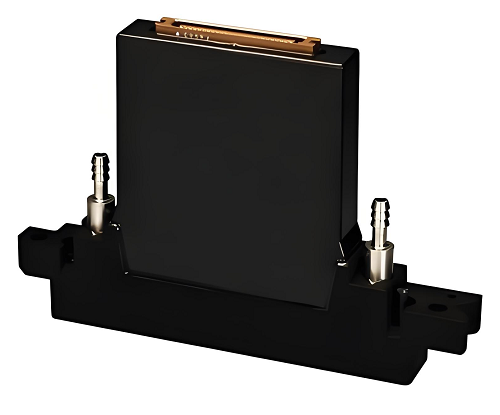

Konica Minolta KM1024 MNB 14PL Printhead

fqchao

Konica Minolta KM1024 MNB 14PL Printhead

  • Product Name: KM1024MNB KM1024MHB
  • Drive Mode: On-Demand Piezo Electric(Shared Wall 3 Cycle)
  • Nozzle Resolution: 180 dpi x 2 rows = 360dpi
  • Nozzle Number: 512 nozzles x 2 rows = 1024
  • Nozzle Spacing: 70.5μm = (141μm 2 rows)
  • Drop Volume: 14 pl
  • Firing Frequency: 12.8kHz
  • Print Width: 72mm
  • Dimensions: W131mm x D18mm x H89mm
  • Solvent Ink: OK
  • UV ink: OK OK
  • Oil ink: OK OK
  • Max. Drops in Greyscale: 8drops
  • Integrated Heater (H): Available
  • $1,350

Description:

The Konica Minolta KM1024 MNB Print Head is a robust, shear mode, piezo on-demand print head that is usable in both binary and 8 level greyscale mode, providing variable drop size and higher print quality without the use of additional print heads. The Konica Minolta KM1024 MNB print head is a vast improvement over the KM512 print head series, offering twice the print width and double the level of greyscale. Konica Minolta piezo on-demand inkjet heads are driven using lower voltages than other inkjet heads and the new actuator used in the KM1024 reduces power consumption even further. The Konica Minolta KM1024 MNB print head has 1024 nozzles with a droplet size of 14 pl and a native resolution of 360 dpi. The print head is compatible with oil based and solvent inks. This is Konica original print head and it includes the Head ID and the necessary waveform information.

To be used with:

Agfa :Anapurna M1600 / :Anapurna M² / :Anapurna M2050 / :Anapurna M2540 FB , Allwin C8, DGI VE-3206, Dilli Neo Titan FB2513-06DW / Neo Titan UVT-1604D

Remarks:

Original

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.


Works for the following Inkjet Printers:

Anapurna M1600 Anapurna M² Anapurna M2050 Anapurna M2540 FB

Allwin C8

DGI VE-3206

Dilli Neo Titan FB2513-06DW / Neo Titan UVT-1604D

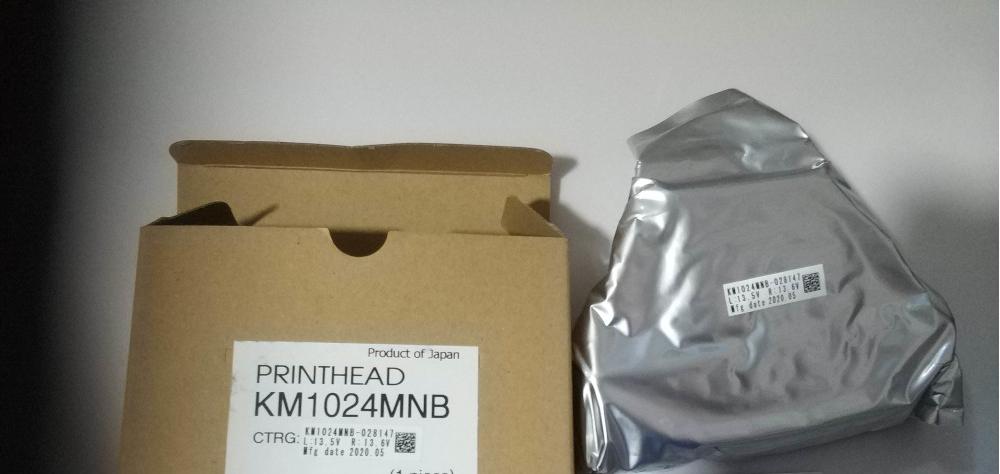

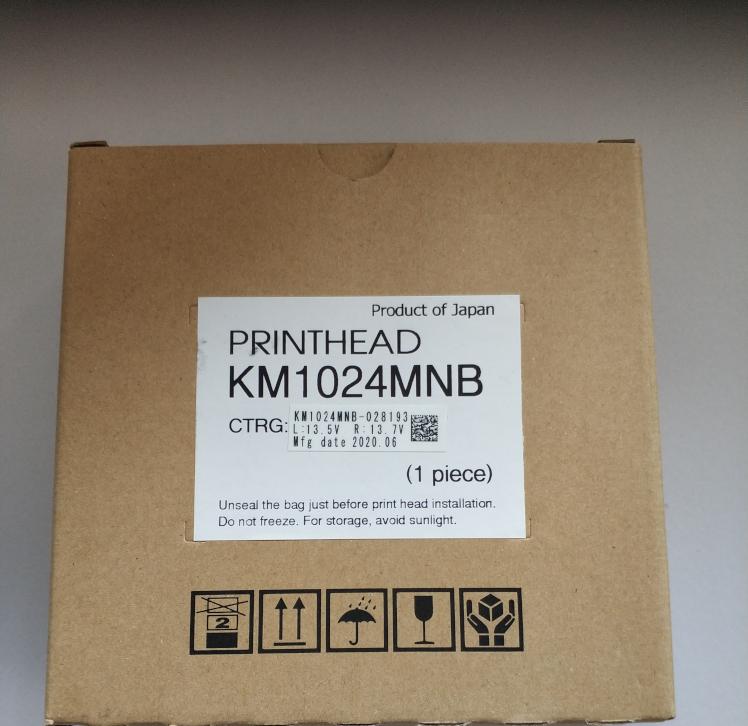

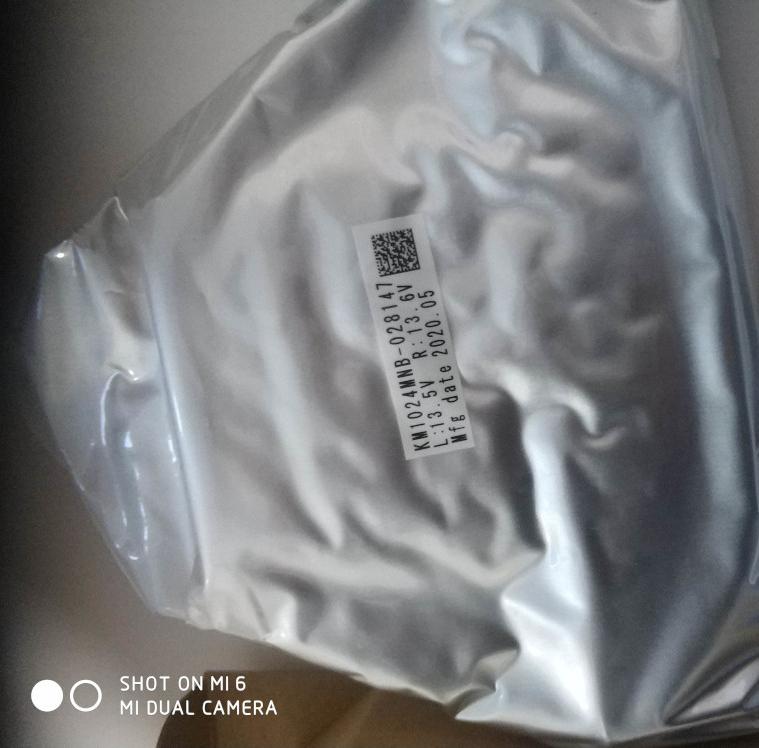

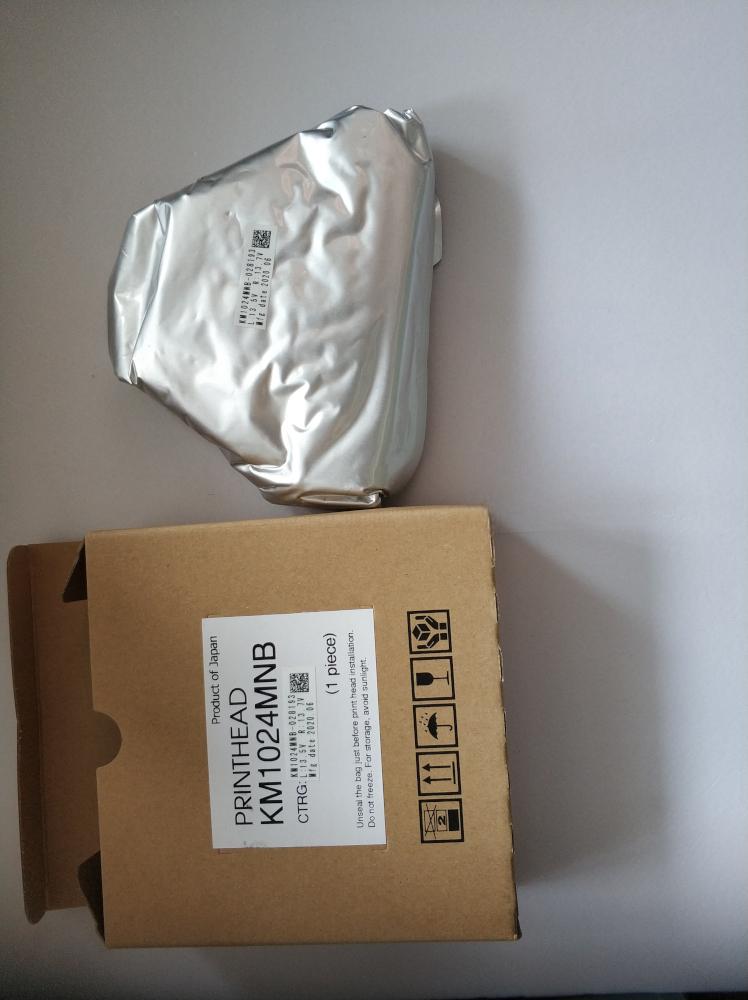

Photo about the packing and the detail of this printhead from our Delivery records:

Konica Minolta KM1024 MNB 14PL Printhead

Konica Minolta KM1024 MNB 14PL Printhead

Konica Minolta KM1024 MNB 14PL Printhead

Konica Minolta KM1024 MNB 14PL Printhead

Konica Minolta KM1024 MNB 14PL Printhead
