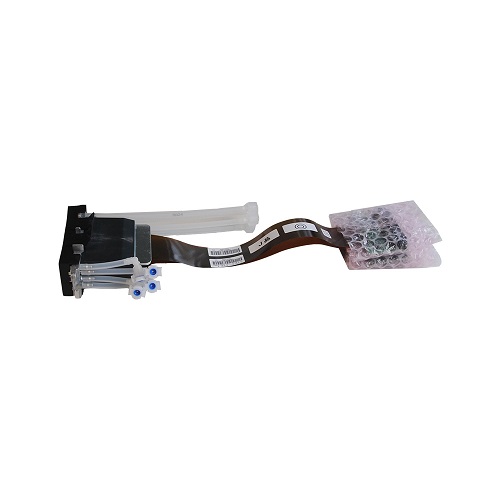

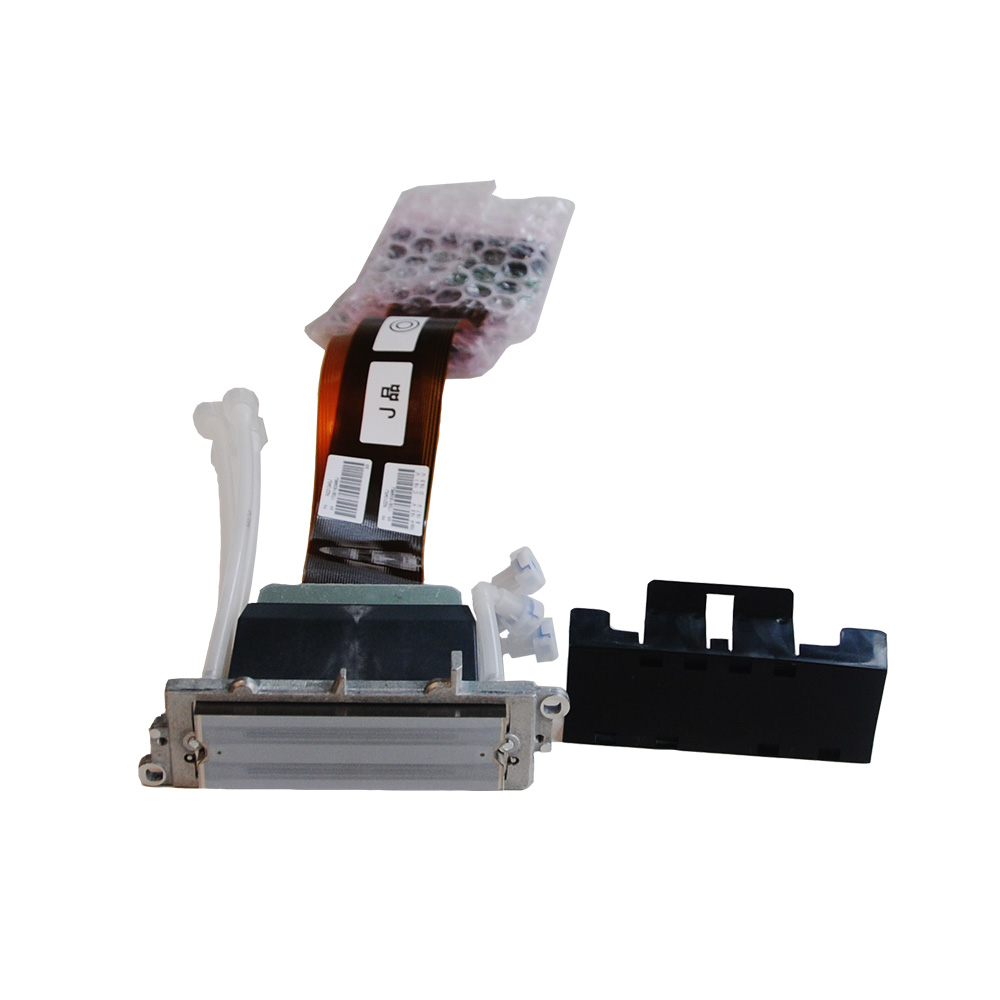

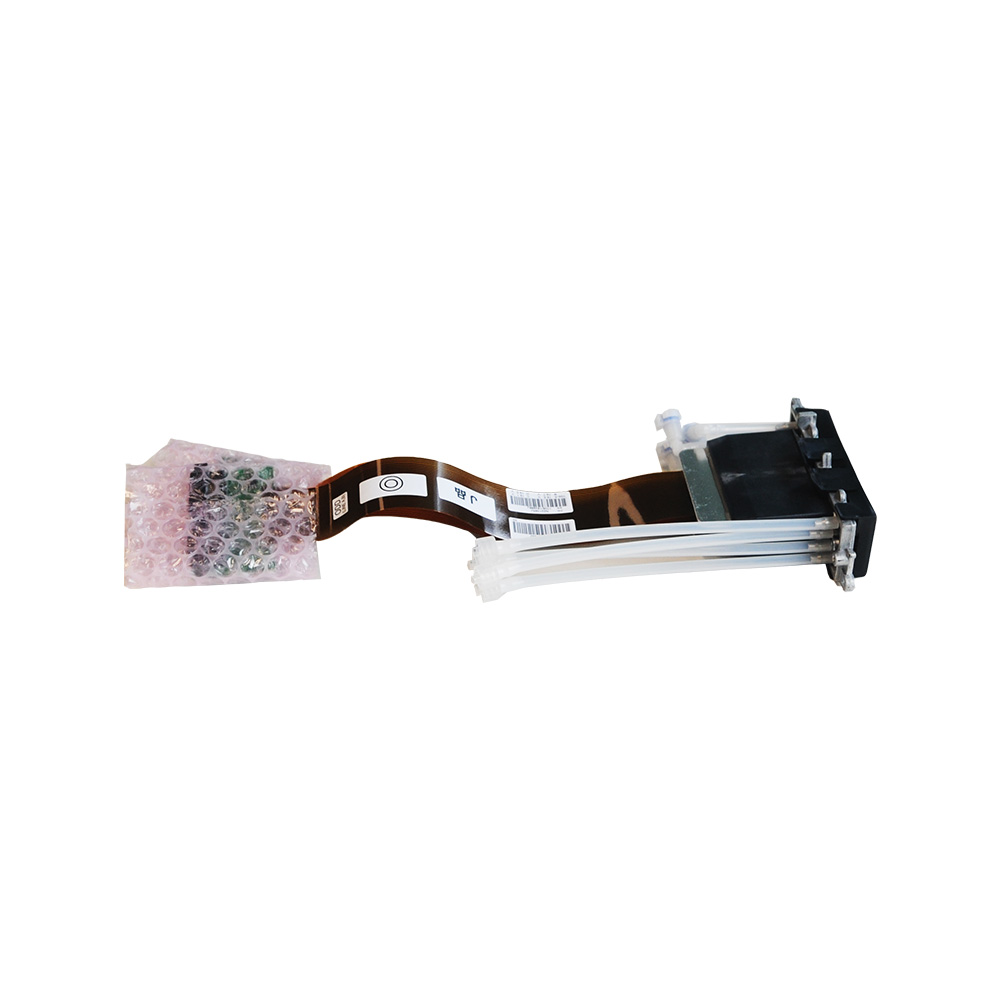

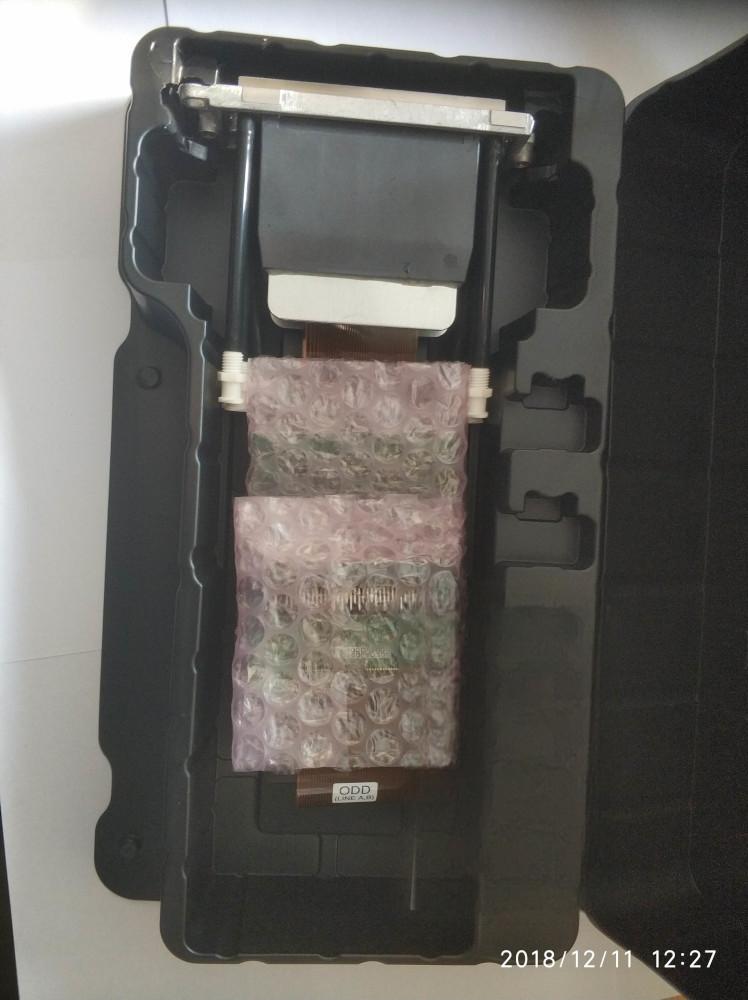

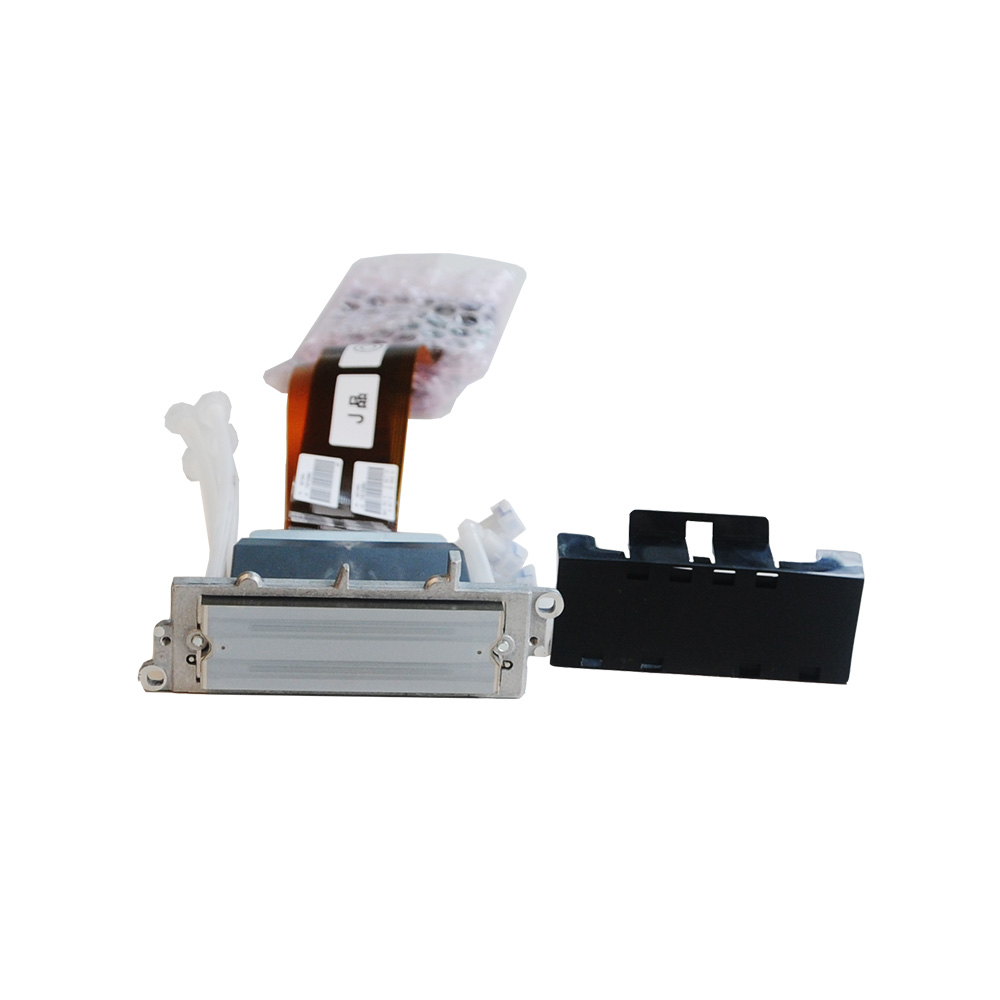

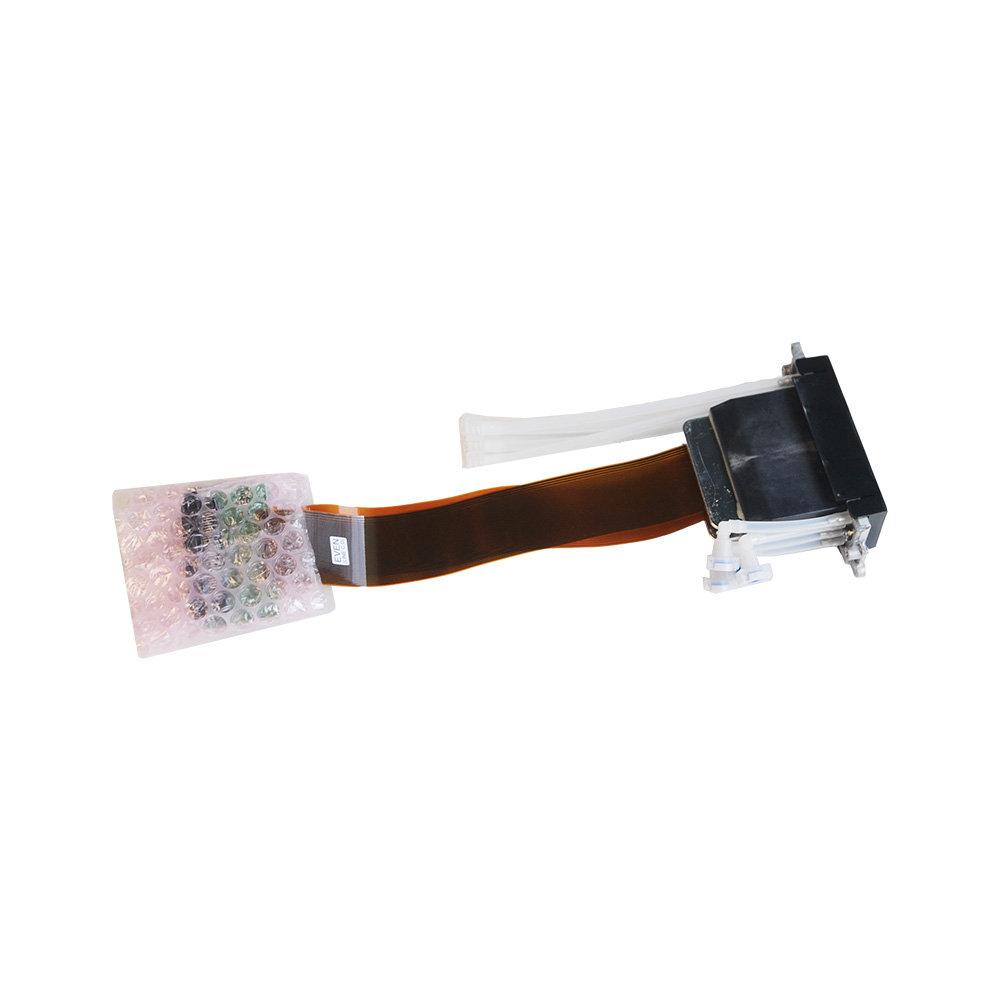

Mimaki SWJ-320 Printhead GEN5 Assy - M022650

  • Model: PRH-HIM-005

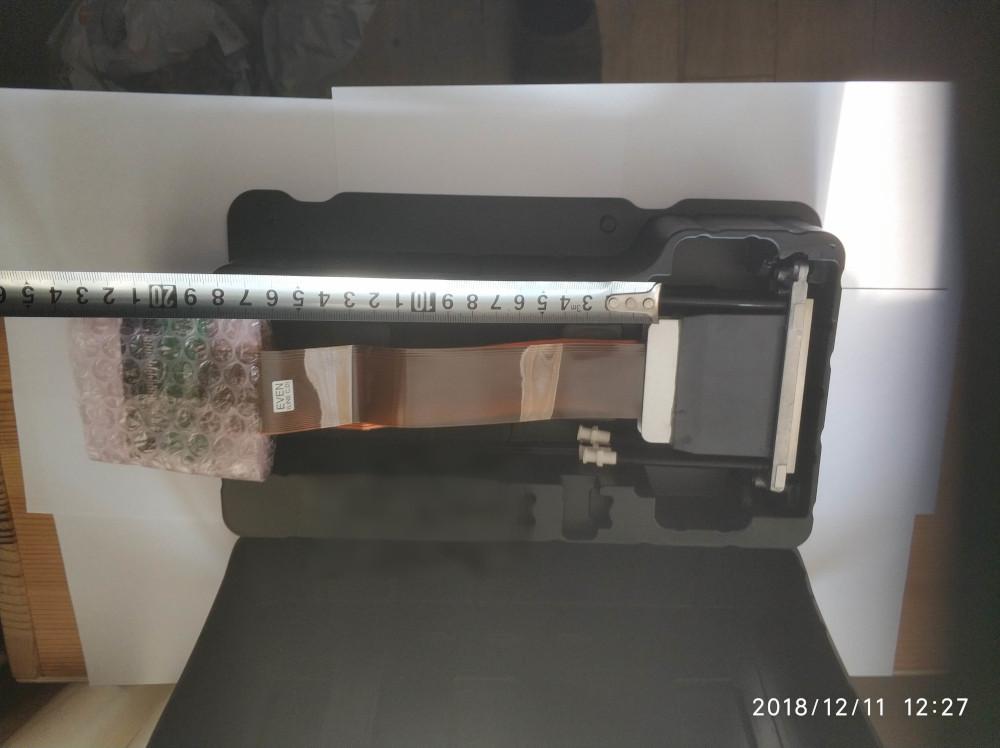

  • Dimensions: 89 x 25 x 69mm(excluding cables)
  • Head materials: SST, Nickel alloy and Epoxy Adhesive
  • Nozzle plate surface: Coasted SST
  • Number of nozzles: 4 x 320 nozzles
  • Nozzle spacing: 0.1693mm
  • Nozzle density: Up to 600npi
  • Piezo type: D33 Stacked PZT
  • Temperature control: Integrated Heater and Thermistor
  • Operator temperature range: Up to 80℃
  • Native drop volume: 7 pl
  • Drop volume range: 7 - 35 pl
  • Drop velocity: 7 m/s
  • Jetting frequency: Up to 60 kHz
  • life: 100 billion actuations per nozzle
  • $2,757.00

To be used with:

Mimaki SWJ-320 Printers.

Remarks:

Original

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.

Description:
Original Printhead of Mimaki SWJ-320
