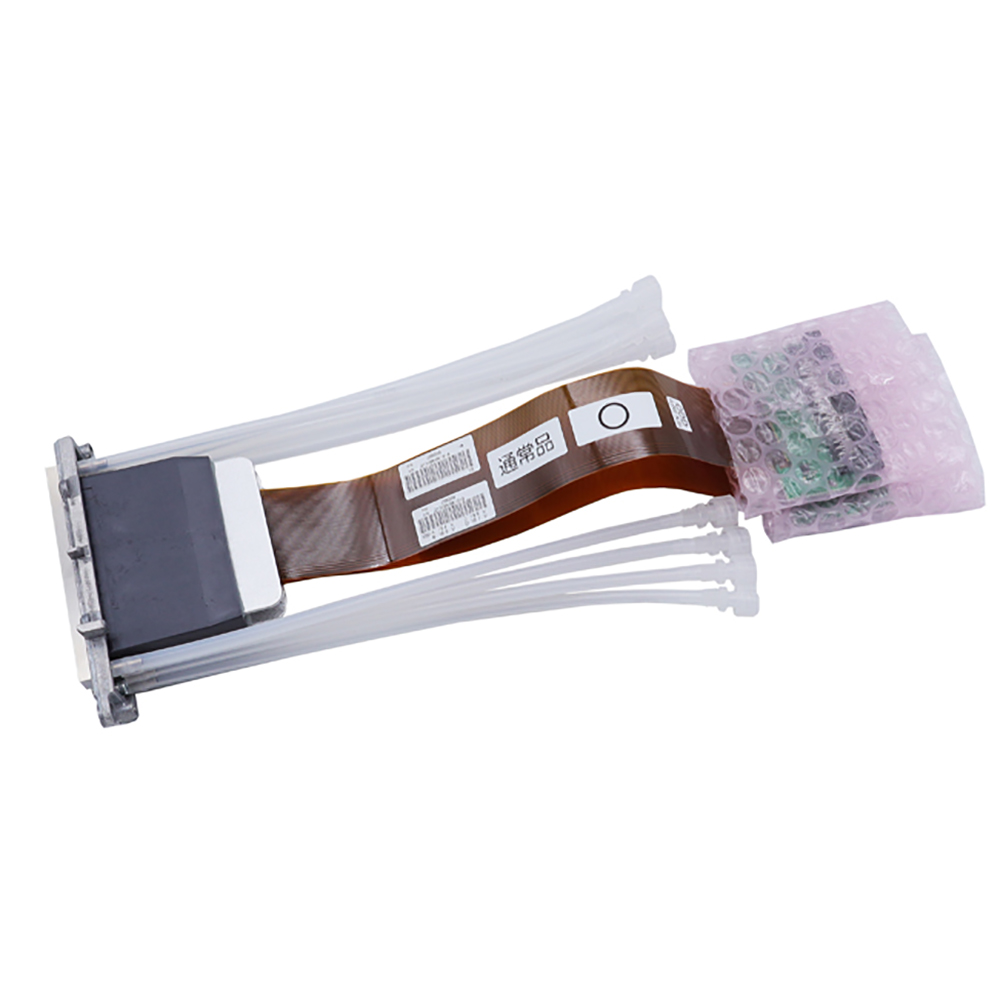

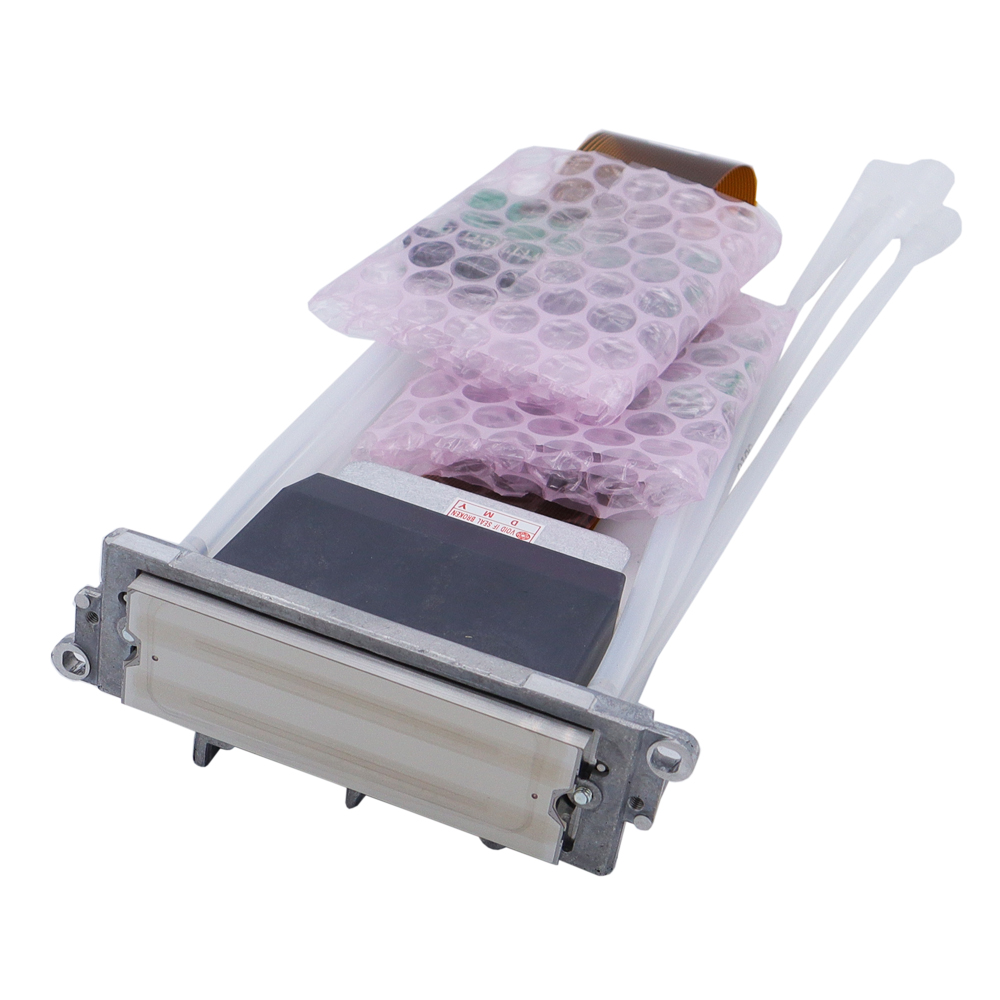

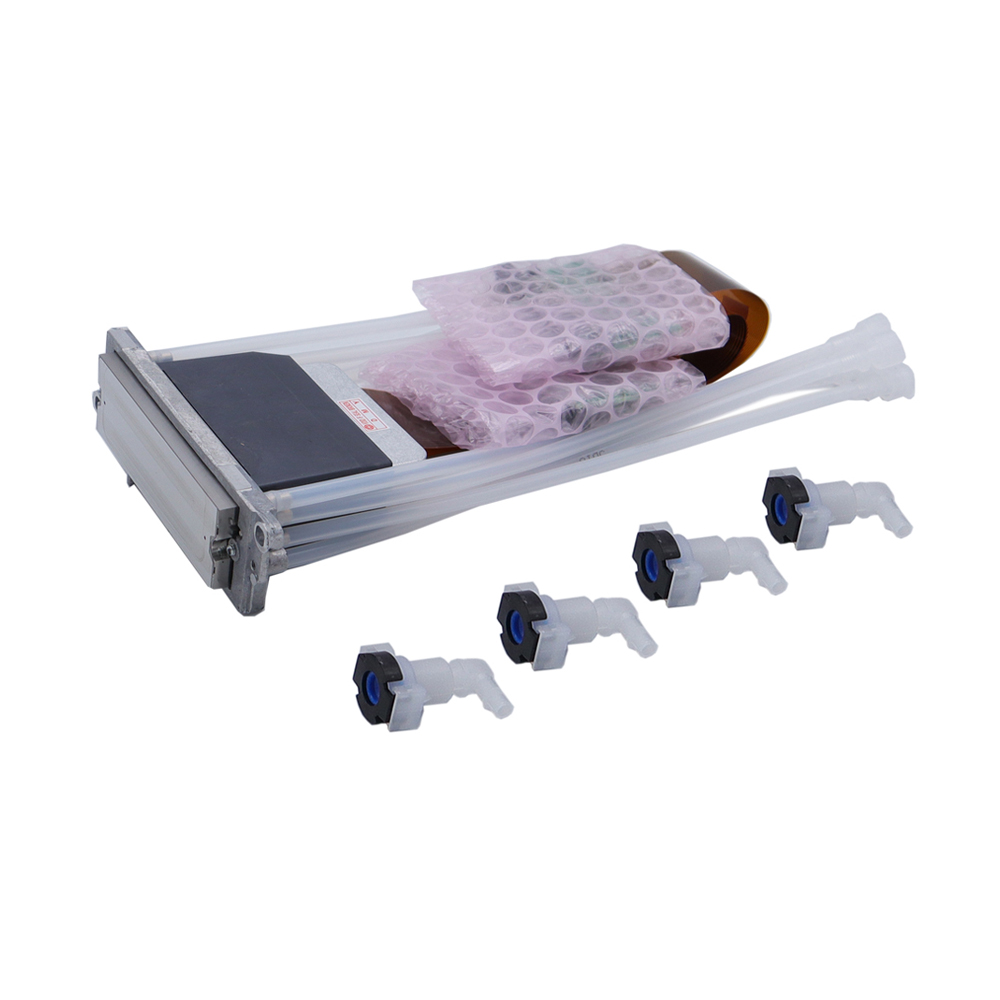

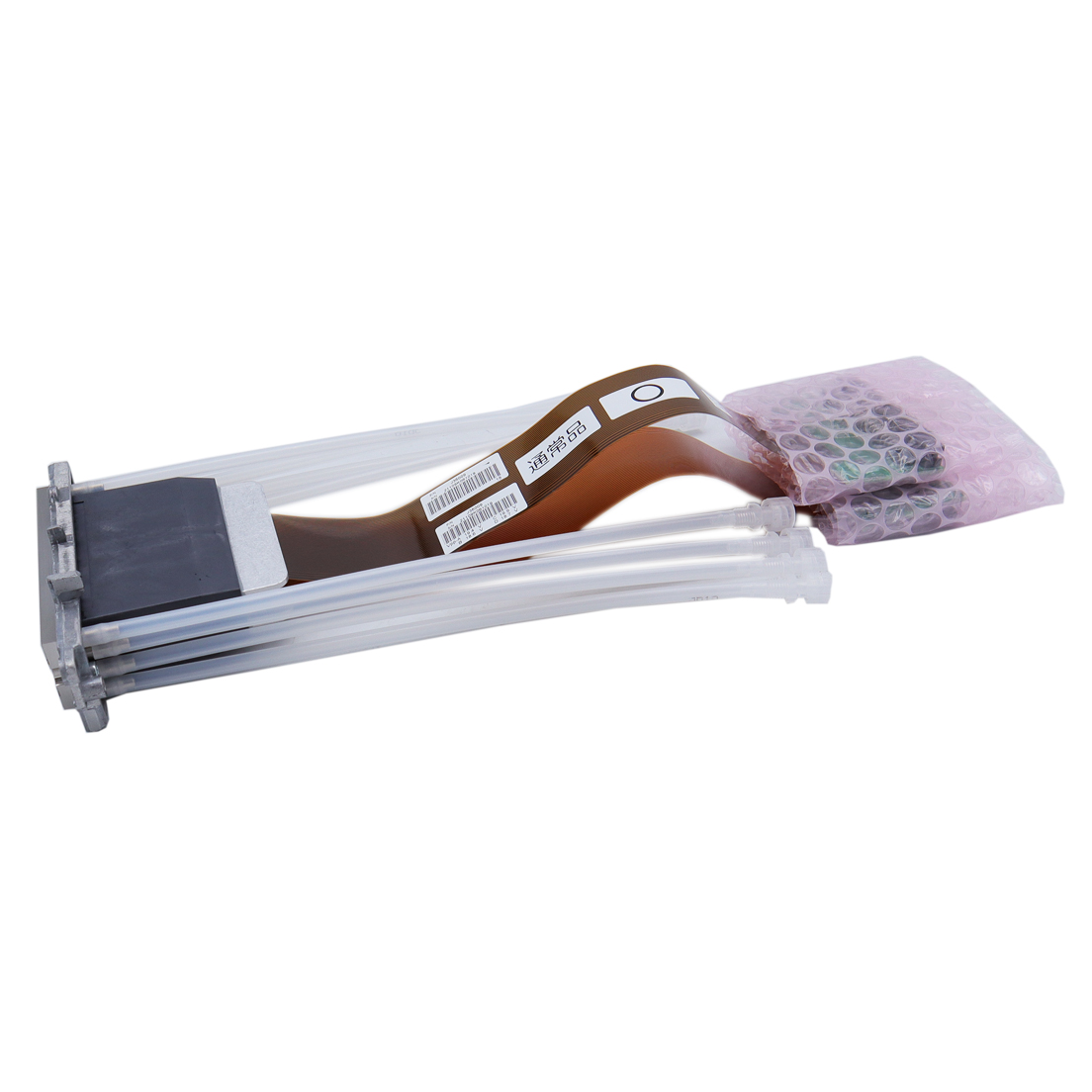

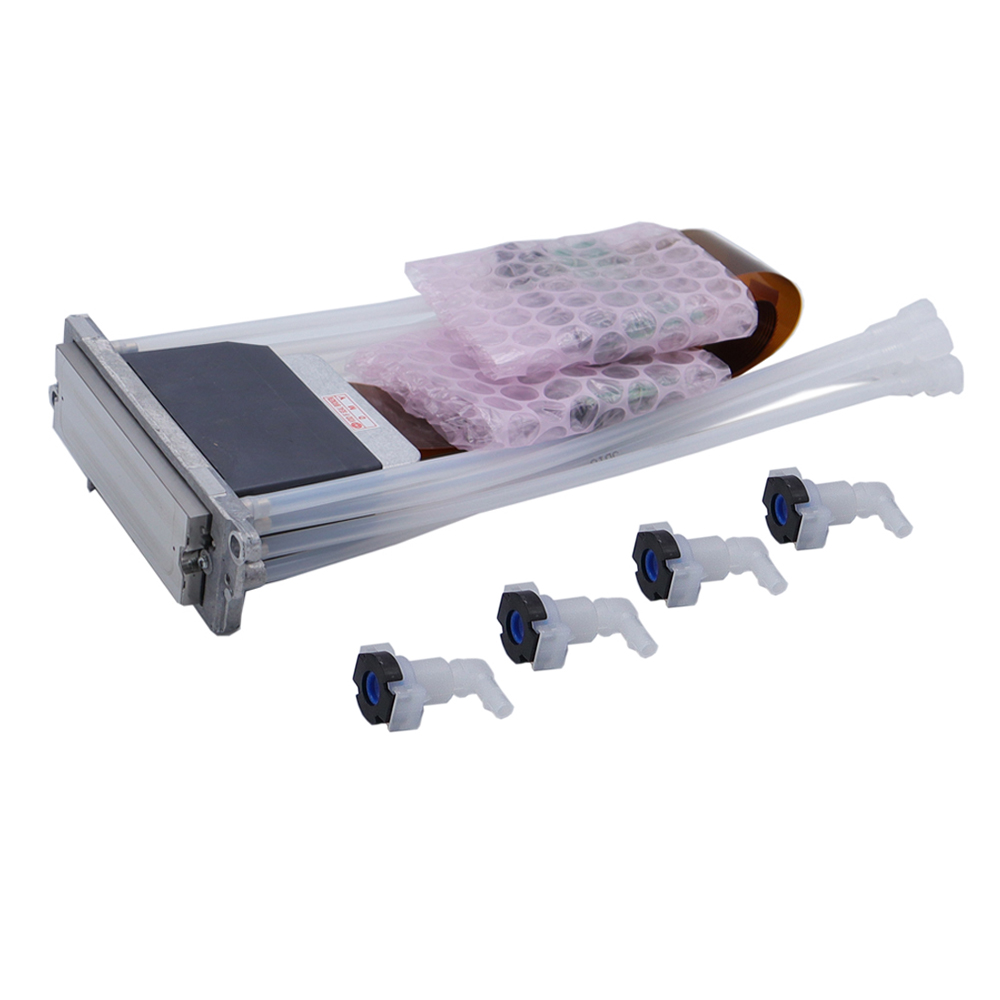

Mimaki TS500-1800 Gen5 Printhead Assy - M022653

Model: PRH-MIM-006
Head materials: SST, Nickel alloy, Epoxy Adhesive
Number of nozzles: Four 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle density: up to 600 npi
Nozzle plate surface: Coated SST
Piezo type: D33 Stacked PZT
Native drop volume: 7 pl
Drop volume range: 7-35 pl
Drop velocity: 7 m/s
Jetting frequency: Up to 60 kHz
Temperature control: Integrated Heater and Thermistor
Operator temperature range: Up to 80°C
Life: 100 billion actuations per nozzle
Dimensions: 89 x25 x 69 mm (not include cables)
$1,767.00 - 1,804.00

GET A QUOTE

Description

Mimaki Ts500-1800 cen5 Printhead Assy -M022653

This printhead is suitable for Mimaki TS500-1800 & TX500-1800 series printers.

Printer Compatibility: MimakiTs500-1800/TX500-1800B/TX500-1800DSPart No.: M022653

Remarks: Original

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
