Spectra Nova JA 256 80 AAA Printhead

75 picoliter calibrated drop size;
Resolutions up to 450 dpi;
256 individually addressable, inline nozzles;
Supports solvent, UV-curable, and aqueous inks;
Orientation independentDesigned for long service life;
Operation up to 90°c [194°F];
Dual ported for ease of flushing;
Optional temperature control.
$2,205.00 - 2,250.00

Description

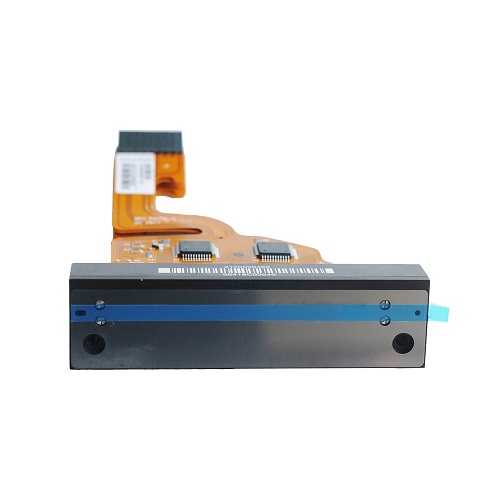

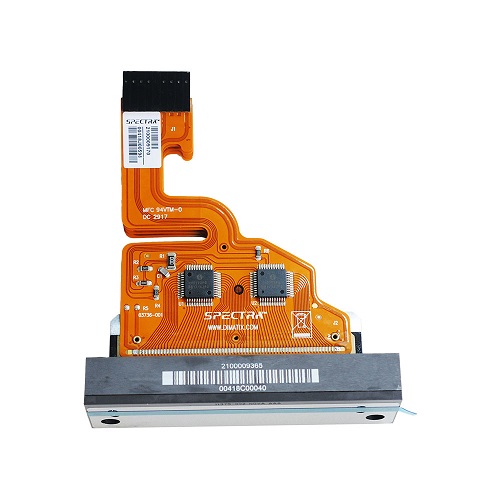

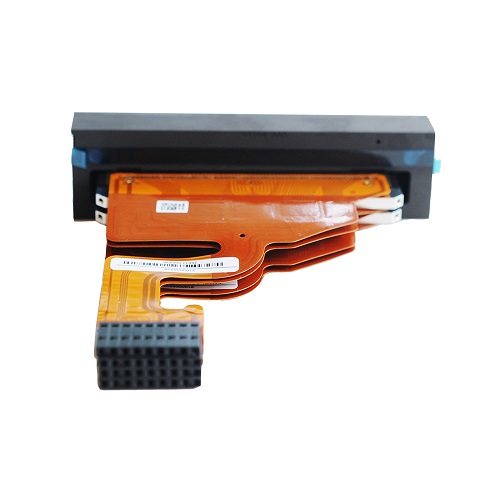

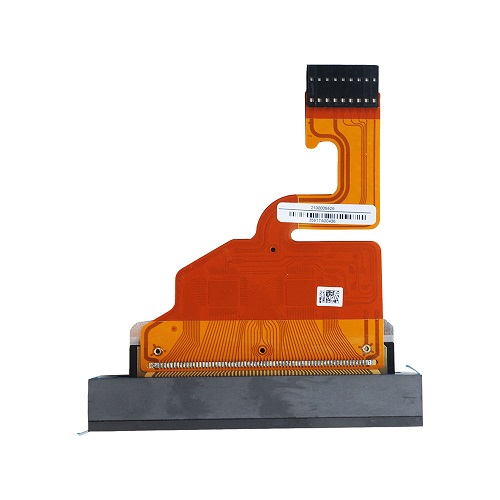

Spectra Nova JA 256/80 AAA Printhead

To be used with: WIT-COLOR UIra1 000-NOVA-5208, WIT-COLOR UItraT 000-NOVA-3308, DCI PS-3204D. Flora LJ 320SE, FIOrHJII3200/5000SE. YISHAN PS-3204S, YISHAN POLAJET PS-3204DX, YISHAN YS5008-EE. Vutek Uitravu3360. Teckwin TeckproS3200

Remarks: original

Description: The Nova 1A 256/80 AAA is a contact inkjet jetting assembly designed specifically for applications using solvent. UV-curable aqueous ink formulations at resolutions up to 450 dpi. Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 jets. The nozzles are arranged in a single line, at a 0.011-inch distance between nozzles

Attention:

1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
