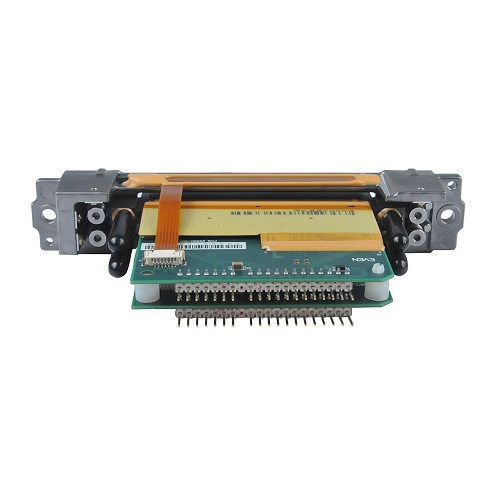

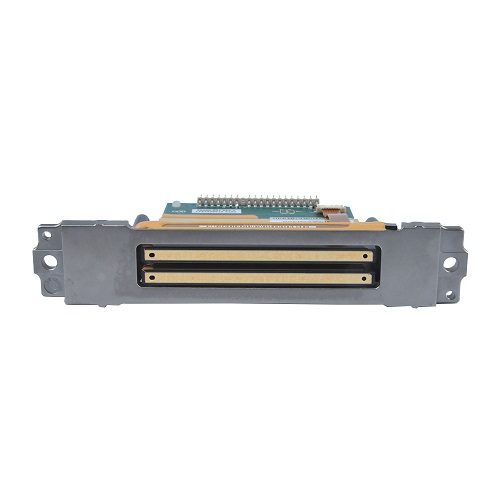

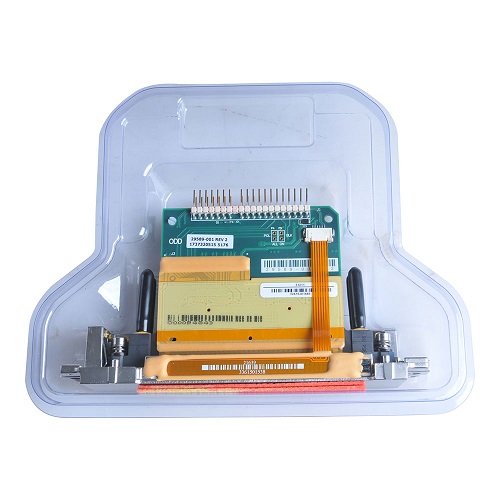

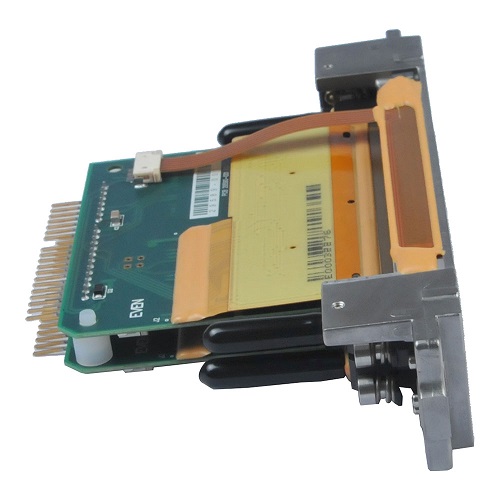

Spectra Polaris PQ-512 35PL Printhead

Spectra Polaris po-512/35 AAA Printhead

To be used with: ORASIGN W-320PO, ORASIGN W-180PO, WIT-COLOR ULTRA4000 4H/6H, WIT-COLOR ULTRA4000 8H, FloraJ320P, GONGZHENG GZT3204, GONGZHENG GZT3202, GONGZHENC GZR3208, CONGZHENG GZT3208AU, JHE A8 3304PO, JHEA8 3308PO, LEOPARD O8 3304PO, LEOPARD O8 3308PO, APRINT 330P, DGI PO-3202 /P0-3204, Eurotech Turbo, flora HJll5000uv, Wit-color Uitra 4000-3304 /Ultra 4000-3308, JHF Vista 08 3304P0 /08 3308P0, Congzheng stormJet T3208Au, KornitParadigm 933

Remarks: original

Description:

The Polaris PQ-512 / 35 AAA Printhead has 512 independent channels arranged in multiple rows at 200 dots-per-inch spacing for single color operation, or 100 dots-per-inch spacing for two color operation.

The printhead is designed for binary jetting using a 35-picoliter native drop size with 8 meters per second nominal drop velocity for jetting fluids in the 8 to 20 centipoise range. Using VersaDrop jetting technology, the printhead is capable of adjustable binary operation at drop sizes up to 80 picoliters with resolution up to 800 dpi.

Building upon the legendary reliability and performance of the Spectra Nova and Galaxy printheads, the Polaris PQ-512 AAA family of printheads uses field-proven materials and a repairable design to deliver a long service life and consistent output.

By leveraging the inherent flexibility of the Q-class platform, the Polaris PQ-512 AAA offers even greater jetting performance, nozzle packing density, and configuration flexibility.

The P0-512 / 35 AAA Printhead is compatible with a broad range of inks, including UV-curable, aggressive organic solvent, aqueous inks, and associated maintenance fluids.

The unique design of Polaris Po-512 /35 AAA Printhead allows each 256-channel module to be replaced and accurately registered in the field with no special tools or recalibration.

An integral mounting bezel with precision registration points enables drop-in alignment with other carriage features.

Two electrical connectors contain eight serial data lines that support fire frequencies in excess of 50 kHz .

The flexible fluid interface allows single and two-color operation, Each 256-channel module is dual ported to facilitate easy priming, flushing, and ink recirculation.

Heaters and temperature sensors allow precise control of ink viscosity at jetting temperatures up to 60 °C,

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.

Printhead Model Name:Spectra Polaris PQ512 35pl

Application: work for all Chinese printers like below:

LIYU: PS3204-S512, LIYU PS3208-S512;

Rodin P9320-B (4H), Rodin P9320-B (8H);

Flora PP2512UV,

SMART uv printer

JHF UV R5000, JHF UV R3300, JHF UV R5000S, JHF UV R3300S;

LEOPARD E3000, LEOPARD S2600,

Anhui Liyu Innova PS,

Infiniti Fina 250Q / Fina 320Q,

Eurotech Aslan / Leo / Lion,

Gongzheng GZCK 3212 AK,

Flora LJ 320P, Rodin P9320-B,

Sun Neo UV-LEDFlatbed,

Teckwin TeckUV 3200SR / TeckStorm TS600 / TeckStorm TS300, CET Color X-Press X500 / X-Press X500h / X-Press X1000 / X-Press X1000hl,

Truepress Jet W3200UV,

Wit-Color Ultra 4000-3304 / Ultra 4000-3308

Compatible Ink for this head: Solvent ink,UV ink,

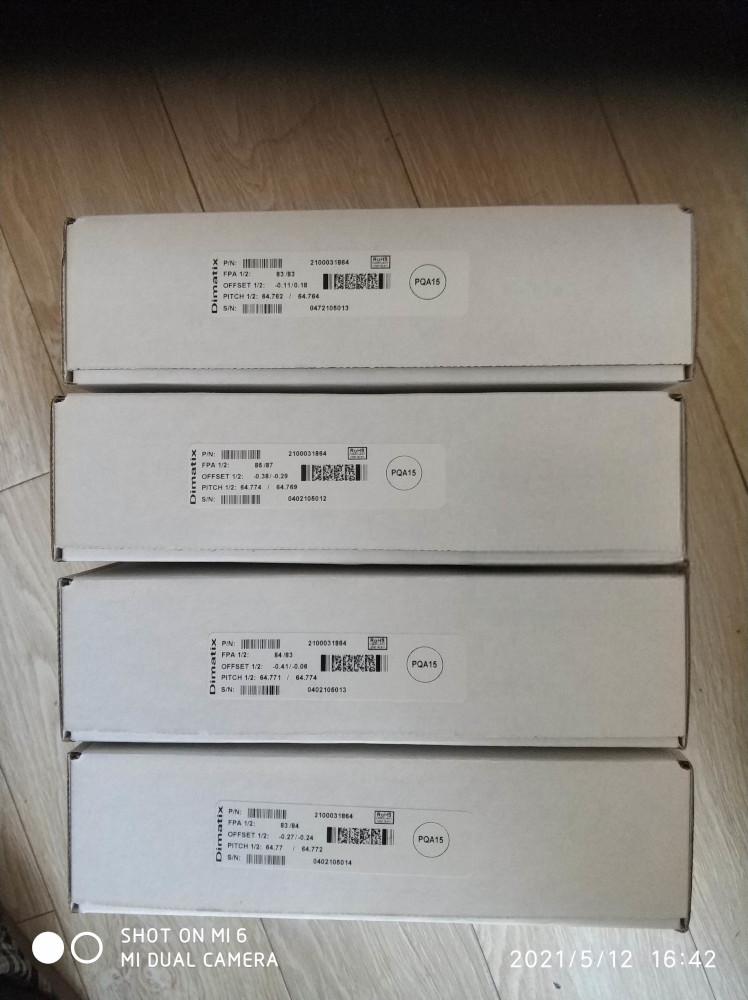

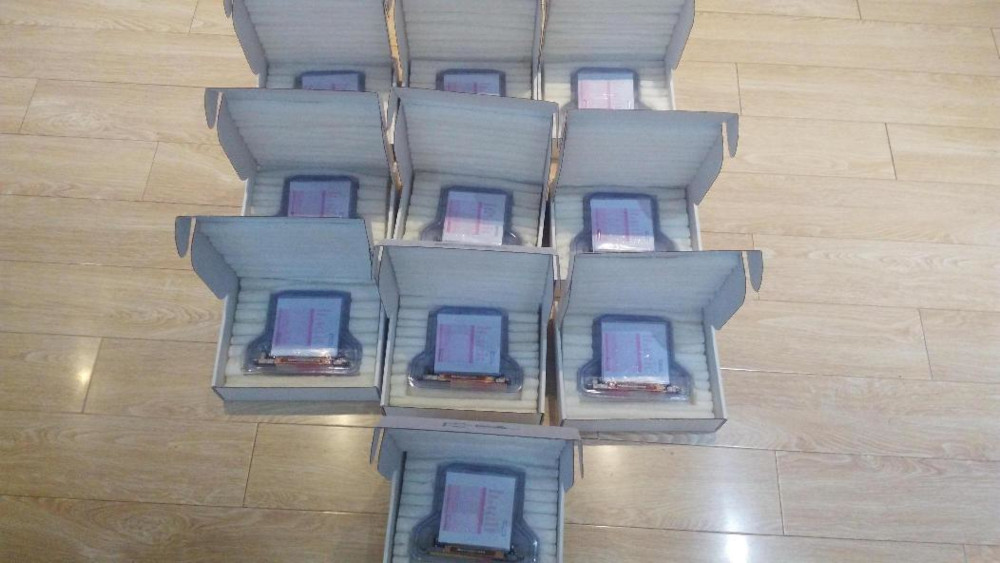

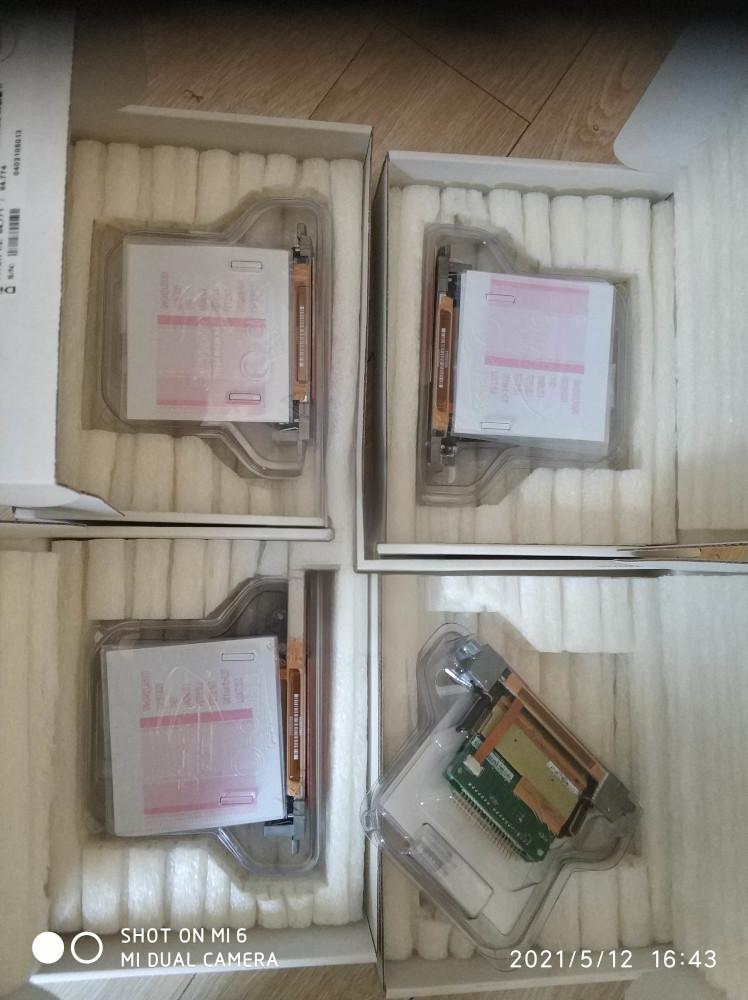

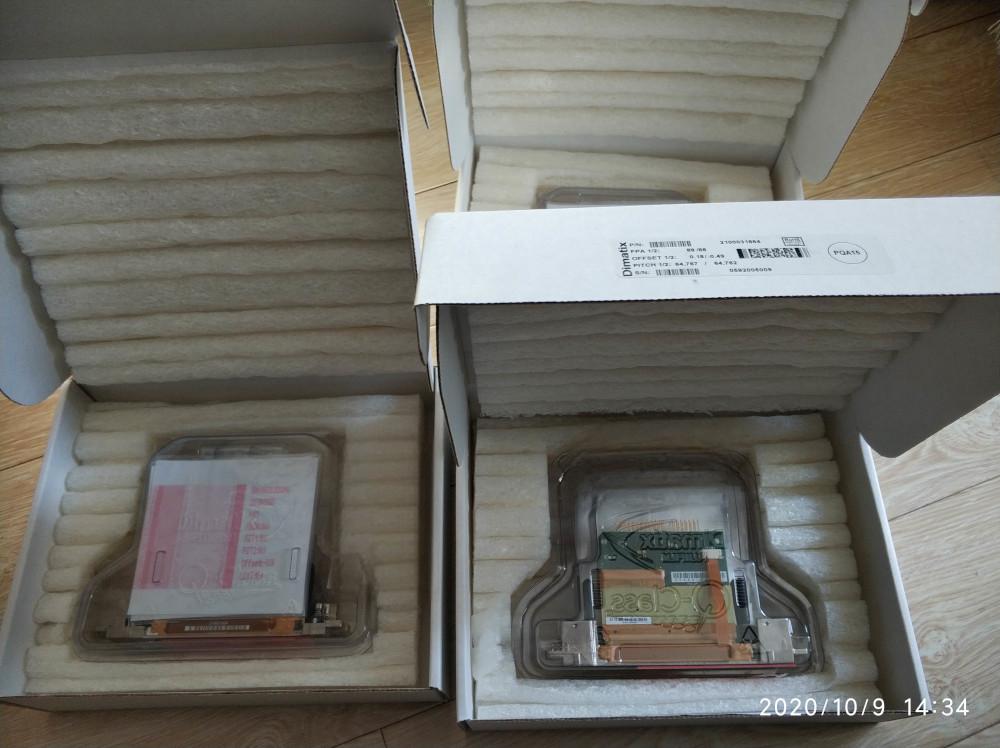

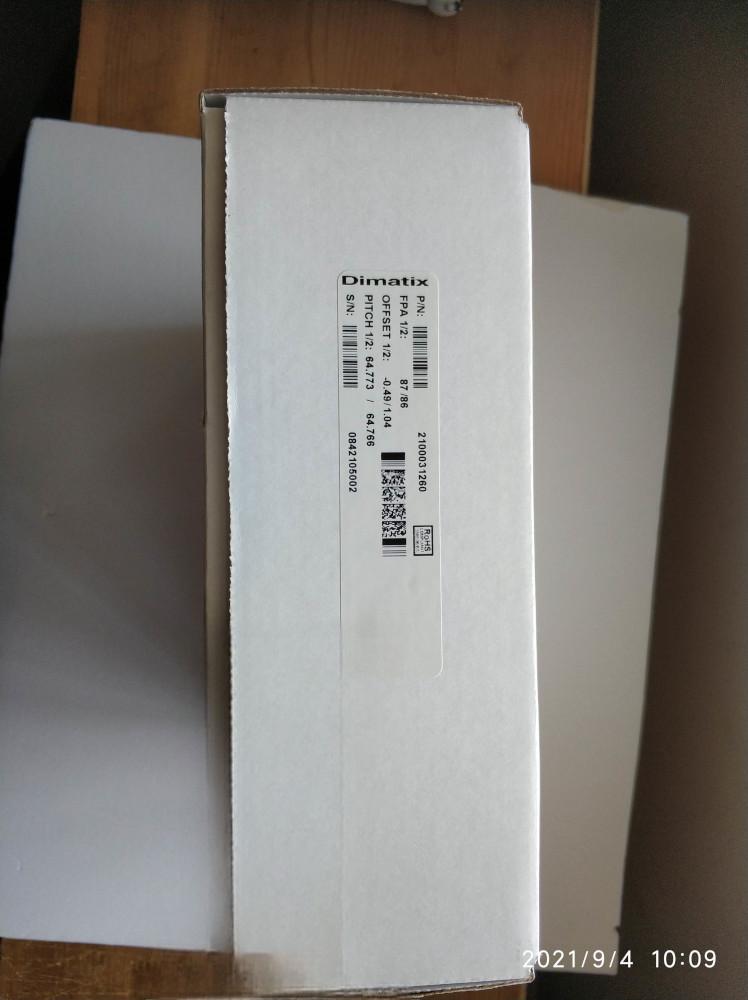

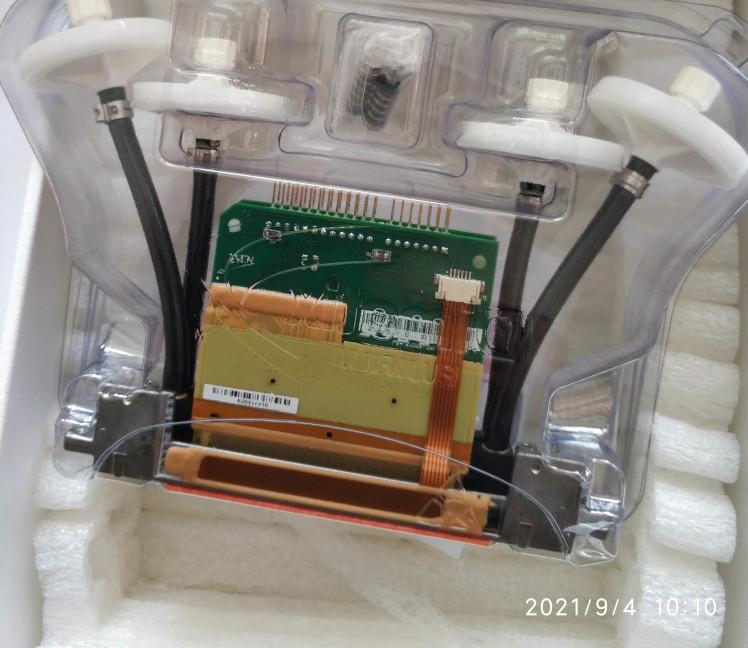

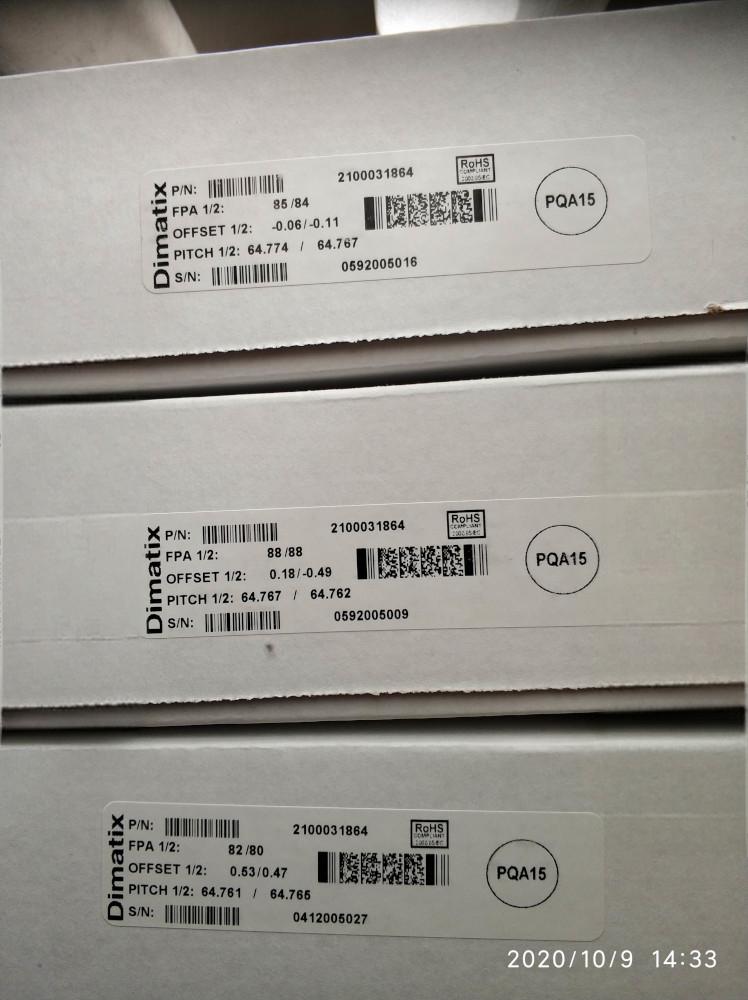

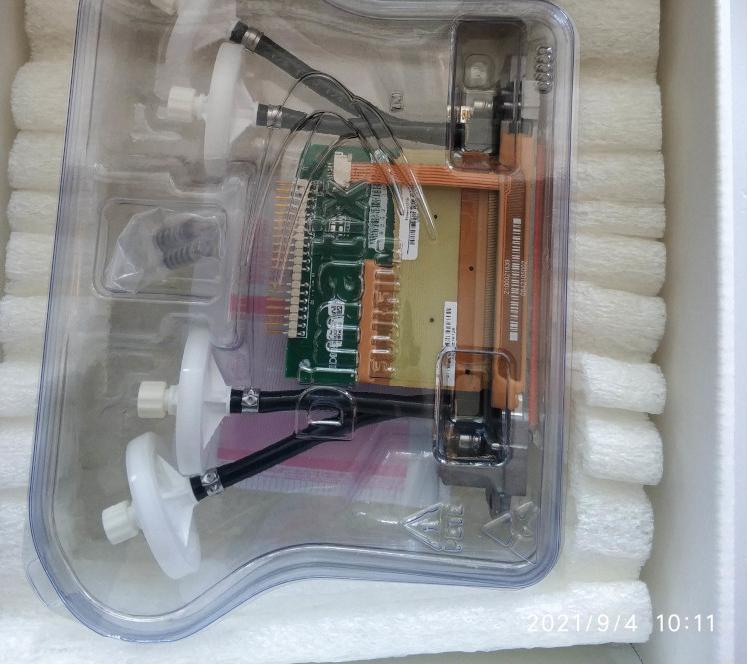

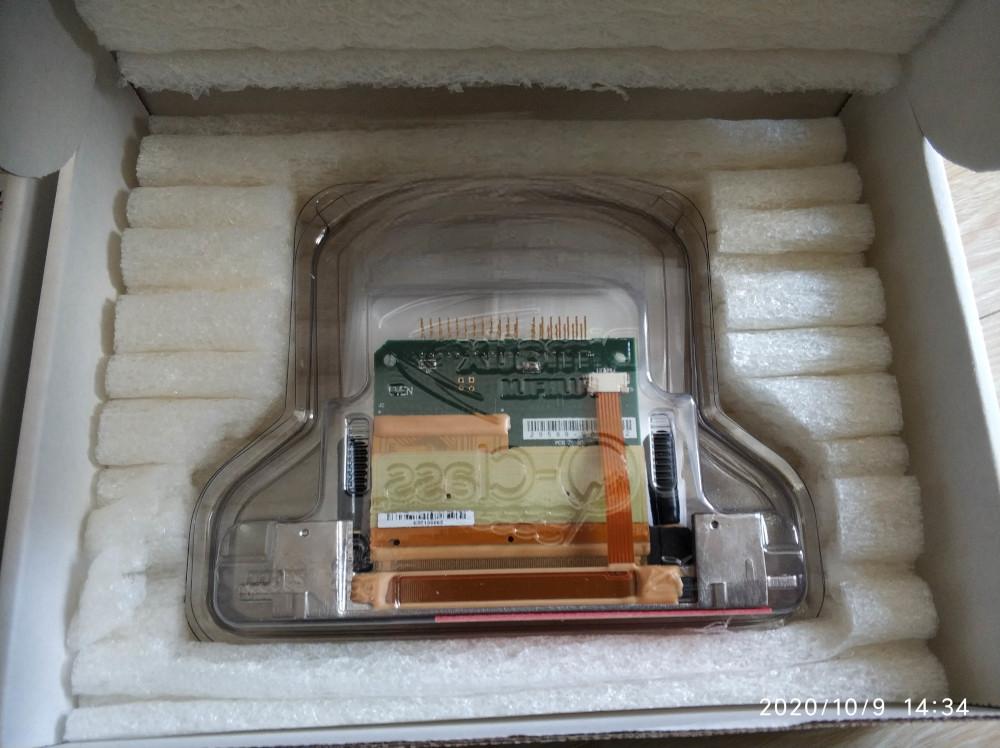

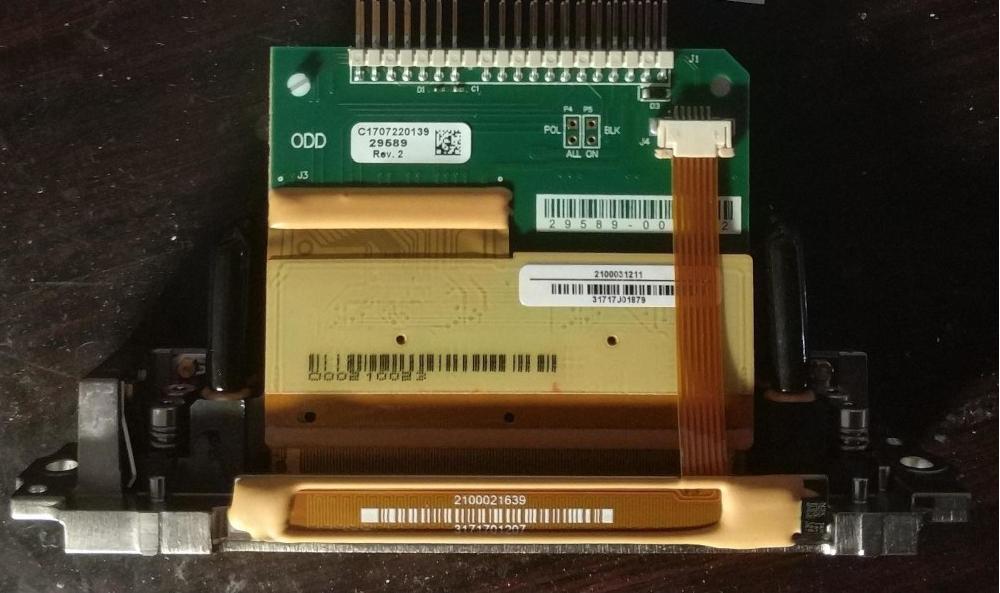

Photo about the packing and the detail of this printhead from our Delivery records:
