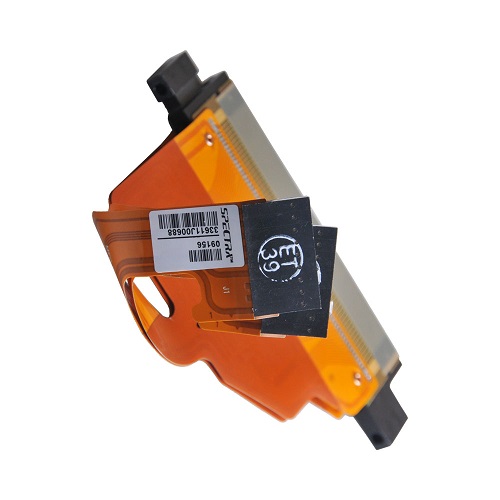

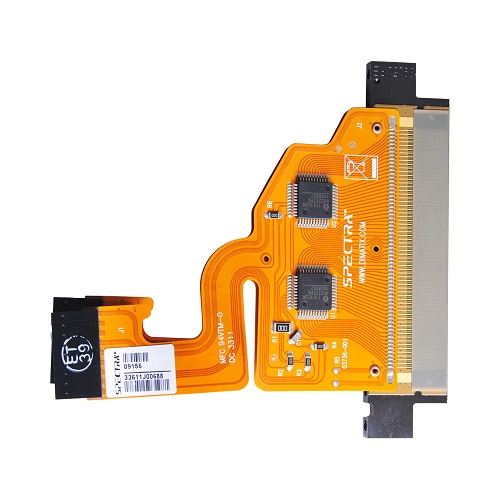

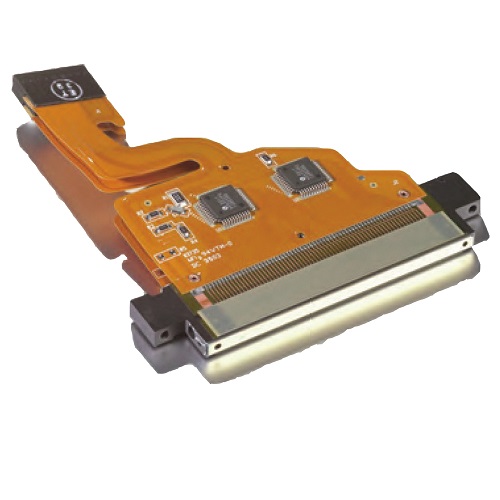

Spectra S-Class SL-128 AA Printhead

Spectra s-Class sL-128 AA Printhead

To be used with: swift 3360, nfiniti Fy-6250sL, Agfa Jeti 3300 /Jeti 3312 solvent RTR /Jeti 3318 solvent RTR /Jeti 3324AquaJet RTR /Jeti 3324 solvent RTR /Jeti 3324 UV / Jeti 3348 Hss /Jeti 3348 Jetspeed RTR /Jeti 3348 UV Galaxy RTR / Jeti5000 solvent RTR /Jeti 5024 solvent RTR /Jeti 5024 uv /Jeti 5048 Uv Xl /Jeti 3150 Uv /Jeti 1224 Uv /Agfa Jeti 2030 uv, DursRho 700, 3M Virtu 3600, Keundo supra0 3000-Bio /supra0 3300-Ds /supra0 3300-PRo /supra0 3300-s

Remarks: Original

Description:

The Spectra SL-128 AA is a highly compact and light-weight jetting assembly designed specifically for ink jet applications requiring multiple printheads packed tightly together.

These modules are ideal for fast-moving, high-performance printer carriage designs. General compatibility with a wide range fluids makes the SL-128 AA jetting assembly extremely versatile.

Two electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 128jets. The nozzles are aranged in a single line, at a 0.020 inch distance between nozzles. Resolutions up to 450 dpi are possible.

This jetting assembly contains serial-to-parallel converters for selection which jets to fire; all jets can be fired simultaneously on individually. By using an optional Head interface Board, image data can be daisy-chained into one serial stream to reduce the data interface hardware requirements. A high-voltage fire pulse with controlled slew rates is used to actuate the pumping chambers within each channel.

The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are possible. This arrangement permits extremely tight packing in the print process direction. The dual ported fluid interface facilitates flushing for guick change-overs and for displacing drying fluids with inert fluids during periods of non-use.

Optional temperature control components are available for precise control of fluid viscosity. Optional deaeration hardware can be provided.

Attention:

1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
