Specifications & Parameters
Machine model | AM3204K12i | |
Print size | 3200MM | |
Printhead Model/Number | KM512i(4 heads) | KM512i(8 heads) |
Print speed | 2 pass 130㎡/h(480*360dpi) | 2 pass 260㎡/h(480*360dpi) |
3 pass 90㎡/h(480*5400dpi) | 3 pass 180㎡/h(480*540dpi) | |
4 pass 65㎡/h(480*720dpi) | 4 pass 130㎡/h(480*720dpi) | |
Printable materials | Any soft material can be printed on: ceiling soft film, wallpaper/fabric, polyester fabric, backlit film, photo paper, canvas, etc. | |
RIP software | Dutch pf color management software | |
Power requirements | AC220±10,50HZ~60HZ, P4500W | |
Print interface | High-speed USB transmission interface | |
Driver software | Win7/Win8/Win10 X64 | |
Working environment | Temperature: 20℃~30℃, humidity: 35%RH~65%RH | |
Equipment size | L5300mm*W1180mm*H1700 | |

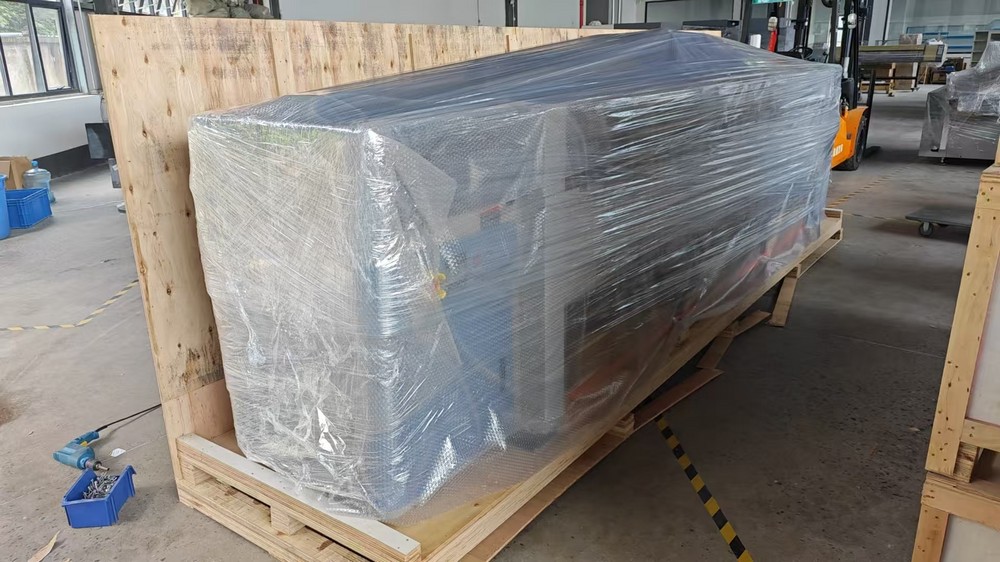

Packaging size | L5600mm*W1250mm*H2100 | |
Equipment net weight | 1500kg | |
Equipment gross weight | 1750kg | |
Product Features:

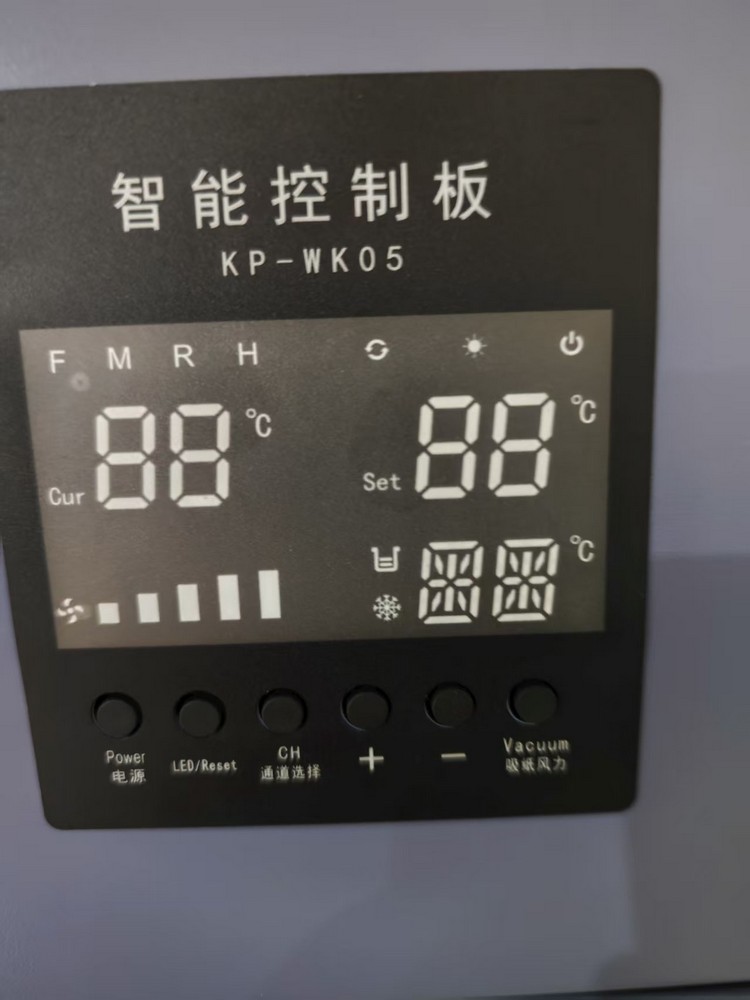

1. Nozzle Heating System & Ink Circulation: The nozzle plate integrates a heating function to ensure optimal ink flow stability across varying temperature environments. The built-in ink
circulation system prevents pigment sedimentation within nozzles, effectively reducing nozzle clogging risks.

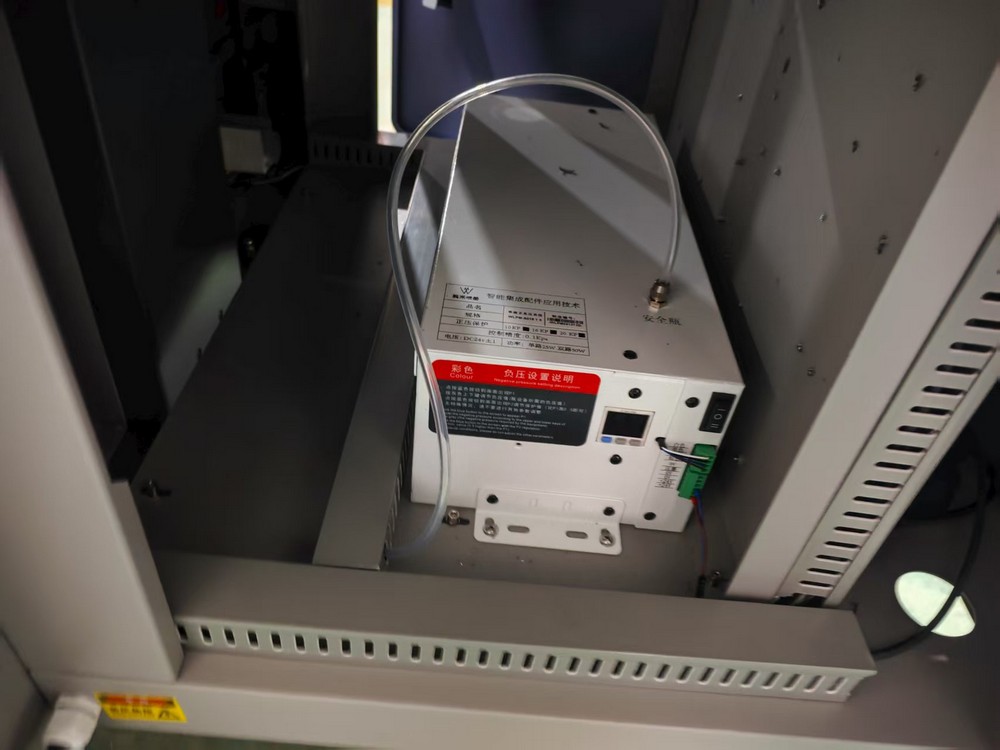

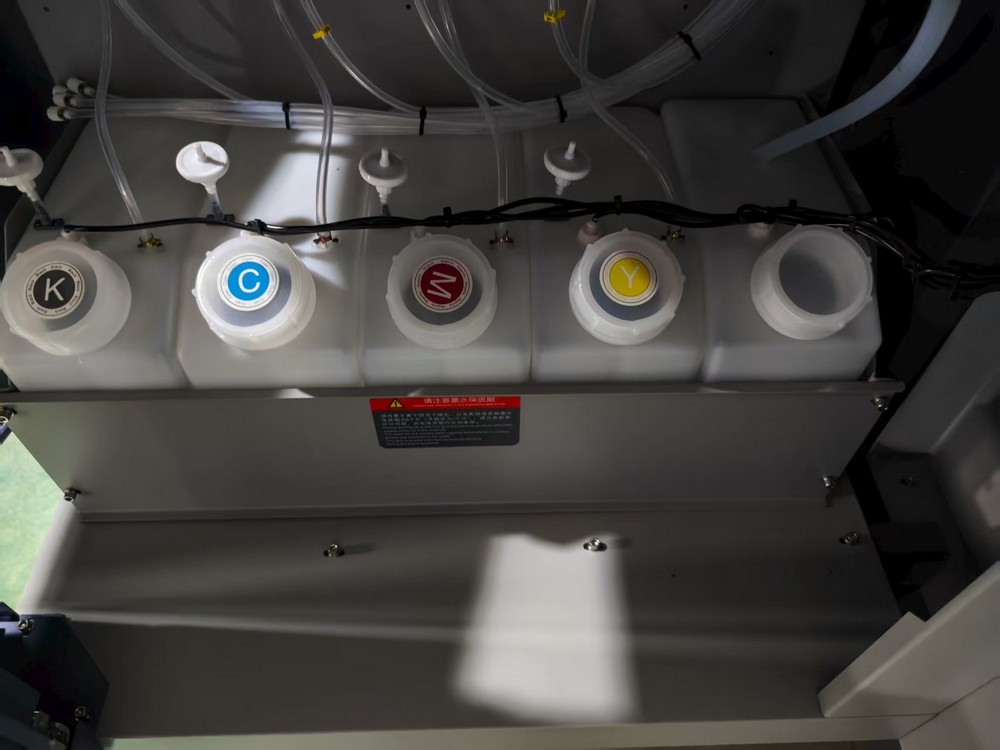

2. Fully Transparent Secondary Ink Tank Design & Independent Color Pressure Control: (1) Transparent construction enables easier troubleshooting and reduces maintenance time. (2)
Independent pressure adjustment mechanisms optimize ink consumption efficiency.
3. Single Motorized Pressure Roller System & Japanese THK Silent Guide Rails/Sliders: (1) Allows real-time adjustment of individual pressure rollers during printing operations to
eliminate material wrinkling without interrupting production, minimizing material waste. (2) High-speed silent guide rails ensure smoother printhead movement, enhancing printing
precision while reducing operational noise. This design minimizes mechanical wear and extends guide rail lifespan.

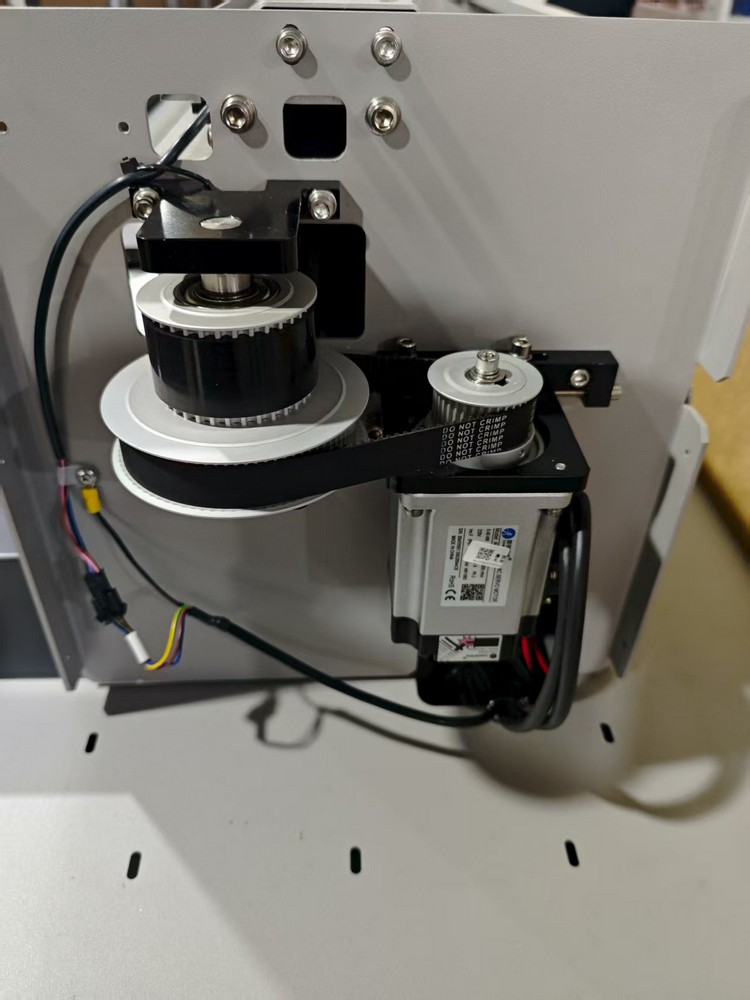

4. Adjustable Vacuum Platform & Roller Speed Modulation: (1) Enables manual airflow adjustment during printing to resolve material feeding issues caused by excessive vacuum,
ensuring smooth feeding of materials with varying thicknesses. (2) The roller power regulation system enhances compatibility with diverse material types for both feeding and
collection operations.

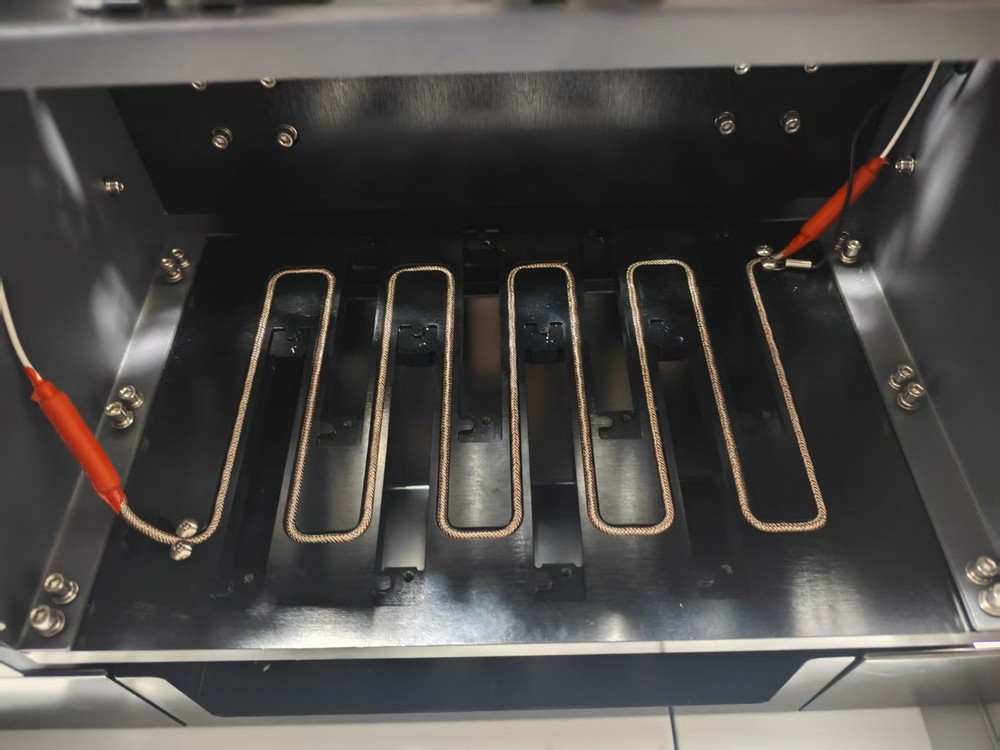

5. High-Power Heating/Drying System: Features segmented heating zones to improve material ink absorption and color fastness. Incorporates a proprietary built-in thermal air
circulation chamber coupled with a cold air diversion system, enabling rapid post-drying cooling to ensure finer details and glossier finishes.
Application Scope:
