Specifications & Parameters
Model | C1300/C1600/C1800 Economical Inkjet Printer | ||||
Maximum Print Width | 1300mm/1600mm/1850mm | ||||
Print Head Number | 1pc | ||||
Card system | Guangzhou sunyung | ||||
Print head type | I3200 | DX5/DX7 | XP600 | 4720 | |
Printing speed | 3 PASS | 26m²/h | 17m²/h | 16m²/h | 28m²/h |
4 PASS | 20m²/h | 14m²/h | 13m²/h | 22m²/h | |
6 PASS | 15m²/h | 10m²/h | 9m²/h | 13m²/h | |
Ink | Type | Weak solvent/water-based/thermal transfer ink | |||
Color | CMYK | ||||
Material type | PP/adhesive/photo paper/car sticker/one-way sticker/light film | ||||

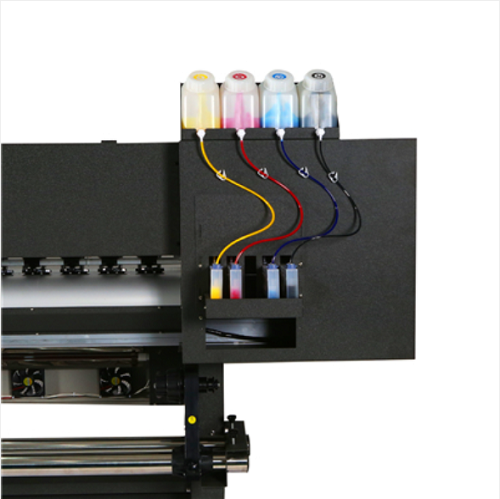

Ink supply | Automatic continuous supply system | ||||
Print head maintenance | One-button automatic nozzle cleaning system | ||||
RIP software | Maintech 6.0 (standard)/Photoprint (optional) | ||||
Data interface | Gigabit network card transmission | ||||

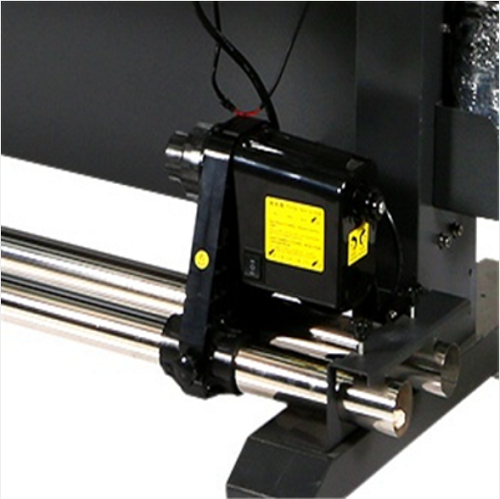

Auxiliary system | Material collection and release system | Automatic damping paper collection device/double damping paper release device | |||
Print head height | Adjustable 2-5mm from the printing platform | ||||
Equipment-related information | Working voltage | AC220V 50/60Hz | |||
Power supply | 2500W | ||||
Working environment | Working temperature: 22-28℃ Humidity: 40%-60% | ||||
Machine size | C1600: L2670mm*W750mm*H1280mm C1900: L2950mm*W750mm*H1280mm | ||||
Packing size | C1600: L2700mm*W700mm*H600mm C1900: L3100mm*W700mm*H600mm | ||||
Product Features:
1. Imported HIWIN silent linear guide rails to help improve printing accuracy and reduce noise caused by the guide rails.
2. The Leisai servo control system is used to better ensure the long-term printing stability of the machine.

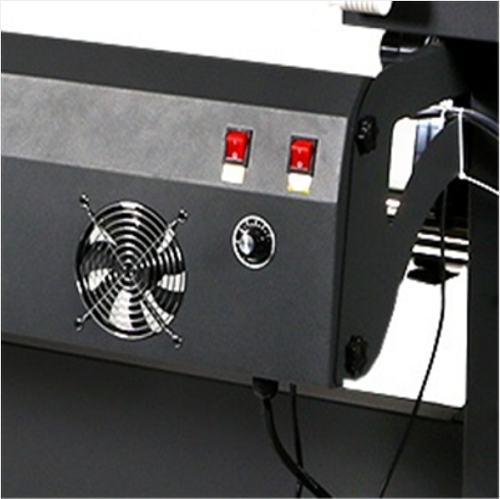

3. Double heating internal circulation dryer to more effectively and evenly dry the medium, reduce energy consumption, and be environmentally friendly and energy-saving.
4. Anode hardening adsorption platform to make platform cleaning easier.
5. High-precision processing of key accessories to improve equipment stability and printing quality.
