Specifications & Parameters
Machine model | ERM5300 | |
Maximum Print Width | 5300mm | |
Number of Printhead | KONICA 1024i(8~28pcs) | |
Printing speed of four four-row nozzle | External light 6pass-3pass | Internal light 6pass-4pass |
260-520 m²/h | 260-390 m²/h | |
Media Type | Can print any soft materials: Ceiling soft film, wallpaper, wall cloth, textile cloth, light film, car sticker, film, canvas, leather, etc. | |
RIP Software | Dutch pf color management software | |
Power requirements | AC220±10, 50HZ~60HZ, P 4500W | |
Equipment/package size | L7500*W1500*H2400mm / L7800*W1800*H2700mm | |
Net/gross weight | 6700kg / 6950kg | |
Product Features:
1. Printing width 5.3 meters, material thickness 10mm, can be equipped with 8-28 Konica 1024i printheads

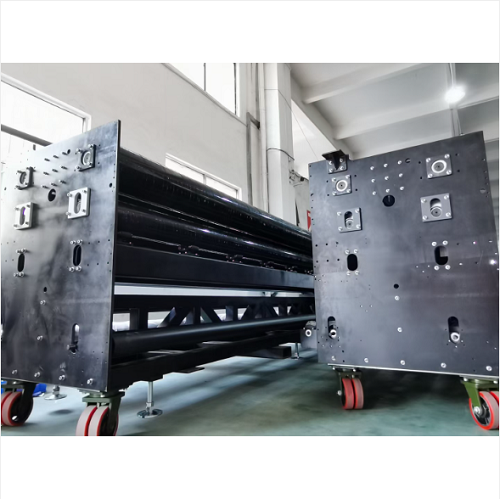

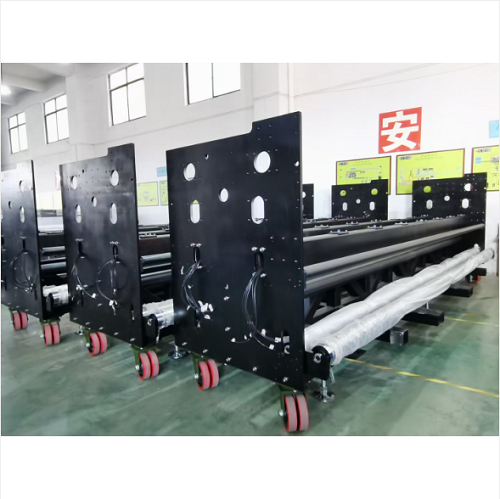

2. Industrial-grade heavy-duty main beams and frames to ensure safe and long-term operation of the equipment
3. Magnetic suspension linear motors and metal gratings imported from Japan, THK silent guide rails and sliders, Panasonic servo motor control system, high precision, fast speed, long life, low maintenance cost
4. High-power refrigerant rapid cooling temperature control system, efficient cooling for the printing platform and UV curing lamp, improving printing quality and extending the service life of UV lamps

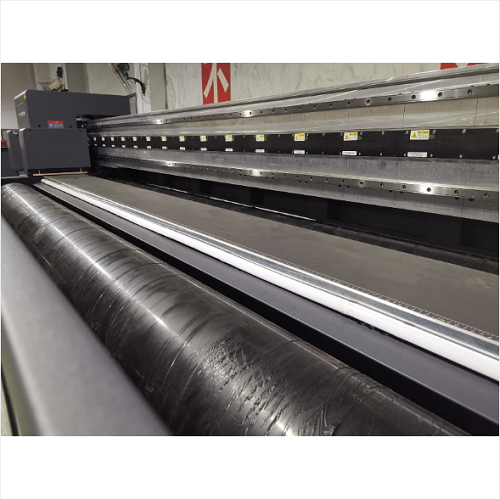

5. 300mm large diameter coarse rubber roller, larger material contact area, ensuring smoother and more accurate material feeding
6. Infrared emergency stop function in dangerous areas to prevent operators from accidentally touching the rubber roller
7. Stable and efficient negative pressure ink supply system, white ink internal circulation, automatic flash spray of the nozzle and constant temperature heating function of the ink cartridge, effectively avoiding white ink precipitation and greatly reducing the probability of clogging
