Specifications & Parameters

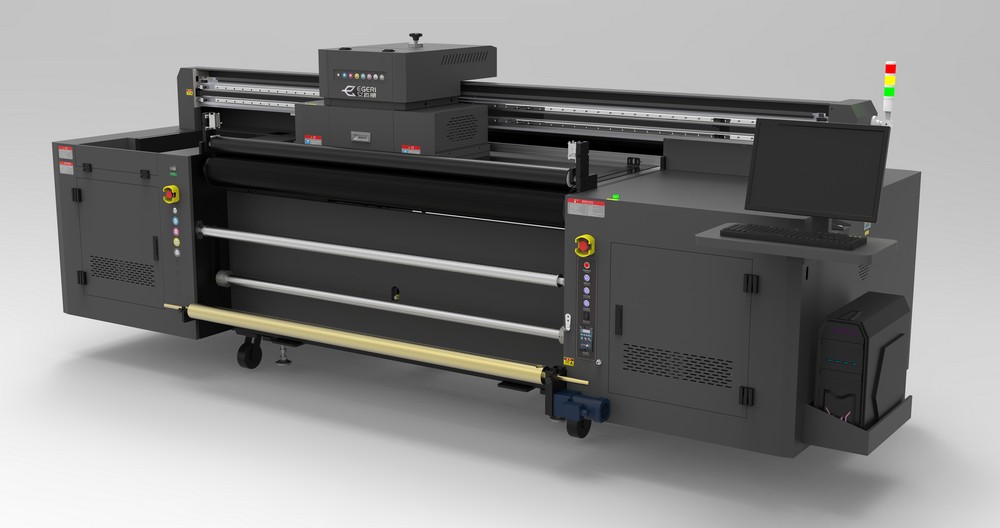

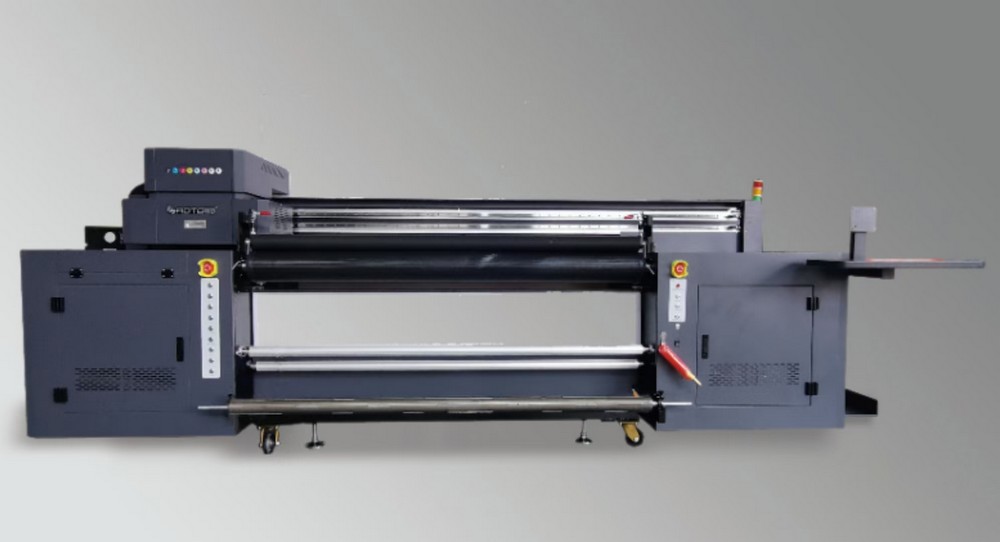

Machine model | FR1800 | ||
Printing size | 1800mm | ||
Nozzle type/quantity | KONICA 1024i/4~16pcs | ||
Four-row nozzle printing speed | external light mode | internal light mode | color white color |
135-260m²/h | 90-135m²/h | 33-66m²/h | |
Printable materials | Any soft material can be printed. For example: ceiling soft film, leather, wallpaper, wall cloth, textile cloth, light sheet, car sticker, film, canvas, etc. | ||
Power requirement | AC220, 50HZ~60HZ, 3800W | ||
Curing system | LED UV lamp curing system | ||
Printable materials | Any soft material can be printed. For example: ceiling soft film, leather, wallpaper, wall cloth, textile cloth, light sheet, car sticker, film, canvas, etc. | ||
Working environment | Temperature: 20℃~30℃, humidity: 35%RH~65%RH | ||
Equipment size | L4360mm*W1400mm*H1420 | ||
Packing size | L4390mm*W1430mm*H1450 | ||
Equipment net weight | 1500kg | ||
Equipment gross weight | 1800kg | ||
Product Features:
1. Printing width 1.8 meters, equipped with Konica 1024i high-speed printhead, variable ink drop technology
2. Imported dual linear high-precision guide rails & sliders + dual servo AC motors
3. Imported color management software, printhead aging color compensation function, ink saving/intelligent typesetting function, higher color reproduction (four-color reproduction of pure "gold/silver")
4. Patented high-sensitivity printhead anti-collision system; Korean imported LED water-cooled UV curing lamp;
5. Double inflatable shaft + double tension floating rod front and back retracting system, high-speed material feeding without deviation or wrinkling, higher stepping accuracy
6. Standard high-power static eliminator, effectively eliminates problems such as flying ink and blurring caused by static electricity of materials
7. The printing platform has segmented independent adsorption and independent adjustment of adsorption size, and with a powerful silent turbo blower, it can adapt to the adsorption of various thick and thin materials and complex materials
