Konica HS2000 (KM1024i SHE) Printhead

$1,628.00 - 1,679.00

Description

Product Specifications

Technology	Piezo Drop On-Demand
Native resolution	360npi(90npi x 4lines)
Cal. Droplet Size	6 pl
Grayscale maximum drop count	8 drops
Total nozzles	1024(256nozzles x 4lines)
Print width	72mm
Firing Frequency	50 kHz
Maximum jetting frequency	60 kHz
Ink compatibility	UV
Dimensions	W131mm x D17mm x H94mm
Weight	150g
Heater	Integrated

Description:

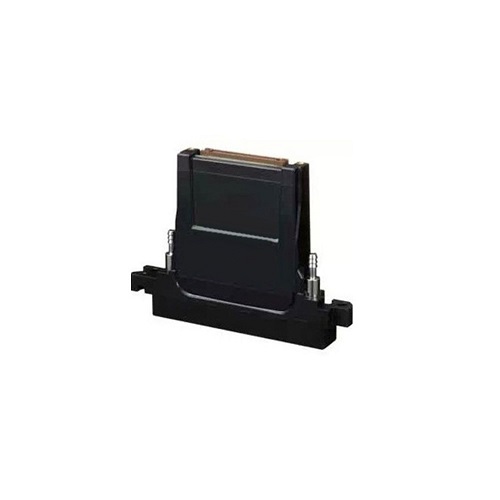

The Konica Minolta KM HS2000 printhead is a piezo on-demand printhead featuring an all-nozzle Independent drive system with a multi-line structure. It can be used as a replacement of the KM1024i SHE 6PL printheads.

Printer Compatibility:

Agfa Anapurna (100, H2500i LED, M2050i, M2500i, M3200i )
Allwin (S320UV, S500UV, UVT 2030, UVT 2512, UVT+ 2030, UVT+ 2512)
Docan H1000
Flora HJ 5000UV
Human Digital Technology M-JET
IIJ ColourPrint-72
JHF Vista (R3300, R6000, V300UV, V500UV)
Optimum Digital KR Hybrid UV
Skyjet (FT2512i, FT3020i)
Taimes T50UV
Yicong YD2512-KD
Flora (PP 2512UV, XTRA 330)

Remarks:

Original

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
