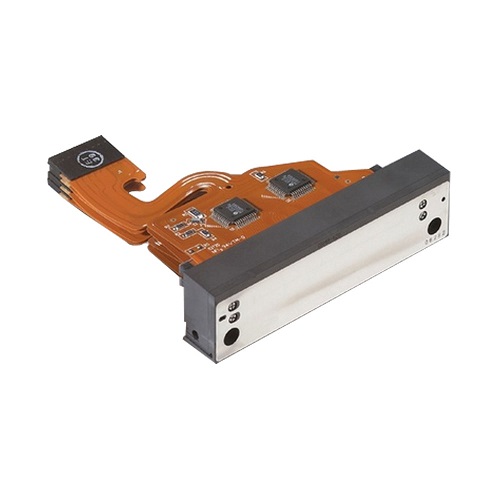

Spectra Galaxy JA 256 50 AAA Printhead

Description:

The Spectra calaxy JA 256 /50 AAA is a high performance, robust and reliable jetting assembly designed for a broad range of wide format printers at resolutions up to 600 dpi.

Four electrically independent piezoelectric slices, each with 64 addressable channels, are combined to provide a total of 256 nozzles, The nozzles are arranged in a single line, at a native 0.010 inch distance between nozzles.

The fluid interface and electrical connection are at the top of the jetting assembly and several mounting configurations are

possible.

This jetting assembly contains serial-to-parallel converters for selecting which jets to fire; all jets can be fired simultaneously or

individually.

To be used with: Aafa Anapurna Xl2, Dili Neo Venus Uvv-2506 (cw), Dupont cromaprint 22uv Keundo supra0 3300-UVVUTEk PV200 / 600 (only for white ink) /PV320 /400, PrismaJet P22, Teckwin Teckuv s2400 /TeckUv s3000, inwear L3508GBuskro BK1700

Remarks: original

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
