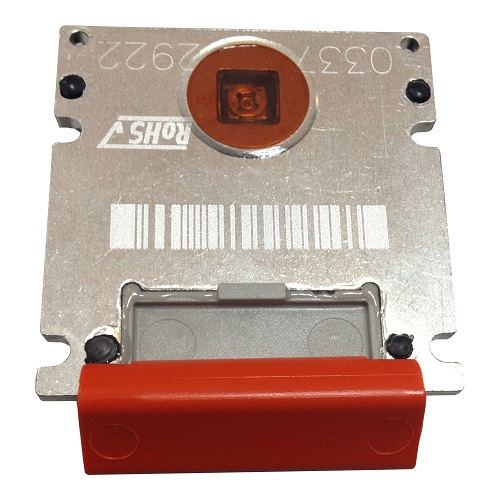

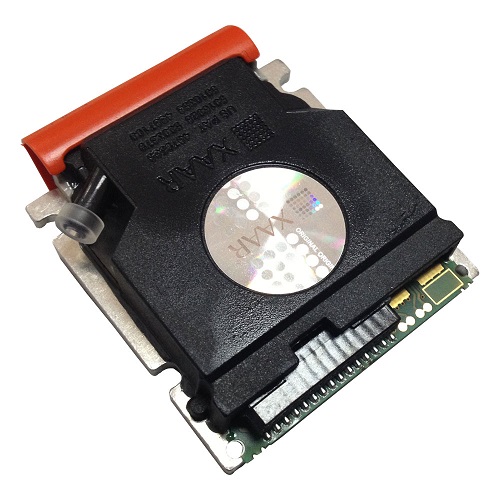

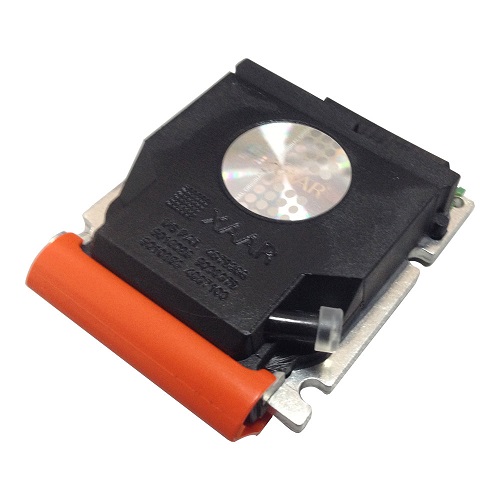

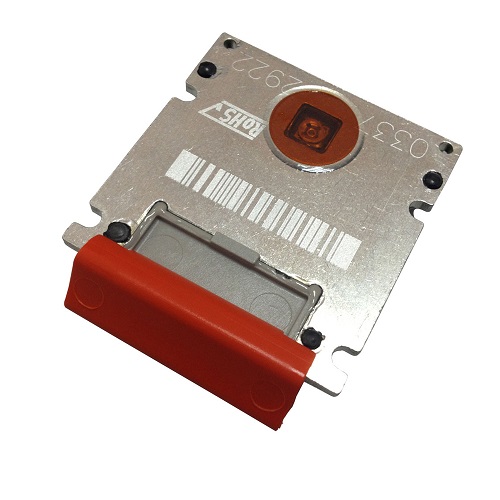

Original New Xaar 128/40W Printhead (Light Grey)

Description:

This is original xaar 128 360dpi 40pl Print Head. For years the Xaar 128 set the industry standard by offering a consistent, simple and highly flexible inkjet solution for a variety of applications across the coding & marking and wide-format graphics industries. The Xaar 128 printhead is available in two drop volume variants (40 pL and 80 pL) and is compatible with a range of UV, solvent and oil-based inks.
The ink connections on the Xaar 128 and Xaar Irix are 3.1 mm in diameter, therefore the recommendation for the tubing is for 3mm ID tubing. The exact choice of tubing would depend upon the inks you are using.

To be used with:

Wit-color 720T / WIT-COLOR 860+, AllSign HX3204S / HX3208S / HX3212S / HX3216S, Teckwin TeckStar 18 / TeckStar 25, DGI XP-3204T

Remarks:

Original

Features:

Light and powerful
Compact footprint, light carriage and weighing only 15.5g, it is ideal for applications where weight is a key design requirement
• Up to 8.3 kHz firing frequency
• Available in two drop-size variants (40 pL and 80 pL)
• Robust and cost-effective solution
• 360 dpi (native) printhead resolution.

Easy to integrate
• Adaptable across multiple digital print markets
• Compatible with an extensive range of oil-based, solvent-based and UV inks
• Simple electronic interface promoting quick and easy integration
• Wide operating latitude for lower-cost inks.

Application:

The narrow print swathe, ink compatibility and ease of use of the Xaar 128 printhead mean it is extensively utilised for a diverse range of applications including:
• Coding & marking
• Wide-format graphics
• Indoor signage
• Outdoor graphics.

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
