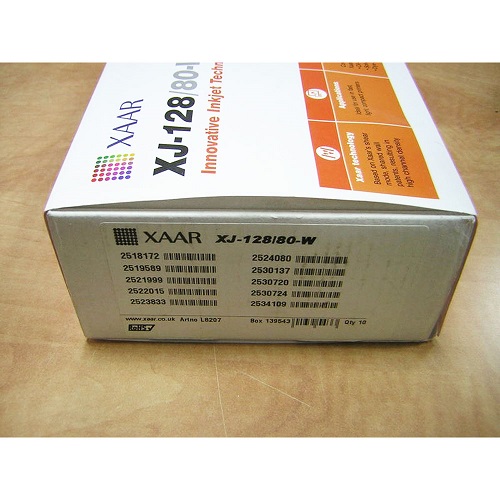

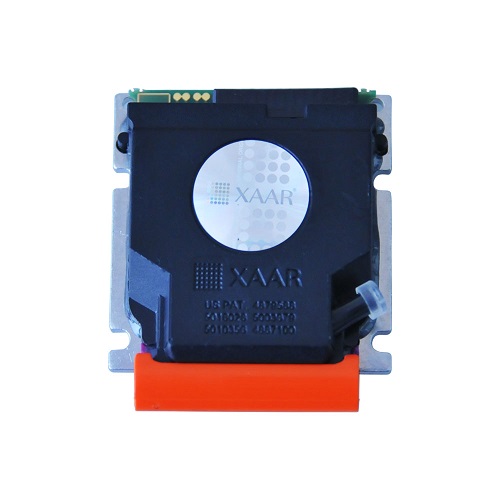

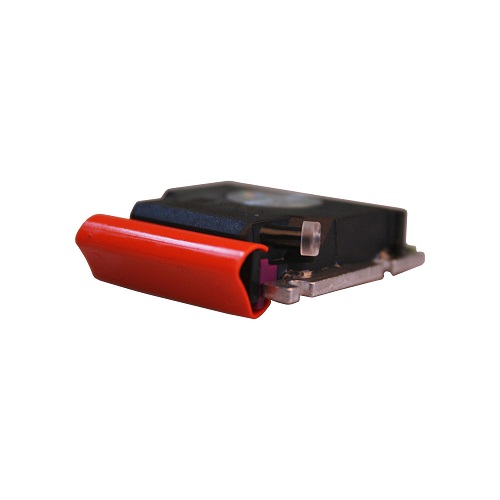

Xaar 128/80W Printhead (Purple)

Description:

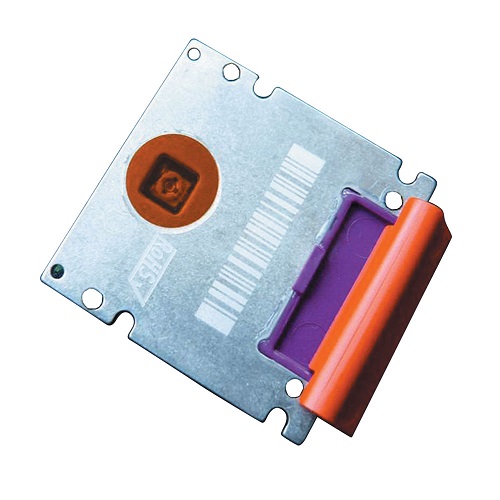

The Xaar Irix Core 80W printhead with purple insulator. For years the Xaar 128 set the industry standard by offering a consistent, simple and highly flexible inkjet solution for a variety of applications across the coding & marking and wide-format graphics industries. The Xaar 128 printhead is available in two drop volume variants (40 pL and 80 pL) and is compatible with a range of UV, solvent and oil-based inks.
This printhead serves as a direct replacement for the discontinued Xaar XP12800005 and XP12800006 heads, and can be used instead of XP12800071, offering identical performance, quality and printer compatibility. No firmware changes are required in the printer software either.
The ink connections on the Xaar 128 and Xaar Irix are 3.1 mm in diameter, therefore the recommendation for the tubing is for 3mm ID tubing. The exact choice of tubing would depend upon the inks you are using.

Remarks:

Original

Features:

Light and powerful
Compact footprint, light carriage and weighing only 15.5 g, it is ideal for applications where weight is a key design requirement
• Up to 8.3 kHz firing frequency
• Available in two drop-size variants (40 pL and 80 pL)
• Robust and cost effective solution
• 185 dpi (native) printhead resolution.
Easy to integrate
• Adaptable across multiple digital print markets
• Compatible with an extensive range of oil-based, solvent-based and UV inks

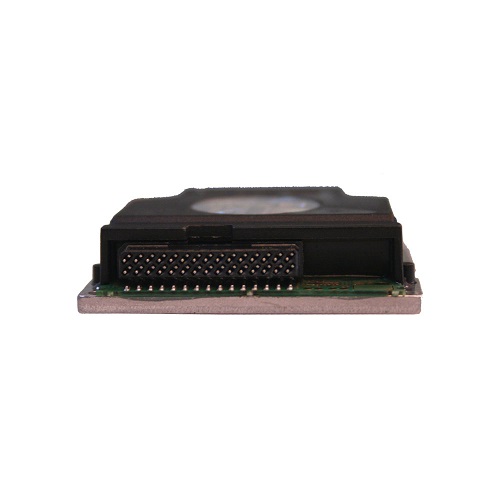

• Simple electronic interface promoting quick and easy integration
• Wide operating latitude for lower cost inks.

To be used for:

Large Format Printer, Infiniti; Liyu; Limitless; DGI Spacejet 3250P, NUR Fresco III, Allsign E-Type, Zhongye ZY-7208 / ZY-7212 / ZY-7212+ / ZY-7216 / ZY-7216+ / ZY-7224 / ZY-7224+, Ampla Digital Targa Plus

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
