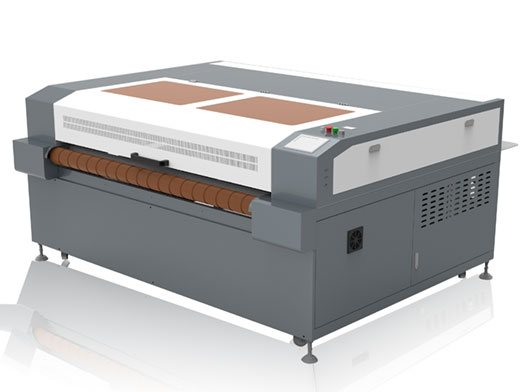

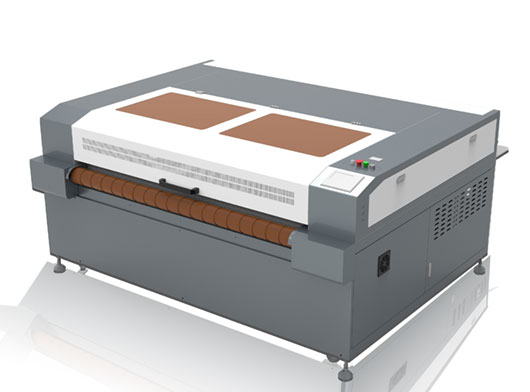

Automatic Feed Laser Cutting Machine

Applications: Co2 laser cutting machines are suitable for laser processing on non-metallic materials such as marble, fabric, leather, rubber, bamboo, crystal, horn, cardboard, plexiglass, and plastic. They are also suitable for cutting and engraving leather and leather materials in the home furnishing fabric, handbags, gloves, clothing, embroidery, and fabric toys industries. They are also suitable for fine cutting of non-metallic thin sheets such as acrylic sheets, handicrafts, models, advertising, decoration, and medium-density decorative panels in the electrical and plastic industries.

Description

Product Features:

1. The automatic feeding laser cutting machine utilizes a crawler-type work platform, offering fast cutting speeds, high material utilization, and continuous feeding.

2. The machine is suitable for use in the clothing, textile, and leather industries. Primarily used for cutting and engraving non-metal materials such as sheet metal, fabric, and leather.

3. Automatic exhaust and fume extraction creates a healthy, comfortable, and environmentally friendly processing environment.

4. Large-format laser cutting produces smooth, precise cuts, suitable for cutting and processing entire pieces of fabric.

5. The feeding system utilizes a special straight-line mesh belt table and a crawler-type automatic feeder, allowing for smooth movement of workpieces across the cutting surface.

6. Optional CCD camera scanning and cutting device available.

Applicable Materials: Fabric, leather, filter cloth, footwear, home textiles, clothing, industrial fabrics, carpet, plush toys, paper, automotive interiors, furniture upholstery, embroidery, and other non-metallic materials.

Specifications and parameters:

Models	CM1610
Working Area (mm)	1600 X 1000
Laser Power	80W/100W/130W/150W
Laser Tube	Sealed CO2 laser tube
Cooling	CW-3000/CW-5000/CW-5200 water chiller
Drive	Tepper Motor
Engraving Speed	0-1000mm/s
Cutting Speed	0-600mm/s
Positioning Accuracy	<0.01mm
Resolution	2500DPI
Supported Software	ArtCut, PhotoShop, CoreDraw, AutoCAD
Supported File Types	PLT, DXF, BMP, AI, DST
Interface	USB/Ethernet
Operating Voltage	220V/50-60HZ
Working Environment	Temperature: 0°C-45°C, Humidity: 5%-95%
Dimensions (mm)	2930 X 2000 X 1058	3630 X 2000 X 1058	3630 X 2260 X 1058
Gross Weight (kg)	800	900	980
