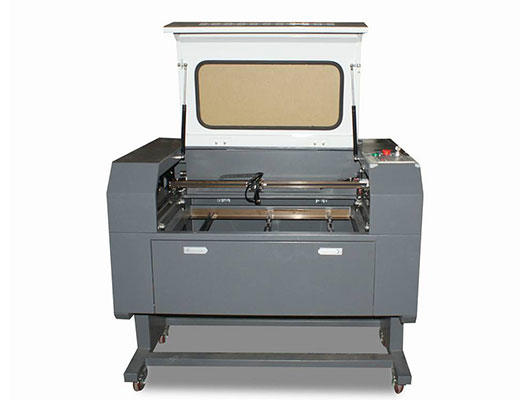

Economical laser machine

Applications: Co2 laser machine applications: Laser processing on non-metallic materials such as marble, fabric, leather, rubber, bamboo, crystal, horn, cardboard, plexiglass, and plastic. Suitable for cutting and engraving leather and leather materials in home furnishing fabrics, handbags, gloves, clothing, embroidery, cloth toys, and the toy industry. Suitable for fine cutting of non-metallic thin plates such as acrylic, handicrafts, models, advertising, decoration, and medium-density decorative board in the electrical and plastic industries.

Description

Features:

1. The XY axis utilizes three-wire linear 15-axis square rails for stable operation, faster speed, and higher precision.

2. Utilizes a 57mm stepper motor for smooth operation and faster speed.

3. Utilizes an industrial-grade laser head with a stable, small-diameter beam spot for excellent engraving and cutting results.

4. Taizhi/Ruida control system and true-color screen offer rich display content, excellent hardware stability, and are resistant to high voltage and static electricity.

5. Optical path components utilize industrial-grade laser lenses for easier adjustment and more stable operation.

6. A leading-edge laser tube offers a focused beam, a fine beam spot, strong penetration, and a service life of up to 10,000 hours.

7. Air-blown flame-retardant design prevents lens contamination and smoke spillage.

8. Optional dual working platforms, with blade or honeycomb platforms, accommodate processing of various materials.

Applicable Materials:

Wood, bamboo slips, jade, marble, plexiglass, two-color boards, crystal, plastic, clothing, paper, leather, rubber, ceramic glass, plastic film, and other non-metallic materials.

Specifications and parameters:

Models	X700C	X900C	X1390C
Working Area (mm)	700 X 500	1000 X 600	1300 X 900
Laser Power	80W/100W/130W/150W
Laser Tube	Sealed CO2 laser tube
Cooling	CW-3000/CW-5000/CW-5200 water chiller
Working Platform	Blade/Cellular
Drive	tepper Motor
Engraving Speed	0-1000mm/s
Cutting Speed	0-600mm/s
Positioning Accuracy	<0.01mm
Resolution	2500DPI
Supported Software	ArtCut, PhotoShop, CoreDraw, AutoCAD
Supported File Types	PLT, DXF, BMP, AI, DST
Interface	USB/Ethernet
Operating Voltage	220V/50-60HZ
Working Environment	Temperature: 0°C-45°C, Humidity: 5%-95%
Dimensions (mm)	1442 X 927 X 1020	1600 X 1040 X 983	1900 X 1340 X 983
Gross Weight (kg)	180	240	300
