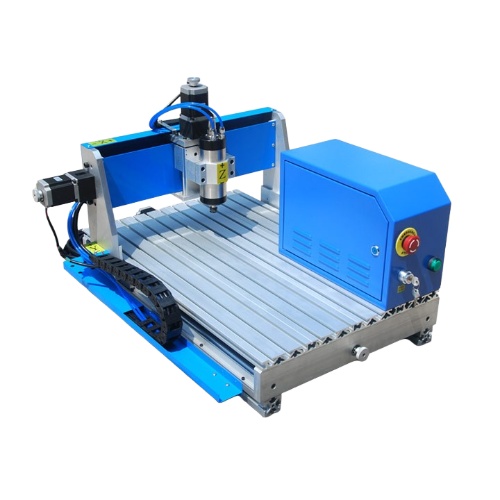

RS-6090 Desktop cnc router

The main feature of the desktop-cnc-router is the small and simple structure under the special spindle design. Various materials can be applied by the machine, such as PVC, Acrylic, wood, PCB, even some soft metal like aluminum and copper. Besides, all the machines are equipped with DSP handle and USB connection, which will bring great convenience by reading USB memory directly (Ncstudio and Mach 3 are also good choices). In addition, the machine can achieve the performance of good resolution and less noise with ball screw.

Model: RS-6090

X, Y, Z Guide: Rolling ball screw

Drive type: Stepper motor

X, Y, Z Work Area(mm): 615*905*90

Machine dimension(mm): 1300*950*580

Max Speed: 4000mm/min

Spindle: 800W high speed

Max feeding height: 90mm

Interface: DSP handle (read USB memory directly ) / NC Studio / Mach3

Repeatability(mm): ≦ 0.0 5 mm

Command code: HPGL, G-code

Spindle tools: ф 3.175, ф 6

Power: AC220V ± 10% / 50~60Hz

Warranty: 12 Months(6 months for Spindle)
