Product Specifications
Product name | I3200-A1 | |
Ink type | Aqueous | |
Type | PrecisionCore MicroTFP printhead | |
Width x Depth x Height (mm) | 69.1 x 59.4 x 35.6 | |
Weight (g) | 82 | |
Number of nozzles (pieces) | 3200 | |
Nozzle pitch/nozzle row (inches) | 1/300 | |
Number of nozzle columns | 8 | |
Maximum number of ink colors supported | 4 colors | |
Resolution | 300dpi/row 600dpi/2 rows | |
Effective printing width (mm) | 33.8(1.33 inches) | |
Droplet ejection performance | Binary | 6pl at 43.2 kHz |
3 levels grey scale | 6.3 12.3pl at 21.6 kHz | |
4 levels grey scale | 3.8 6.1 9.4pl at 21.6 kHz | |
Viscosity range | 3-4 mPa/s | |
Positioning Mechanism | Reference hole | |
Product Features:
1.PrecisionCore Technology
①. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi /2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality.
②. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the per fectly round ink droplets are placed accurately and consistently.
2. Support for grey scale
Epson's unique Variable Sized Droplet Technology
(VSDT) delivers smooth gradation by freely control to
eject the droplet volume.
3.High resolution
Ink ejection of up to 4 colours realize with high resolution (600 dpi/colour). In addition to the I3200 has also been added to the lineup in order to meet the various customer needs.
4. High durability
PrecisionCore Print Head has proven high durability and extended service life by Epson's industrial printers.

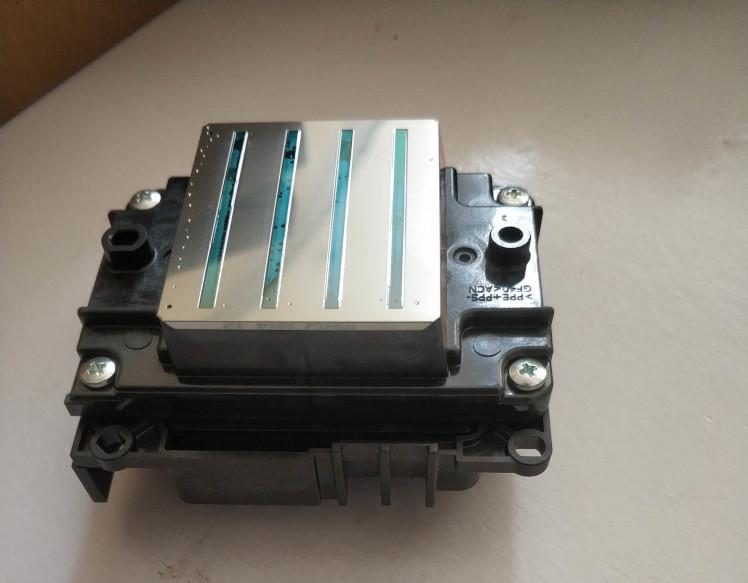

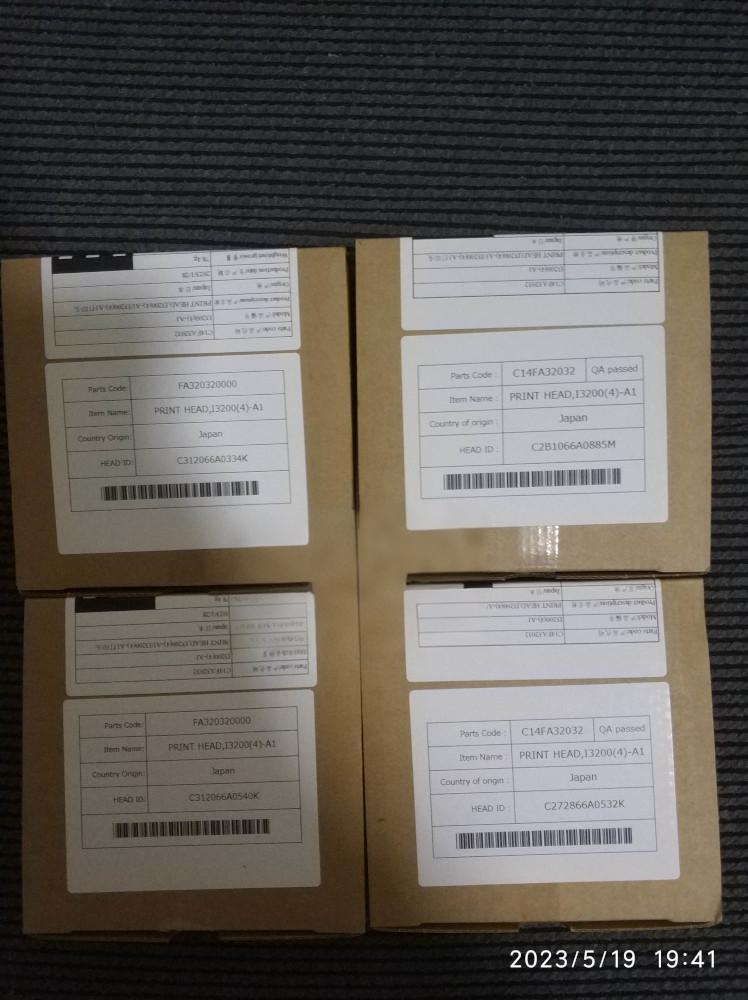

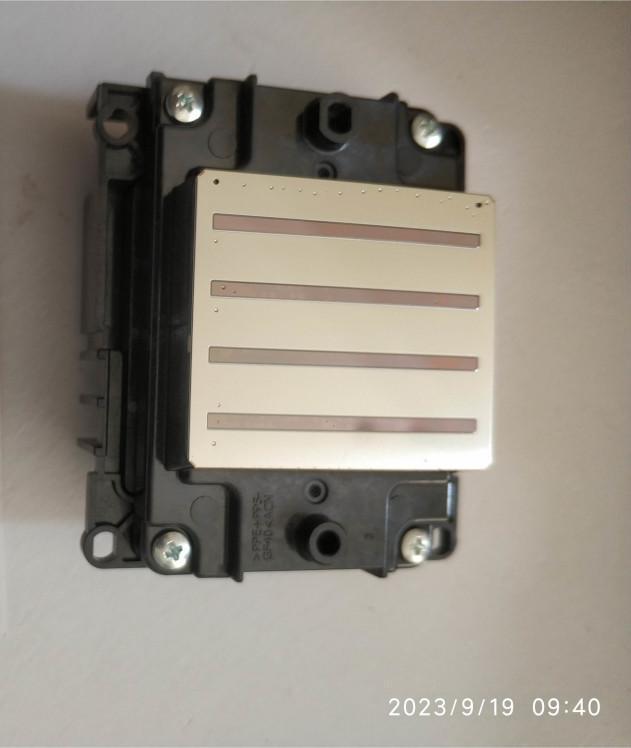

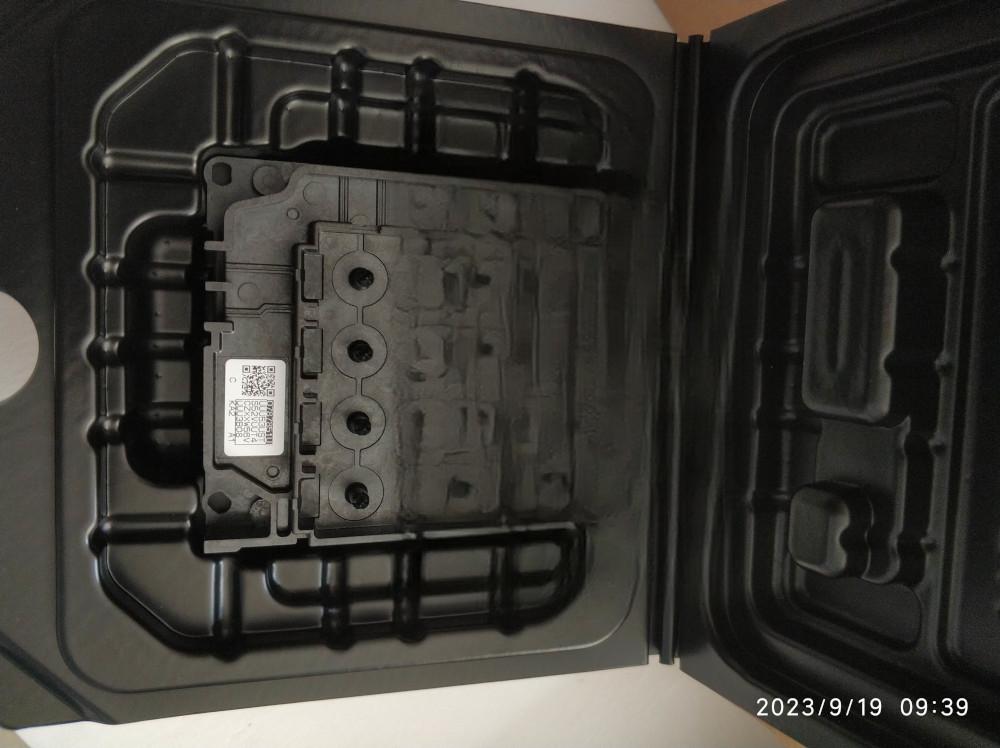

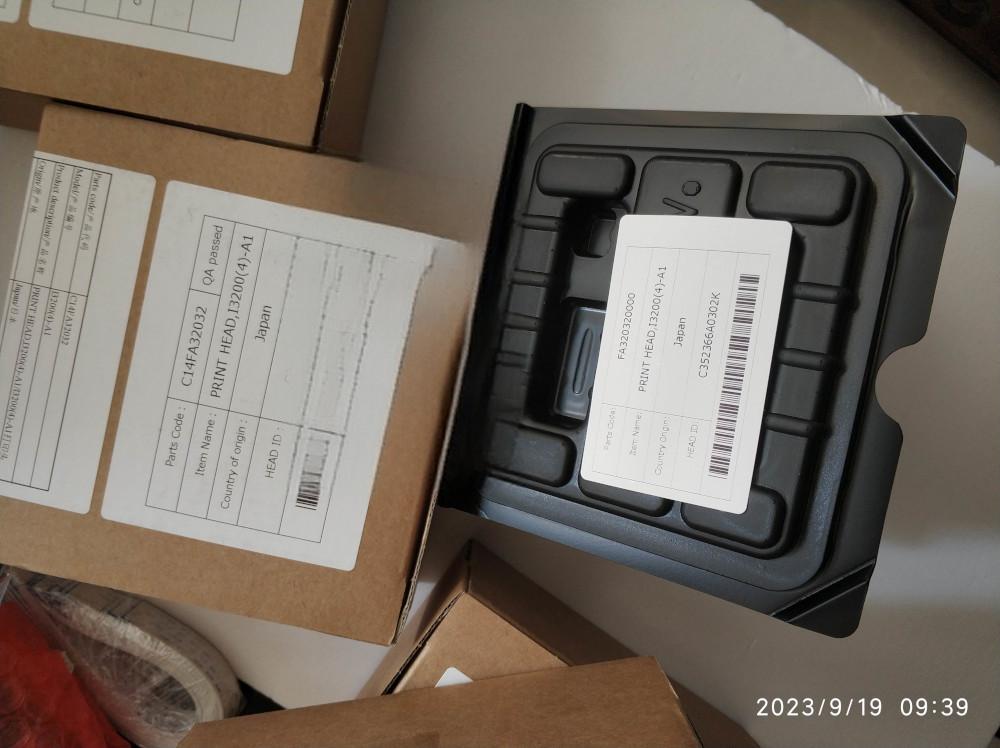

Photo of the packing and this printhead from our Packing and Delivery records:
