Product Specifications
Product name | I3200-U1 | |
Ink Type | UV | |
Type | PrecisionCore MicroTFP printhead | |
Width x Depth x Height | 69.1 x 59.4 x 35.6mm | |
Weight | 82g | |
Number of nozzles | 3200 | |
Nozzle pitch/nozzle row | 1/300 inch | |
Nozzle Resolution | 300 npi/row, 600 nip/2 rows | |
Max. Number of color inks | 4 colors | |
Effective print width | 33.8 mm(1.33 inches) | |
Binary | 5 pl at 43.2 kHz | |
3 levels grey scale | 6, 12.5 pl at 21.6 kHz | |
4 levels grey scale | 3.8, 6.2, 9.3 pl at 21.6 kHz | |
Viscosity range | 5-7 mPa/s | |
Positioning Mechanism | Reference hole | |
Description:
1.PrecisionCore Technology
①. MEMS manufacturing and thin film piezo elements can realize high precision and high density (600 npi /2 rows of nozzles). Contributes to compact, high-speed, high-quality, and high image quality.
②. Precision made of Epson unique MEMS nozzles and an ink flow path ensures the perfectly round ink droplets are placed accurately and consistently.
2. Support for grey scale
Epson's unique Variable Sized Droplet Technology(VSDT) delivers smooth gradation by freely control to eject the droplet volume.
3. High resolution
Ink ejection of up to 4 colours is realized with high resolution (600 dpi/colour). In addition to the I3200 has also been added to the lineup in order to meet the various customer needs.
4. High durability
PrecisionCore Print Head has proven high durability and extended service life in Epson's industrial printers.
Remarks:
Original
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.

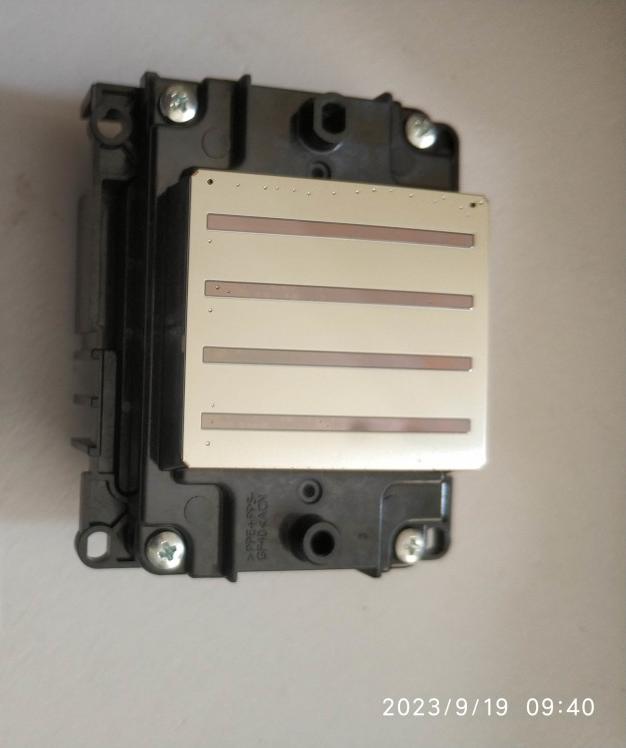

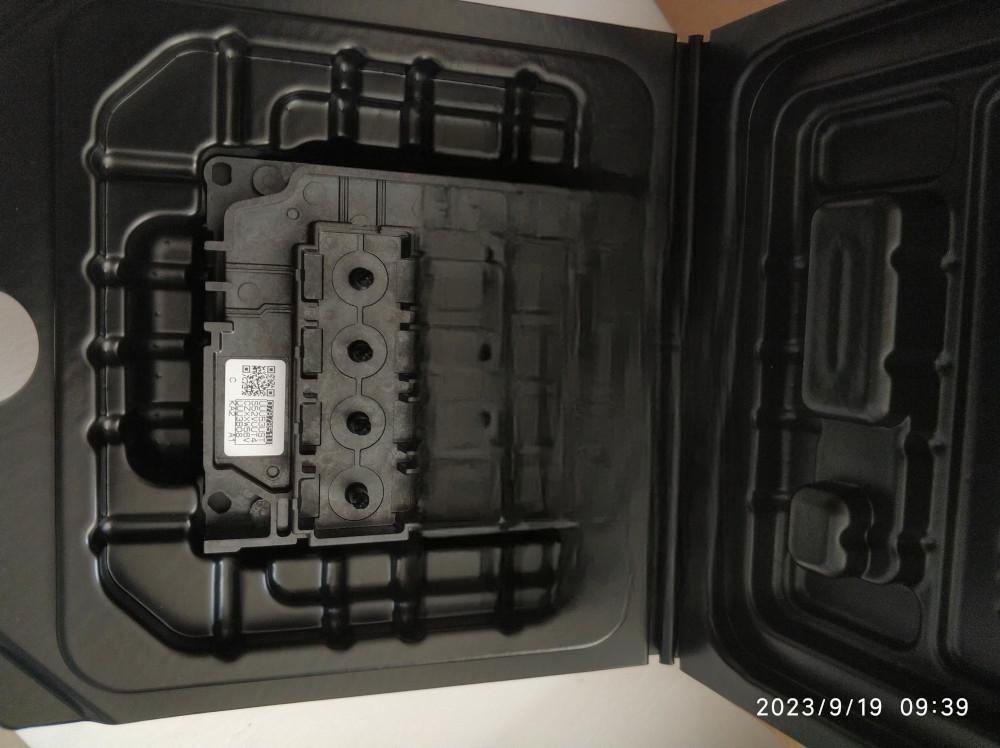

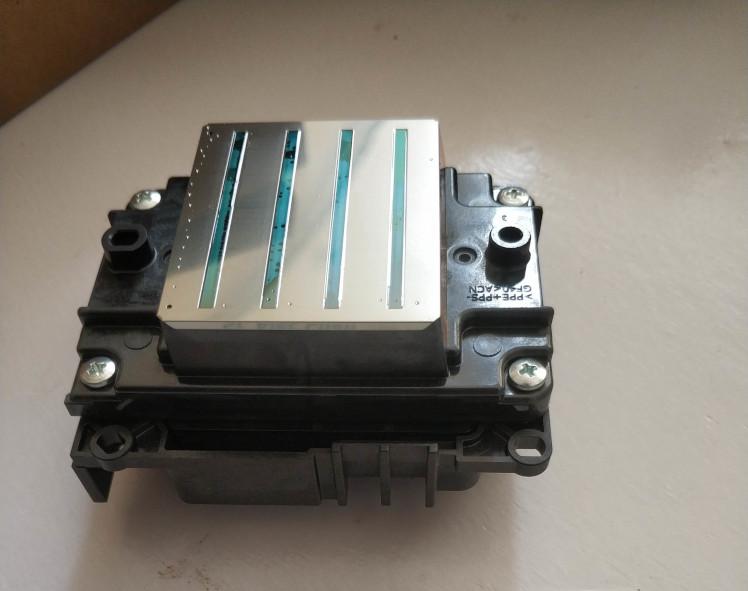

Photo of the packing and this printhead from our Packing and Delivery records:
