Product Specifications
Product name | F1440-A1 |
Ink type | AQ ink |
Width x Depth x Height (mm) | 106x49.7x41.7 |
Weight (g) | 97 |
Number of nozzles (pieces) | 1440 |
Distance between nozzles (inches) | 180 |
Number of nozzle columns | 8 |
Maximum number of ink colors supported | 8 colors (180dpi/color) |
Resolution | 180dpi/1 column 360dpi/2 columns |
Effective printing width (mm) | 25.4 |
Jet frequency (kHz) | 43 (single point), 14.4 (Multi) |
Ink droplet volume (pl) | 3.8-7-14-22 |
Corresponding ink viscosity (mPa/s) | 4~5 |
Ink recirculation | Not available |
Internal heater | Not available |

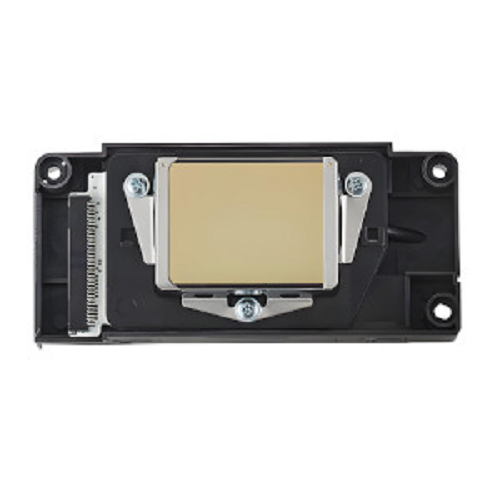

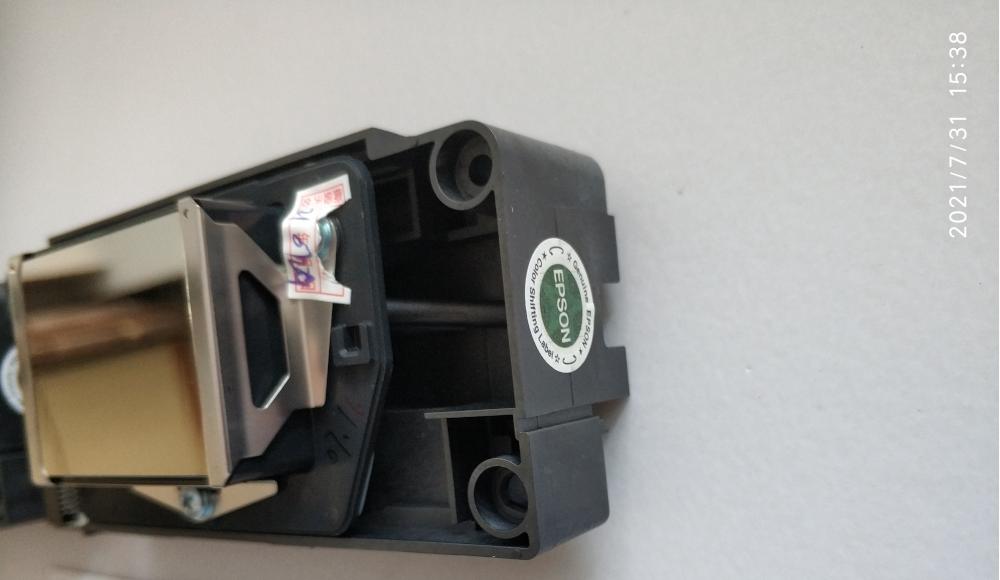

Printhead Model Name: DX5,the Epson F186000 Printhead,Current model is F1440-A1,this is DX5 Un-locked printhead,work for all Chinese printers like Galaxy (sid triton),Witcolor,Thunderjet,Gongzheng,Allwin,Myjet,Zhongye,Locor(lecai),Britomatics(kingfisher),Xuli,YONGLI,Micolor,Xenons,Human(ejet),Skycolor,Astarjet,SmartColor etc.
Compatible Ink for this head: Eco-solvent ink,UV ink,water based ink,sublimation ink,UV Ink,DTF Ink.

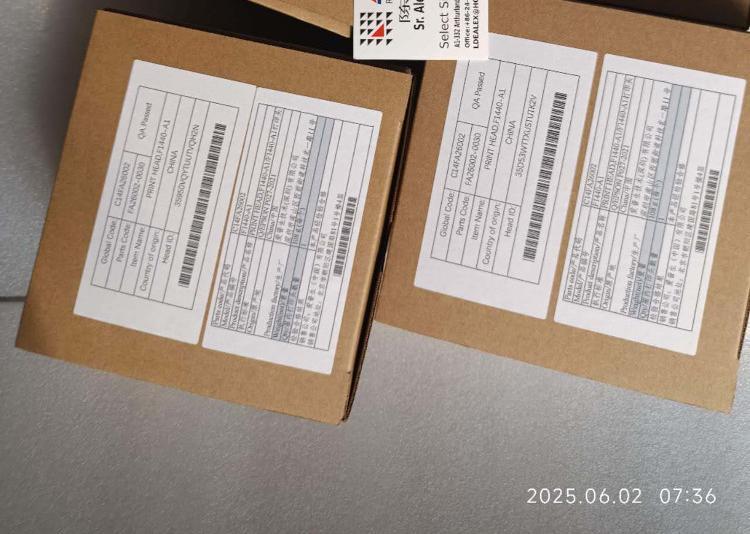

Delivery in 02 Jun 2025(3 dx5 with 1 i3200) :

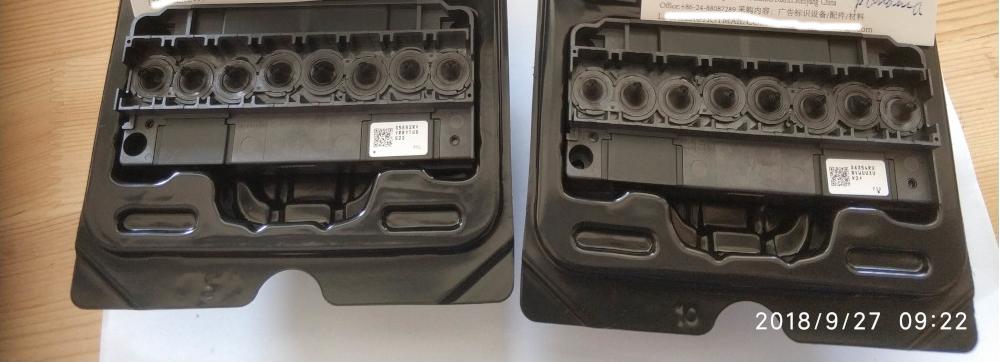

Delivery in 2018:
Delivery record in 2021：

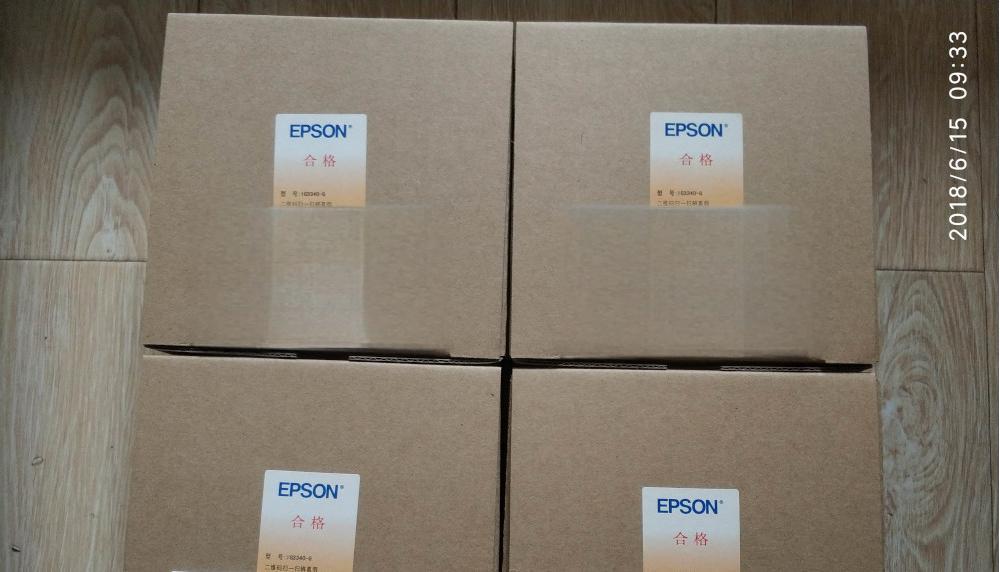

DX5 packing before 2020 normally as below:

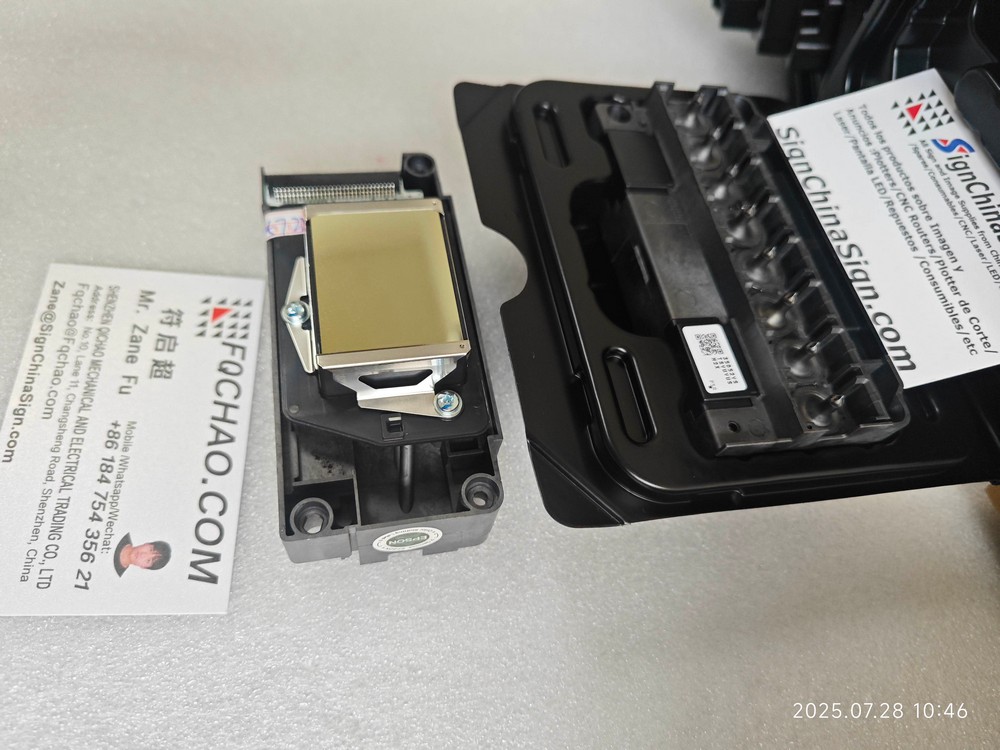

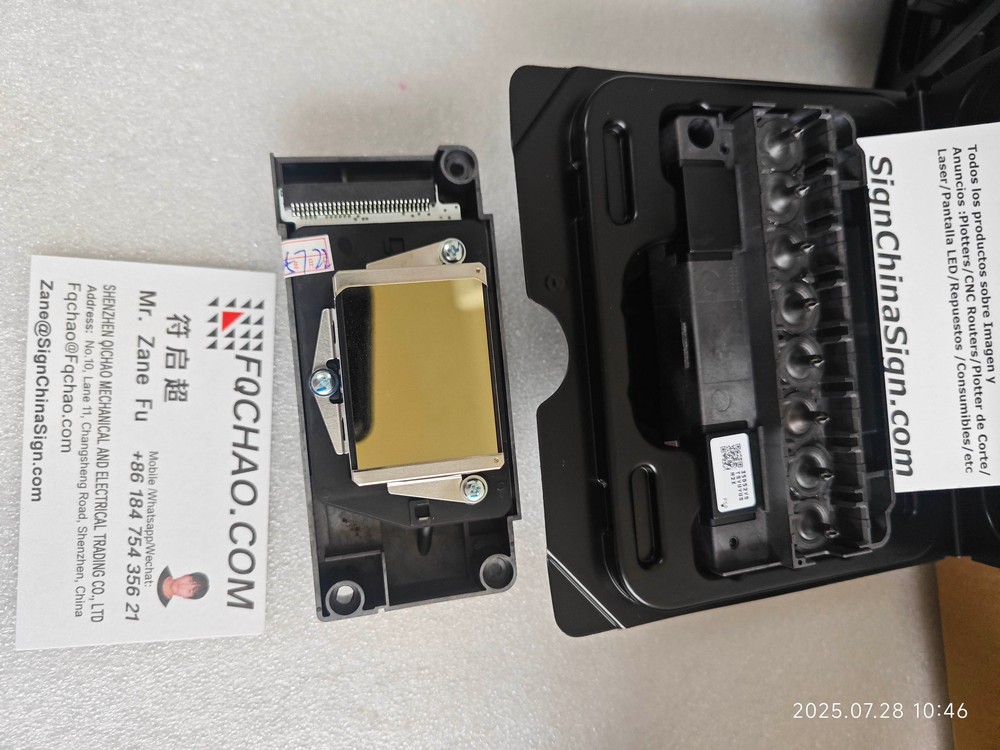

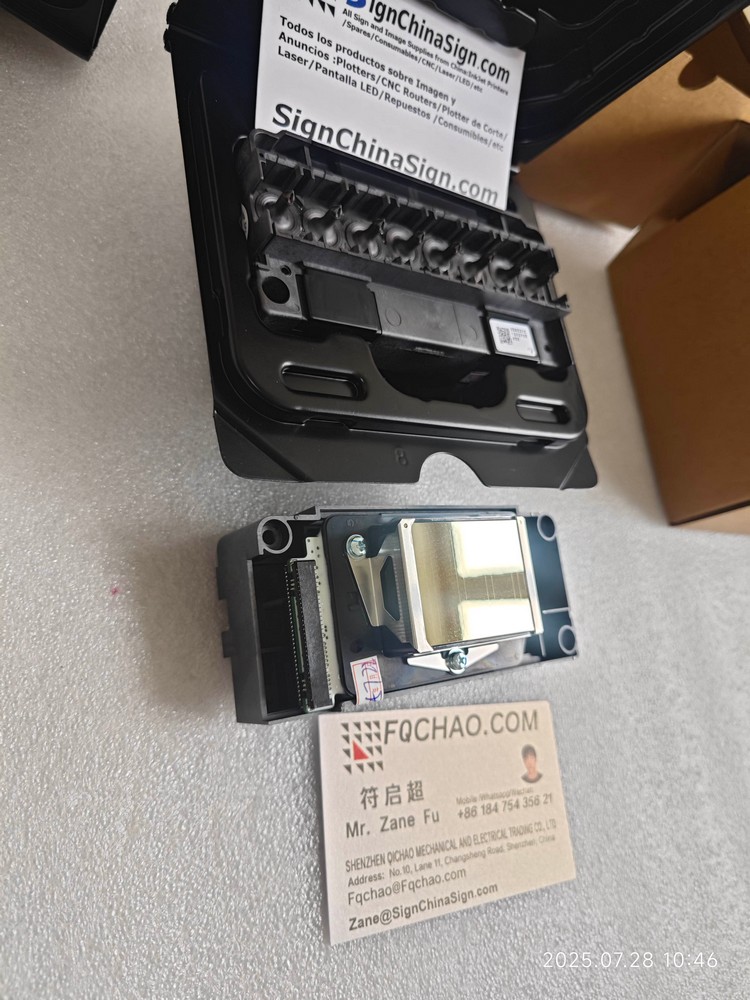

Right now the DX5 packing in Epson box as below:
