Product Specifications
Size | 63(W)x63(D)x16.2(H)mm(excluding cables) |
Head materials | SST, Ni & Epoxy adhesive (Direct contact with ink) |
Nozzle plate surface | Non-coated SST |
Number of nozzles | 2x192 channels |
Nozzle spacing A: Within a row(color) B: Row to row offset C: Row to row distance |
0.1693 mm(1/150’’) 0.0846 mm(1/300’’) 0.5292 mm |
Ink inlet port | 2x dual ports |
Piezo type | D33 stacked PZT |
Drop ejection mode | Piston pusher with metallic diaphragm plate |
Integrated electronics | Low-voltage serial to high-voltage parallel converter with 2-bit shift resistors and transmission gate outputs |
Temperature control | Integrated heater and thermistor |
Operating temperature range | Up to 60 ℃ |
Compatible jetting fluids | Water, solvent, oil, UV curable |
Viscosity range | 10-12 cP(at operating temp.) |
Surface tension | 28-35 dynes/cm |
Native drop volume | 7 pico-liter |
Drop volume range/variation | 5-25 pico-liter with grey-scale/±10% |
Drop velocity nominal / variation | 8 m/sec±10% |
Crosstalk | 10% or less with all channels firing |
Jet straightness 1 sigma | < 3.5milli-radian from nozzle centerline |
Operating jetting frequency | Native drop; Up to 30kHz/Grey-scale; Up to 20kHz |
Life | 100 billion actuation’s per nozzle |
To be used with:
Agfa :Jeti 1224 HDC / :Jeti 1224 HDC FTR / :Jeti 3020 Titan FTR, Digitex Gunsjet SR1808 / Gunsjet SR2508 / Gunsjet SR3208 / Gunsjet SF1914 / Gunsjet UF4547, DYSS Apollo GH1600-08F / Apollo GH1600-08F / Apollo GH1600-08SF / Apollo GH1600-10FM / Apollo GH1600-12S / Apollo GH1600-12SFWFV / Apollo GH2200-08F / Apollo GH2200-08SF / Apollo GH2200-08SR / Apollo GH2200-10FM / Apollo GH2200-12S / Apollo GH2200-16SFWFV / Apollo GH2600-08F / Apollo GH2600-08SF / Apollo GH2600-10FM / Apollo GH2600-12S / Apollo GH2600-12SFWFV / Apollo GF2616-08F / Apollo GF2616-10FFW / Apollo GF2616-10FRW / Apollo GF2616-12F / Apollo GF2616-12S / Apollo GF2616-14SFW / Apollo GF2616-14SRW / Apollo GF2616-16F / Apollo GF2616-16SFWFV / Apollo GF2616-16SRWRV, Gandy Digital Domin8tor / Pred8tor, d.gen Teleios Grande, Ampla Digital Targa XT
Remarks:
Original
Description:

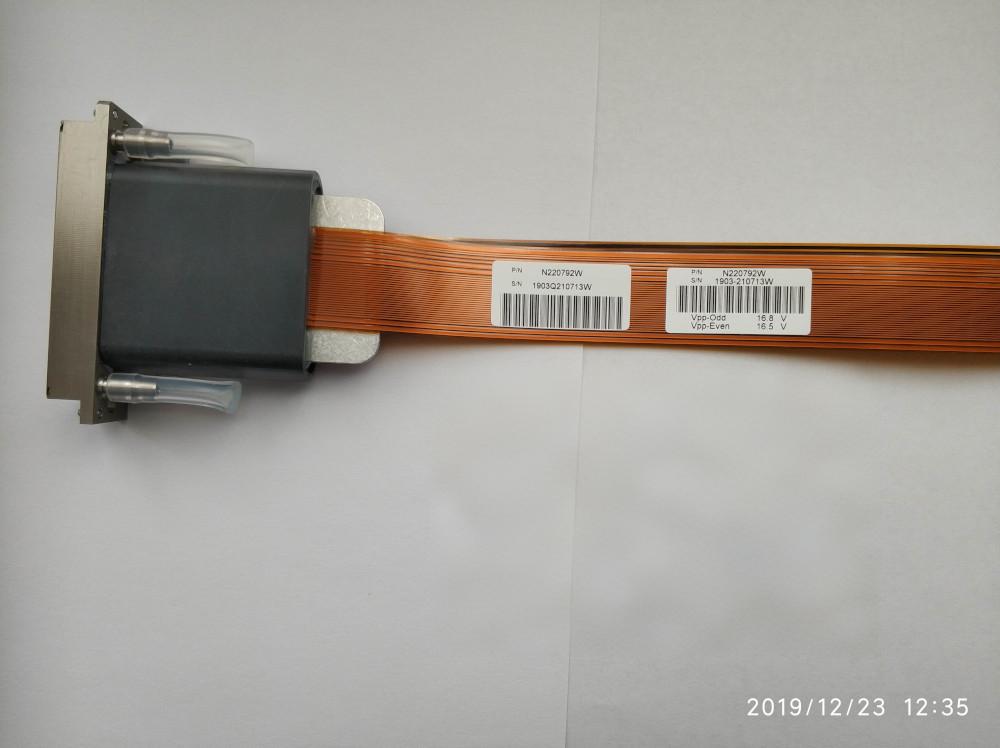

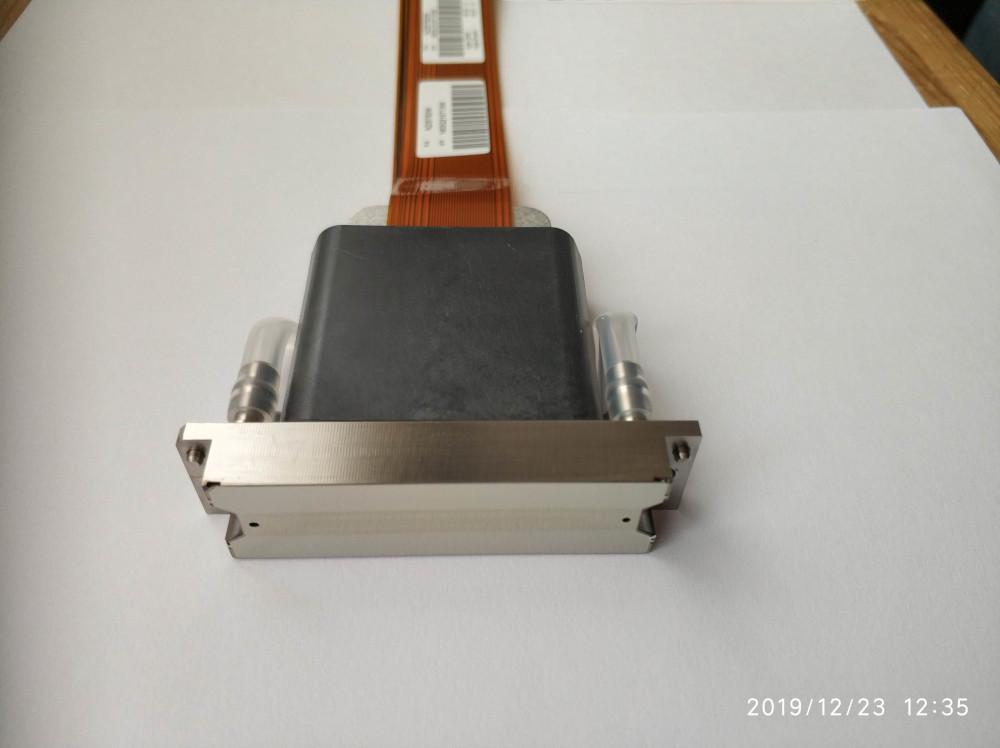

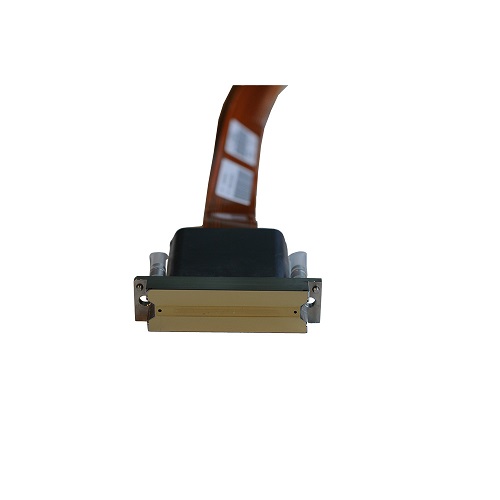

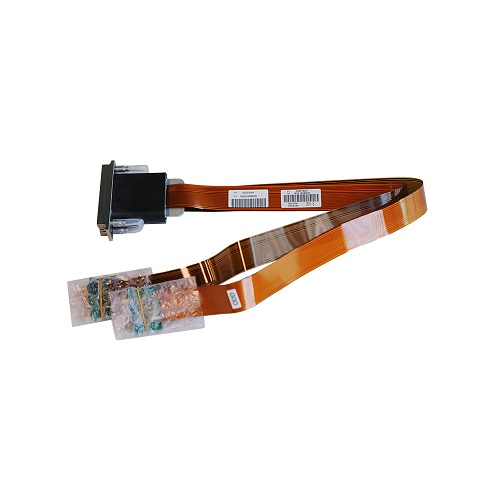

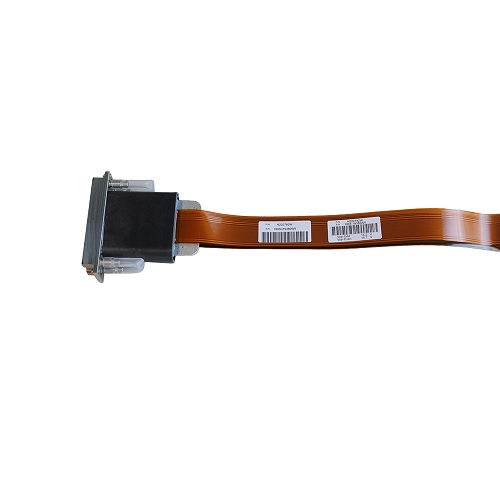

Ricoh GEN4 MH2420 printhead is suitable for a range of aqueous, solvent and UV printers. This printhead has an integrated heater and thermistor. This is Ricoh original printhead and it is covered by a manufacturer warranty. This cable including the connector is 44 cm long. The version with short cable has been discontinued. The long cable version is used as an alternative. The printhead comes with hose barb ink inlet that can be removed in. case o-ring sealed ink inlet are required. This printhead corresponds to Ricoh part numbers N220792W, N220792J, N220792S, N220792U or N220792E.
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
Application: work for all Chinese printers like below:
Agfa :Jeti 1224 HDC / :Jeti 1224 HDC FTR / :Jeti 3020 Titan FTR, Digitex Gunsjet SR1808 / Gunsjet SR2508 / Gunsjet SR3208 / Gunsjet SF1914 / Gunsjet UF4547, DYSS Apollo GH1600-08F / Apollo GH1600-08F / Apollo GH1600-08SF / Apollo GH1600-10FM / Apollo GH1600-12S / Apollo GH1600-12SFWFV / Apollo GH2200-08F / Apollo GH2200-08SF / Apollo GH2200-08SR / Apollo GH2200-10FM / Apollo GH2200-12S / Apollo GH2200-16SFWFV / Apollo GH2600-08F / Apollo GH2600-08SF / Apollo GH2600-10FM / Apollo GH2600-12S / Apollo GH2600-12SFWFV / Apollo GF2616-08F / Apollo GF2616-10FFW / Apollo GF2616-10FRW / Apollo GF2616-12F / Apollo GF2616-12S / Apollo GF2616-14SFW / Apollo GF2616-14SRW / Apollo GF2616-16F / Apollo GF2616-16SFWFV / Apollo GF2616-16SRWRV, Gandy Digital Domin8tor / Pred8tor, d.gen Teleios Grande, Ampla Digital Targa XT
Especially for those inkjet printer ith Amica system,etc
Compatible Ink for this head: Solvent ink,UV ink,

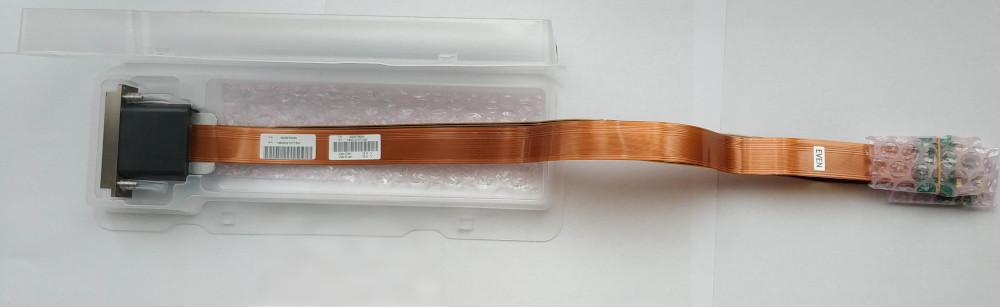

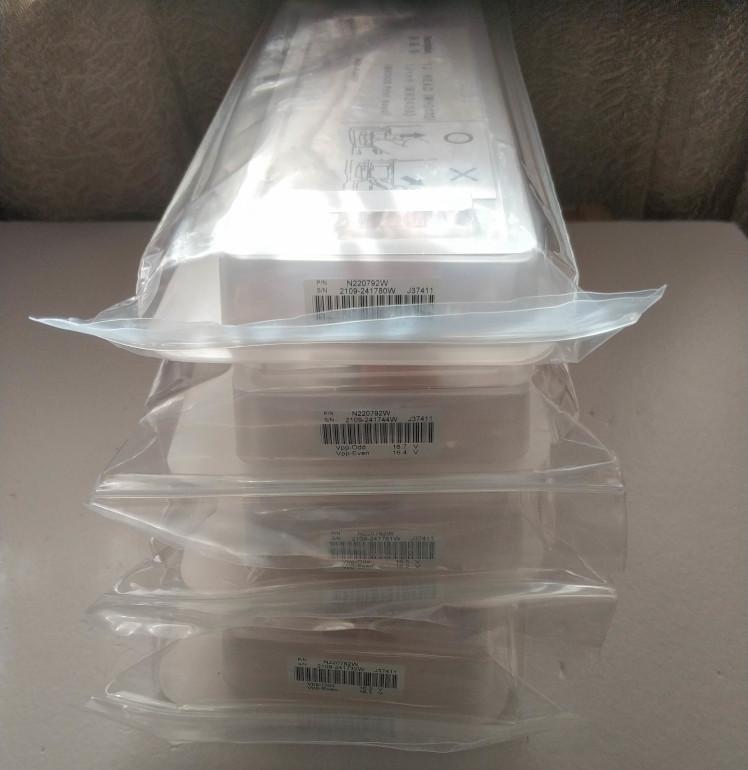

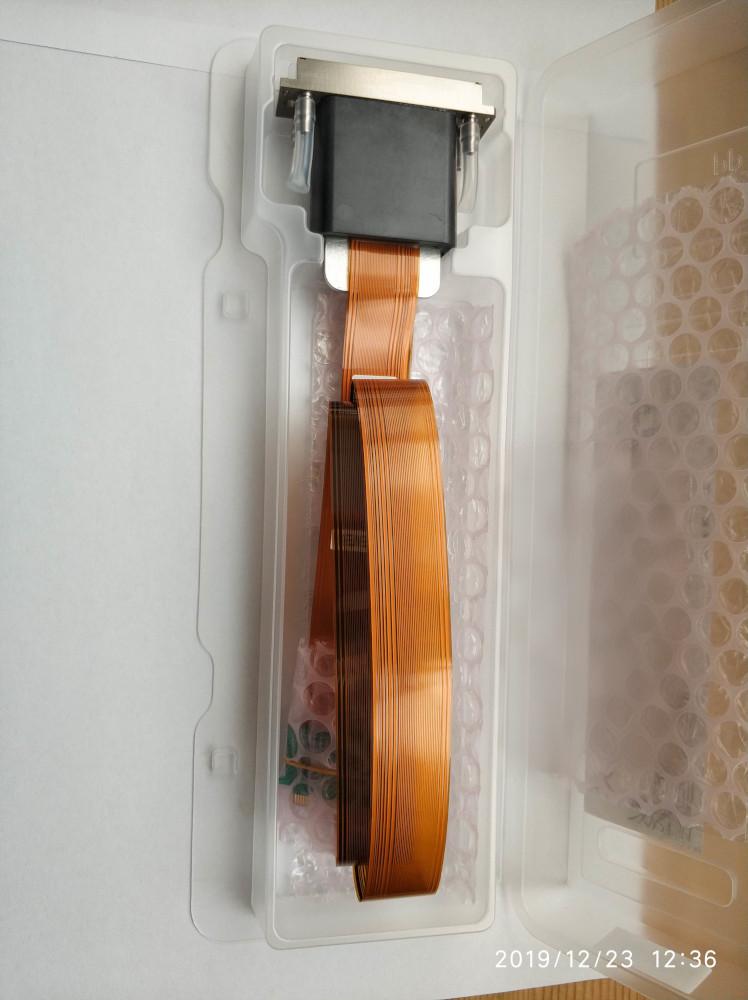

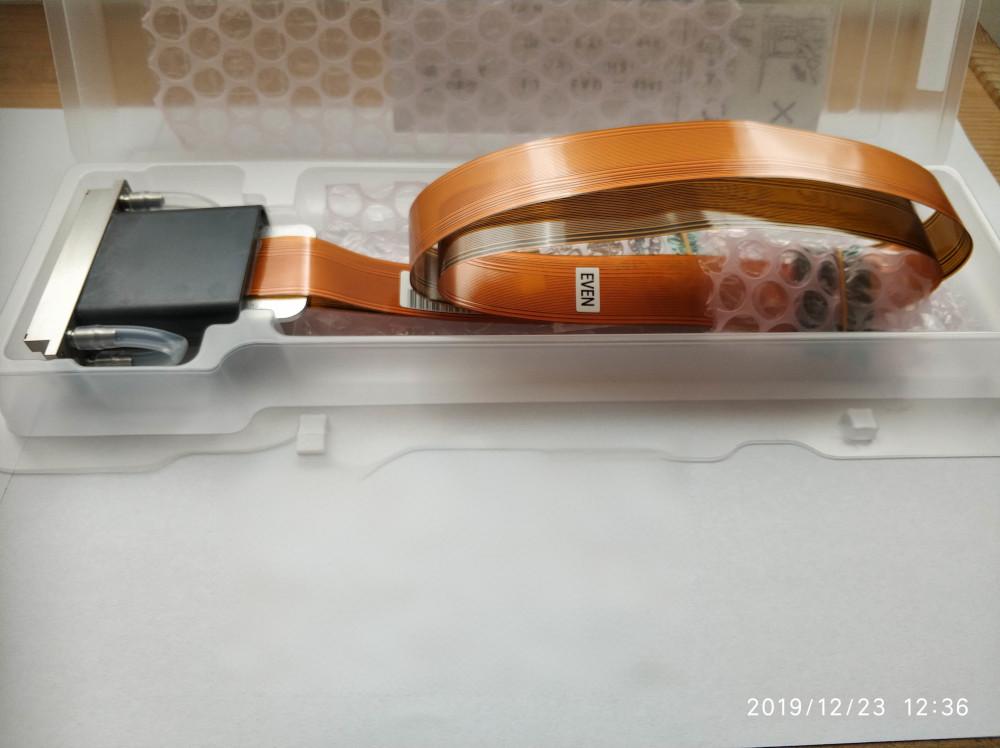

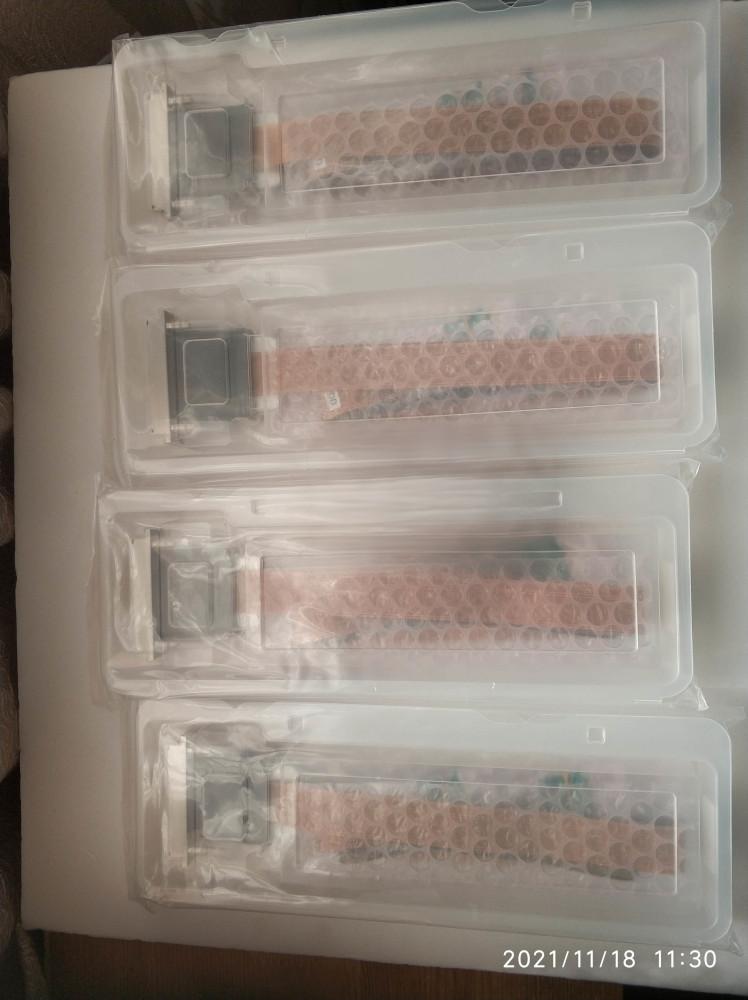

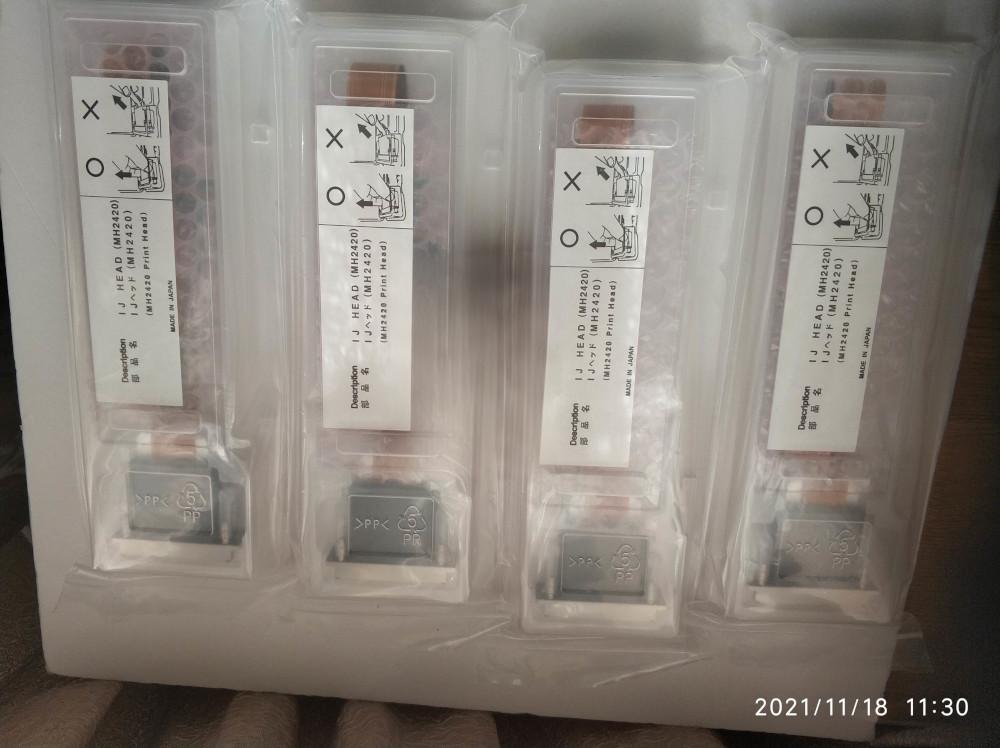

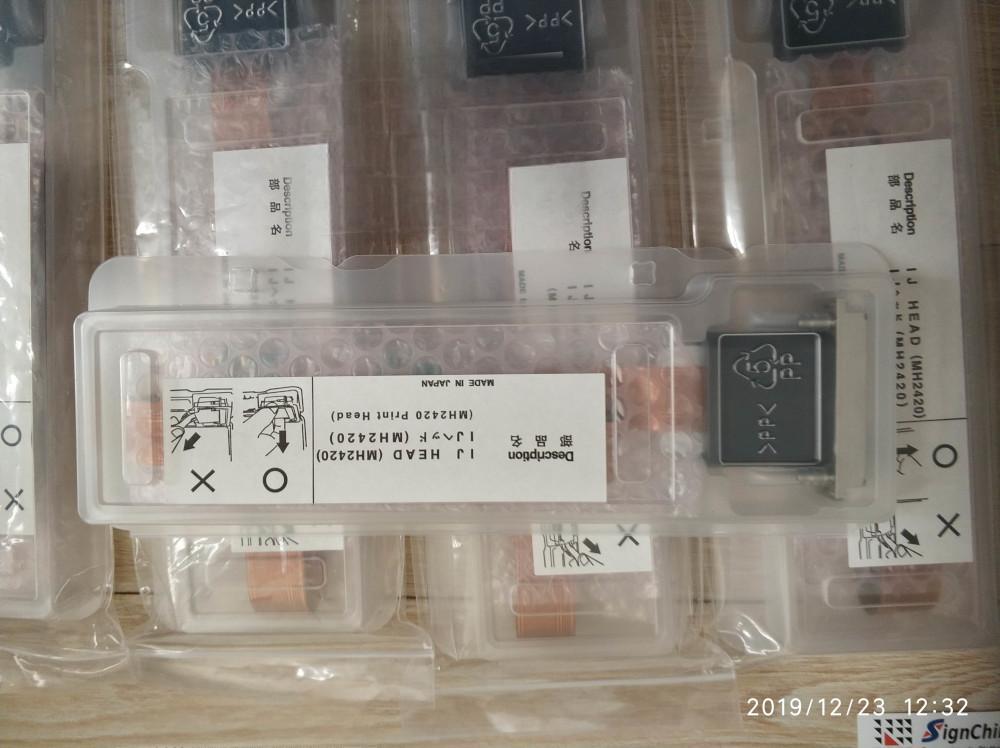

Photo about the packing and the detail of this printhead from our Delivery records:
