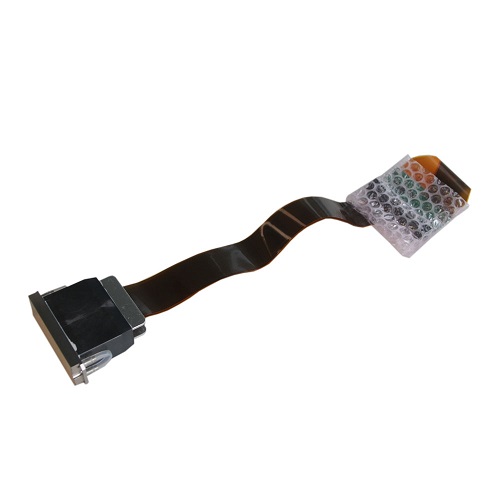

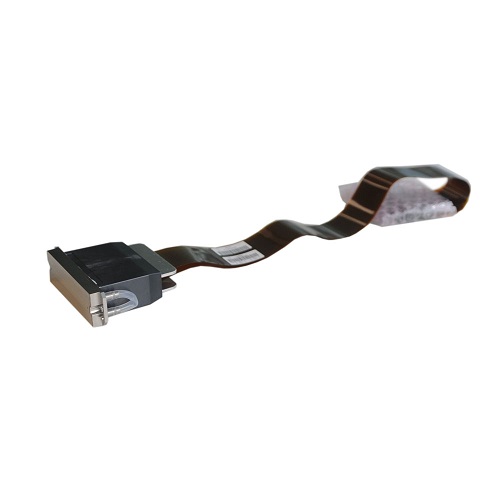

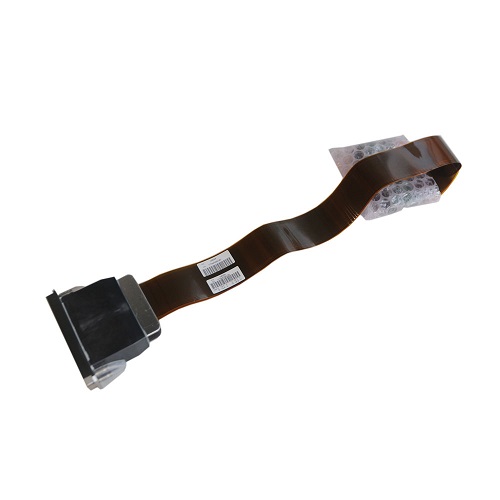

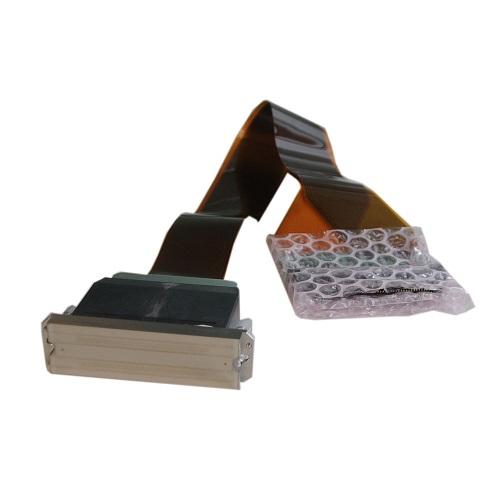

Ricoh Gen5 In 7PL Water-based Printhead MH5421 (Two Color, Short Cable: 248mm) -J36002

Dimensions:89×25×69 mm(excluding cables)
Head materials:SST,Nickel alloy and Epoxy Adhesive
Nozzle plate surface:Coated SST
Number of nozzles:4x320 nozzles
Nozzle spacing:0.1693 mm
Nozzle density:up to 600 npi
Piezo yype:D33 Stacked PZT
Temperature control:Integrated Heater and Thermistor
Operator temperature range:Up to 80°C
Native drop volume:7 pl
Drop volume range:7-35 pl
Drop velocity:7 m/s
Jetting frequency:Up to 60 kHZ
Ink compatibility:Water Inks
Life:100 billion actuations per nozzle
$1,930.00

GET A QUOTE

Description

Ricoh Cen5/7PL Water-based Printhead,MH5421(500mm,Two Color,Long Cable)-J36002

Manufacturer: Ricoh

The new number is J36004 replacing N221414D/221414F/221414K/221414P/221414C

Description:

This Ricoh CEN5 water printhead is suitable for a range of water-based printers.It supports up to 2 colours and has a total of of1.280 nozzles.

This Ricoh GEN5 is 500mm long in total (head body+cable+connectors). Head cable is 400mm long.

Specifications:

Printer Compatibility:

ATP Color DFP1320,DPP740 G5

DIPJ4

Hollanders ColorBooster 230,250

MTEX Turbo Sub

Application: work for all Chinese printers like below:
ATP Color DFP1320, DPP740 G5
DIP J4
Hollanders ColorBooster 230, 250
MTEX Turbo Sub

Compatible Ink for this head: Water-based ink

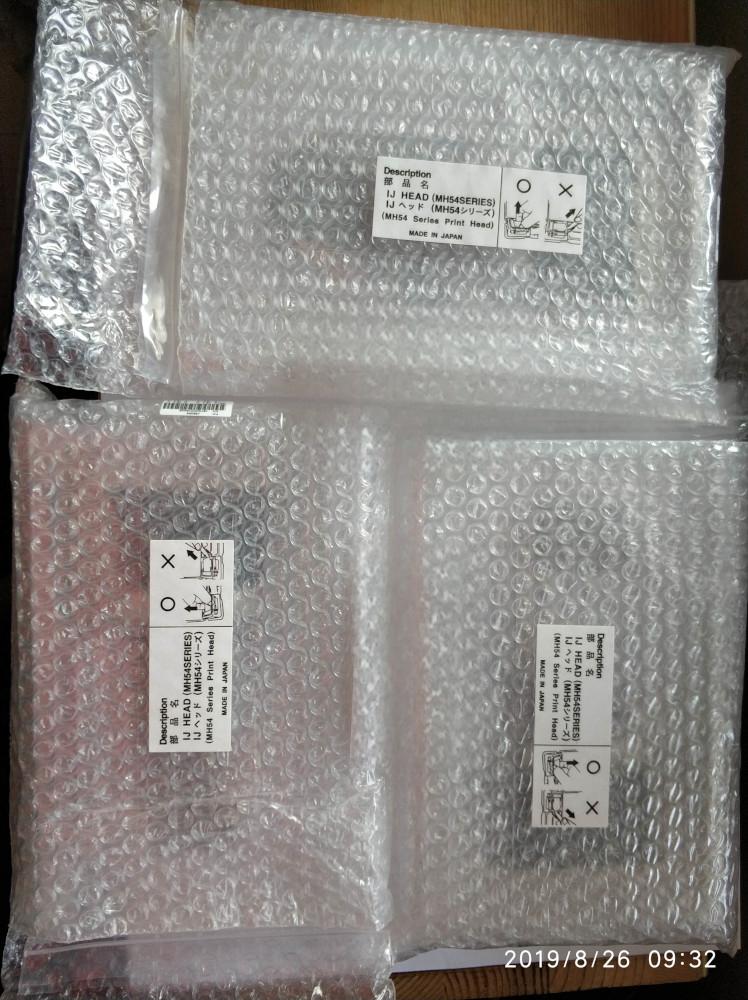

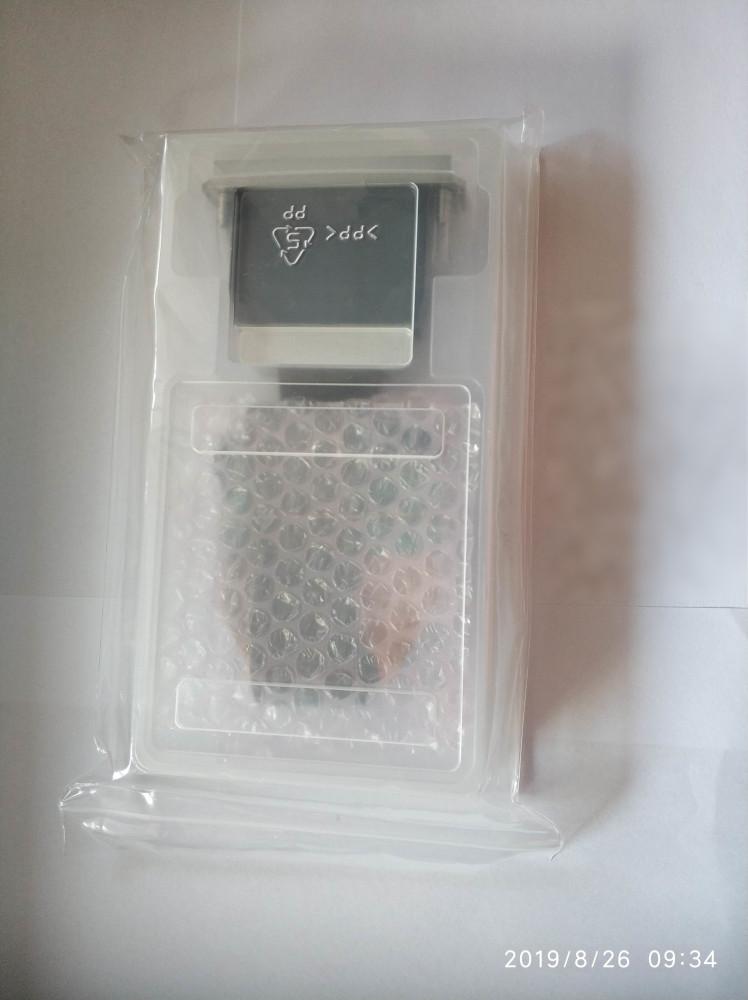

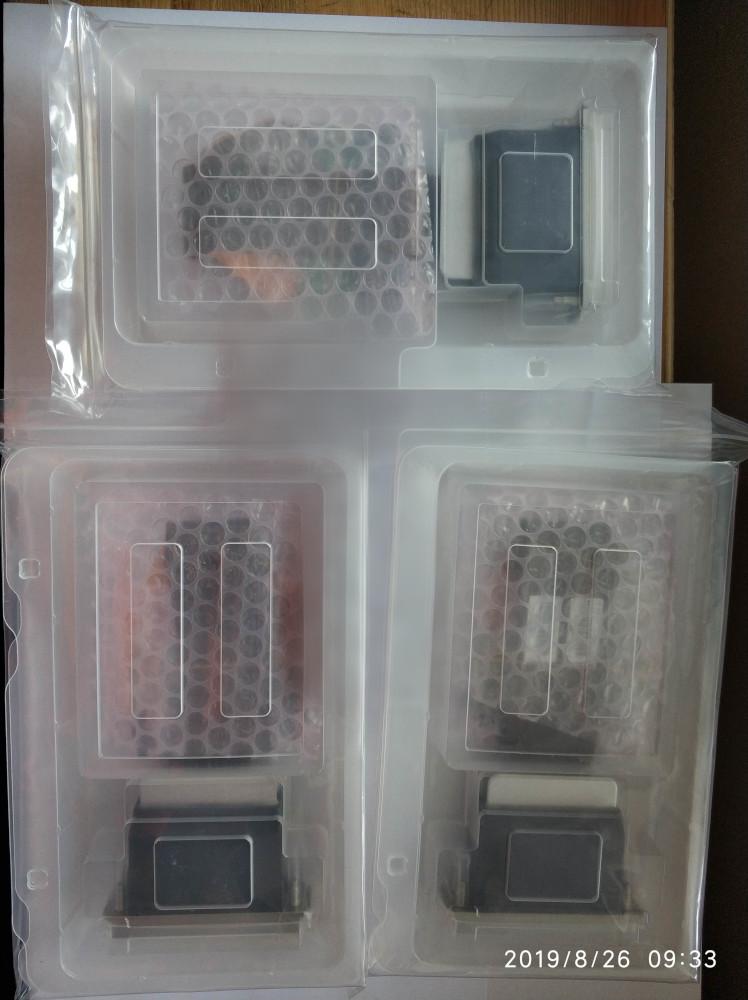

Photo about the packing and the detail of this printhead from our Delivery records:

Ricoh Gen5 In 7PL Water-based Printhead MH5421 (Two Color, Short Cable: 248mm) -J36002

Ricoh Gen5 In 7PL Water-based Printhead MH5421 (Two Color, Short Cable: 248mm) -J36002
