Product Specifications

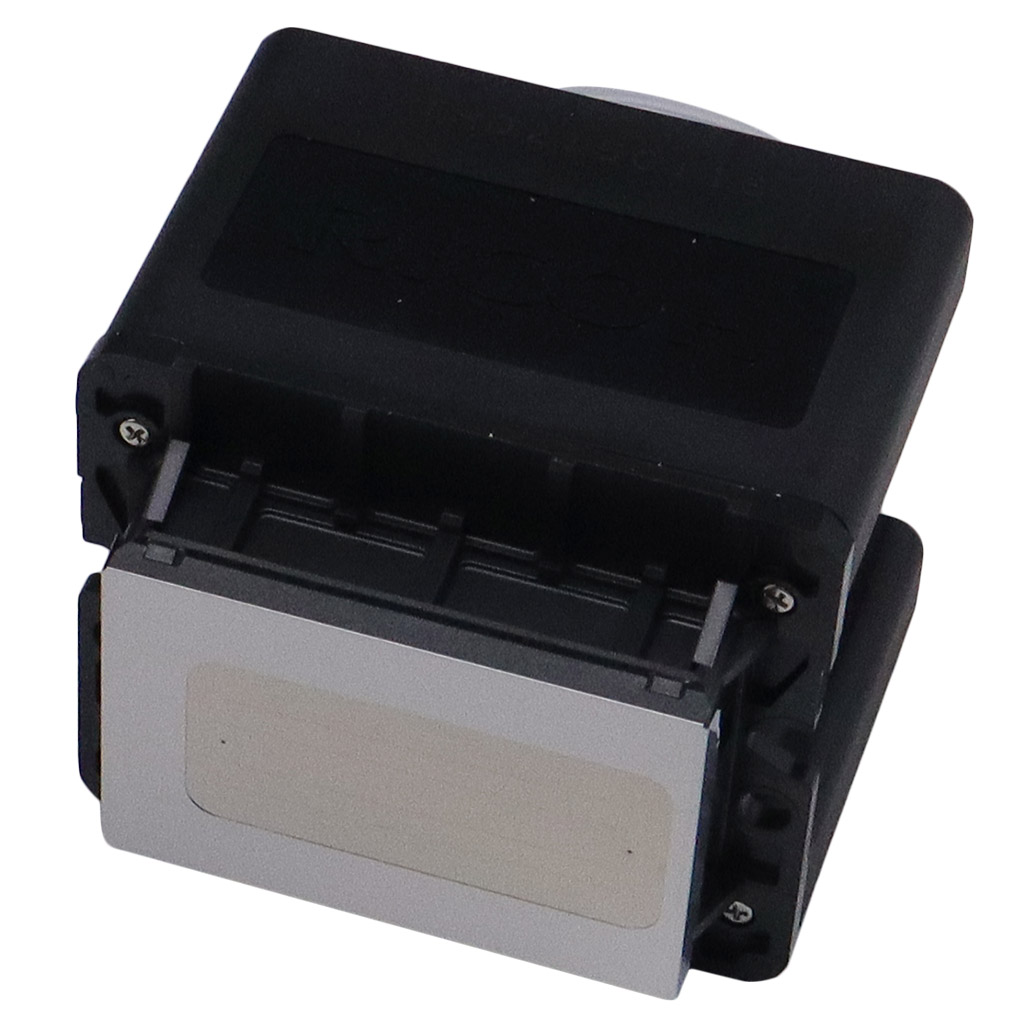

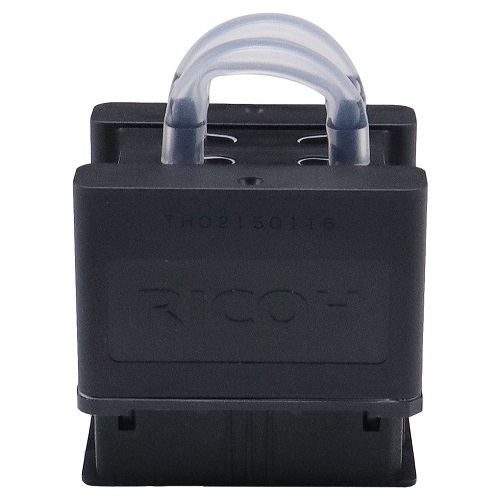

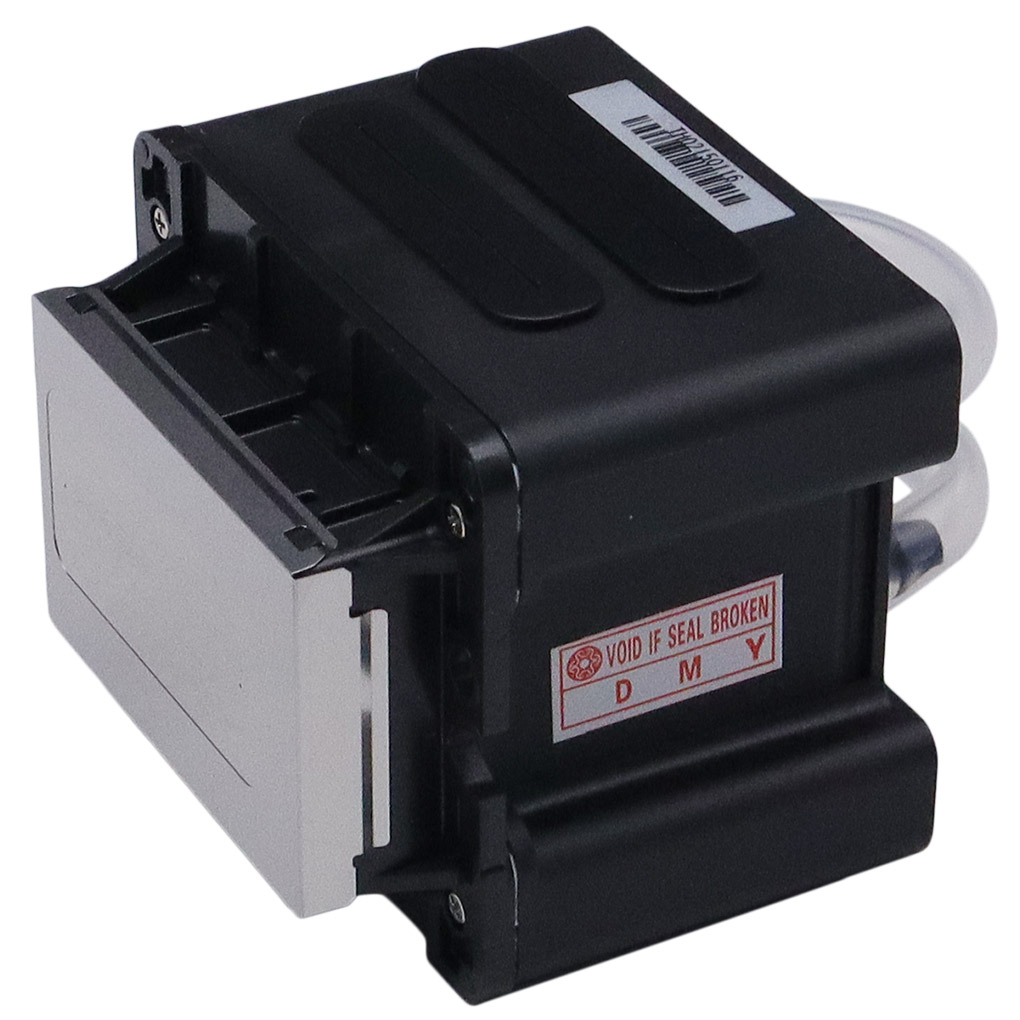

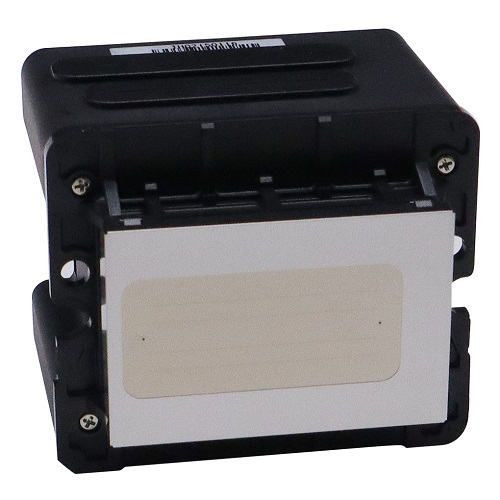

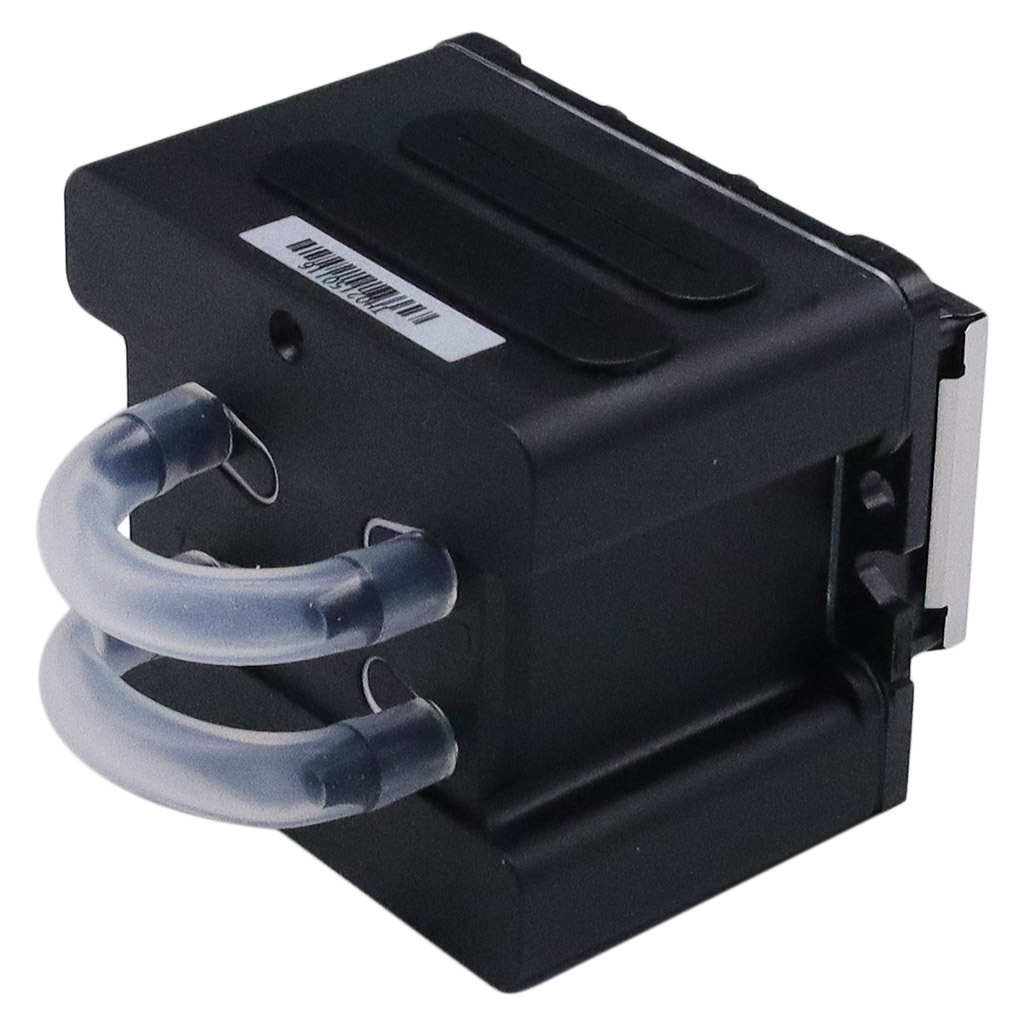

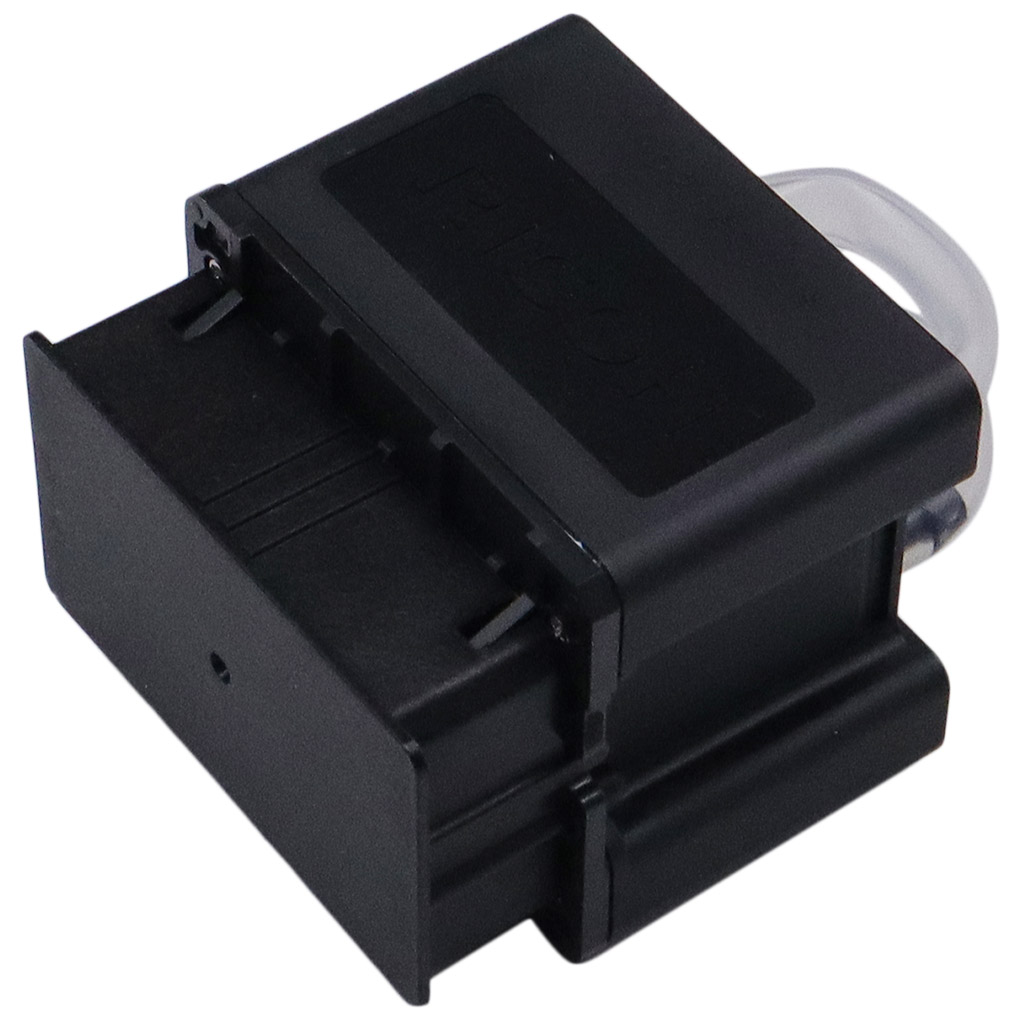

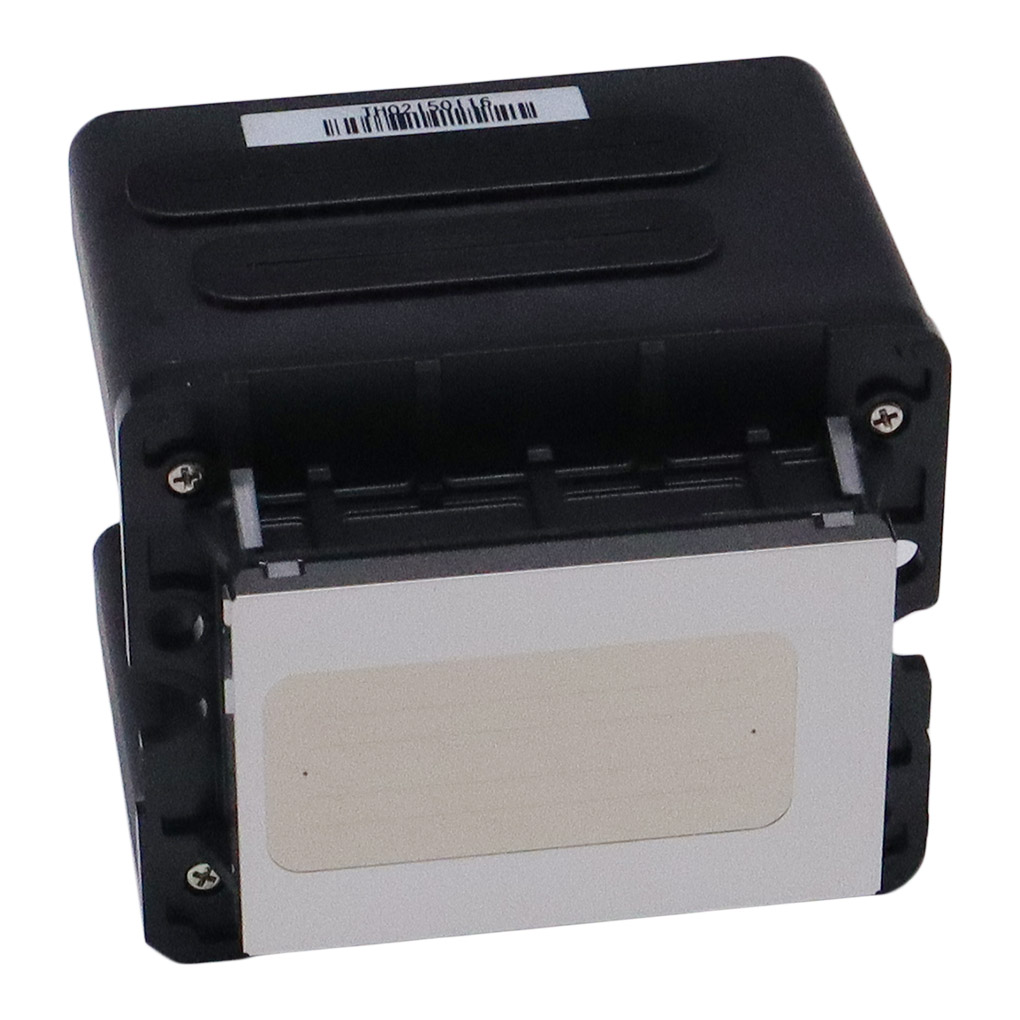

Product name | RICOH TH5241 |
Method | Thin-film piezoelectric transducer with bend mode |
Print Width | 27.1 mm (1.06’’) |
Number of nozzles | 1280(320 nozzles/row x 4 rows, staggered) |
Nozzle Resolution | 600npi(2 colors, 1 color) 300npi(4 colors) |
Nozzle spacing(Row to row distance) | A:2.286mm B:6.095mm |
Compatible ink | UV, Solvent, Aqueous, Others |
Total printhead dimensions | W:52.7mm, D:45.8mm, H:55.4mm |
Weight | 63g |
Max. Number of color inks | 4 colors |
Operating temperature range | 40℃ |
Temperature control | Integrated thermistor, without heater |
Firing frequency | 40kHz (2 levels) 24kHz (4 levels) |
Grayscale | 4 levels |
Drop volume | 3pl(Single drop) 3~12pl (max 21pl)(Multi drop) |
Viscosity range | 7mPa/s |
Surface tension | 27±5mN/m |
Description:
By using MEMS technology, Ricoh's unique design means the RICOH TH5241 is a compact Printhead with 320 x 4 rows of 1,280 nozzles*. In addition, high-definition printing of up to 1,200 dpi can be achieved by jetting fine droplets.
Highly versatile
RICOH TH5241 is compatible with UV, Solvent and Aqueous based inks. This Inkjet Printhead can be used for various applications.
Printer Compatibility:
Mtutech 360 Rotary UV
Applications:
Sign-Graphics
Label
Textiles
DTG (Direct to Garment)
DTS (Direct to Shape)
Remarks:
Original
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
