Epson S3200-A1 Aqueous Printhead

Epson S3200-A1 Aqueous Printhead

$3,062.00 - 3,125.00

Description

Product Specifications

Product name	S3200-A1
Ink Type	Aqueous
Type	PrecisionCore MicroTFP printhead

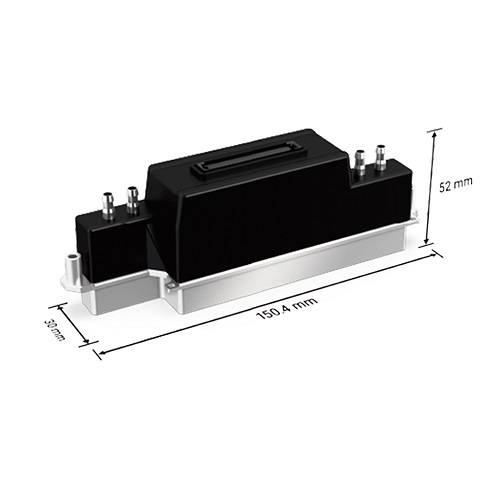

Width x Depth x Height	150.4 x 30 x 52mm
Weight	235g
Number of nozzle	3200(Net:2840)
Nozzle pitch/nozzle row	1/300 inch
Nozzle rows	2 rows
Nozzle Resolution	300 npi/row, 600 nip/2 rows
Max. Number of color inks	2 colors
Effective print width	120.2 mm(4.73 inches)
Viscosity range	3-4 mPa/s
Ink recirculation	Common channel recirculation
Manufacture	Epson
Positioning Mechanism	Reference hole

Description:

PrecisionCore Technology
①. MEMS manufacturing and thin film piezo element can realize high precision and high density (600 npi /2 rows of nozzles). Contributes to compact, high speed, high quality, and high image quality.
②. Precision made of Epson unique MEMS nozzles and an ink flow path ensure the per fectly round ink droplets are placed accurately and consistently.
2. Support for grey scale
Epson's unique Variable Sized Droplet Technology(VSDT) delivers smooth gradation by freely control toeject the droplet volume.
3. High resolution
Ink ejection of up to 4 colors realize with high resolution(600 dpi/color). In addition to the I1600
has also been added to the lineup in order to meet thevarious customer need.
4. High durability
PrecisionCore Print Head has proven high durability and extended service life by Epson's industrial printers.

Remarks:

Original

Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.

3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
