Product Specifications
Ink Type | Water-based |
Type | PrecisionCore MicroTFP printhead |

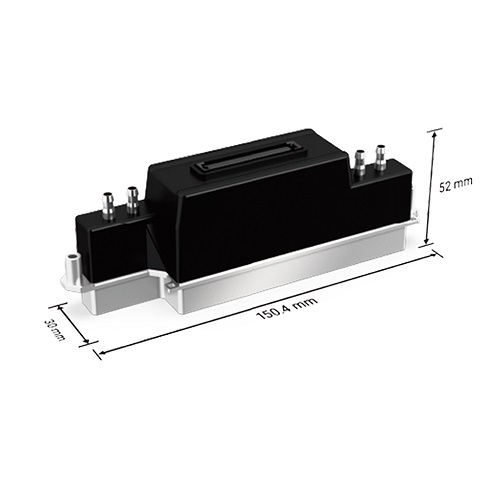

Width x Depth x Height | 150.4 x 30 x 52mmI(5.92 x 1.18 x 2 inch) |
Weight | 235g |
Number of nozzles | 3200(Net:2840) |
Nozzle pitch/nozzle row | 1/300 inch |
Nozzle rows | 2 rows |
Nozzle Resolution | 600 nip(300npi x 2 rows) |
Max. Number of color inks | 2 colors |
Effective print width | 120.2 mm(4.73 inches) |
Droplet ejection performance | |
Viscosity range | 5.0 - 7.0 mpa |
Binary | 9 pl at 48kH |
4 levels greyscale | 5.8,9.8,18.0 pl at 24 kHz |
Description:
Epson S3200-A3 Water-Based Printhead, The wide printing width of 120.2 mm (4.73 inches) is excellent for high production. Minimum-pass printing is possible because there is very little variation between nozzles. Highly scalable S-shape design can realize space-saving for increasing productivity and multi-colours. Contributes to miniaturize the printer.
Remarks:
Original
Attention:
1. The printhead is required to be installed by professional persons.
2. Due to the nature of Printer Parts and the many factors that go into installing them, we do not accept returns or give refunds on electronic or service parts. Once the package is delivered, it is the customer's responsibility to check the package for damage.
3. Please seriously pay attention on information of printhead model while purchasing from us. Once received your item, please inspect if the printhead matches up with the model you required.If you have any problems, it is very important that contact us as soon as possible before installing it onto machine. Please be aware that we don't accept any return and refund once the printhead is installed on the machine.
