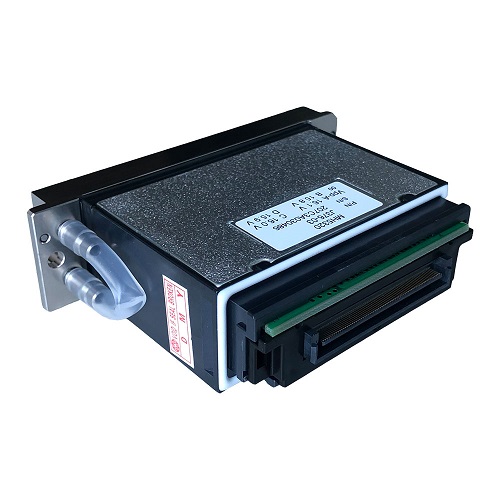

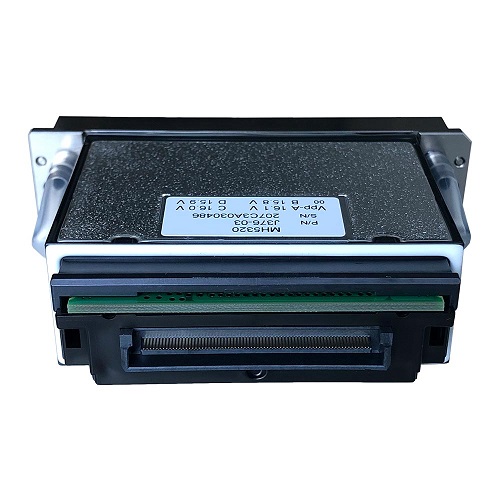

Ricoh MH5320 Printhead, (Two Colors, 5PL) - J376-03

Specifications:
Method: Piston pu sher with metallic diaphragm plate
Print Width: 54.1 mm(2.1")
Dimensions:89(W)x66.3 (D)x24.51 mm(H)
Weight: 228g (including 45c cable)
Head materials: SST, Nickel alloy and Epoxy Adhesive
Nozzle plate surface: Coated SST
Number of nozzles: 4 x 320 nozzles
Nozzle spacing: 0.1693 mm
Nozzle spacing (Row to row distance): A: 1.101mm B: 11.8411 mm
Compatible ink (UV, Solvent. Asueous, Others.
Nozzle density: up to 600 npi
Max.number of color inks: 2 colors
Temperature control: Integrated Heater and Thermistol
Operator temperature range: 60°C
Drop volume: Binary mode: 5pl/Grey-scale mode: 5-15p
Jetting frequency: 50kHz (3 levels): 40kHz (4 levels)
Grey-scale: 4 levels
Viscosity ranfe:10~12mPa·s
Surface tension: 28-35mN/m
Ink Port: Yes
$1,968.00 - 2,009.00

GET A QUOTE

Description

Ricoh MH5320 Printhead, (Two Colors, 5PL)-J376-03

Manufacture: Ricoh

In addition to high durability by stainless steel housing, ink compatibility are enhanced。

This inkiet head is use for various application by high-definition and high-productivity. And this head is compatible with UV Solvent and Aqueous-based inks.

Description:

The service life of the MH5320 is more than double that of the MH5421 that preceded it. This is the 2 colour head.

A minimized 5pl droplet size and improved jetting accuracy yields excellent print quality without graininess, With 1,280 nozzles, this head achieves high-resolution 600dpi printing. Greyscale features a maximum frequency of 50kHz, allowing for increased productivity.

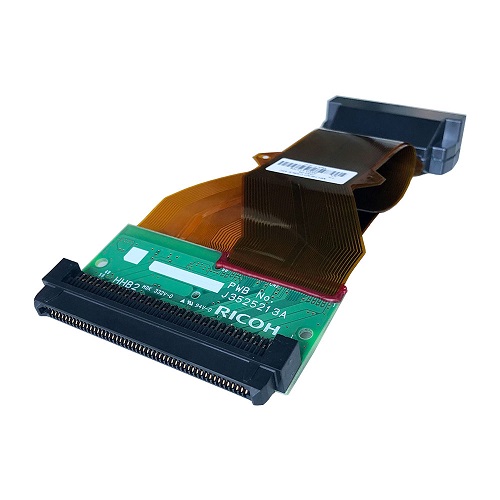

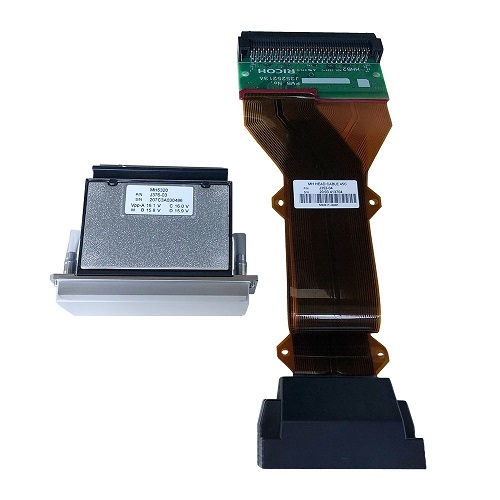

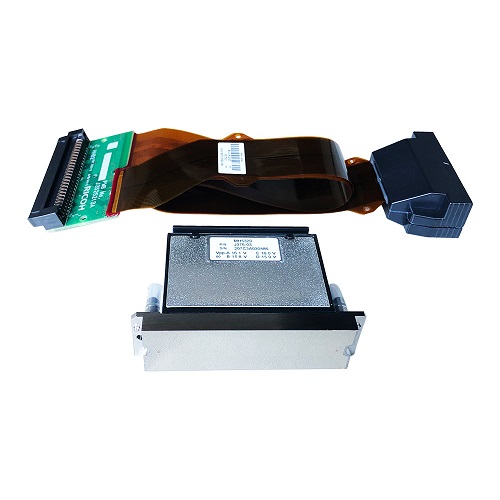

This printhead has a cable of 447mm and a total length including the printhead of 500mm. This printhead is made of the two skus: J376-03 (head) and J352-04 (cable 445mm)

We recommend to change the head cables when installing a new printhead.

Printer compatibility:

M5000

SG6 2030

MC2512RV

Hollanders Colorbooster 320

PrintJet HYB2000
